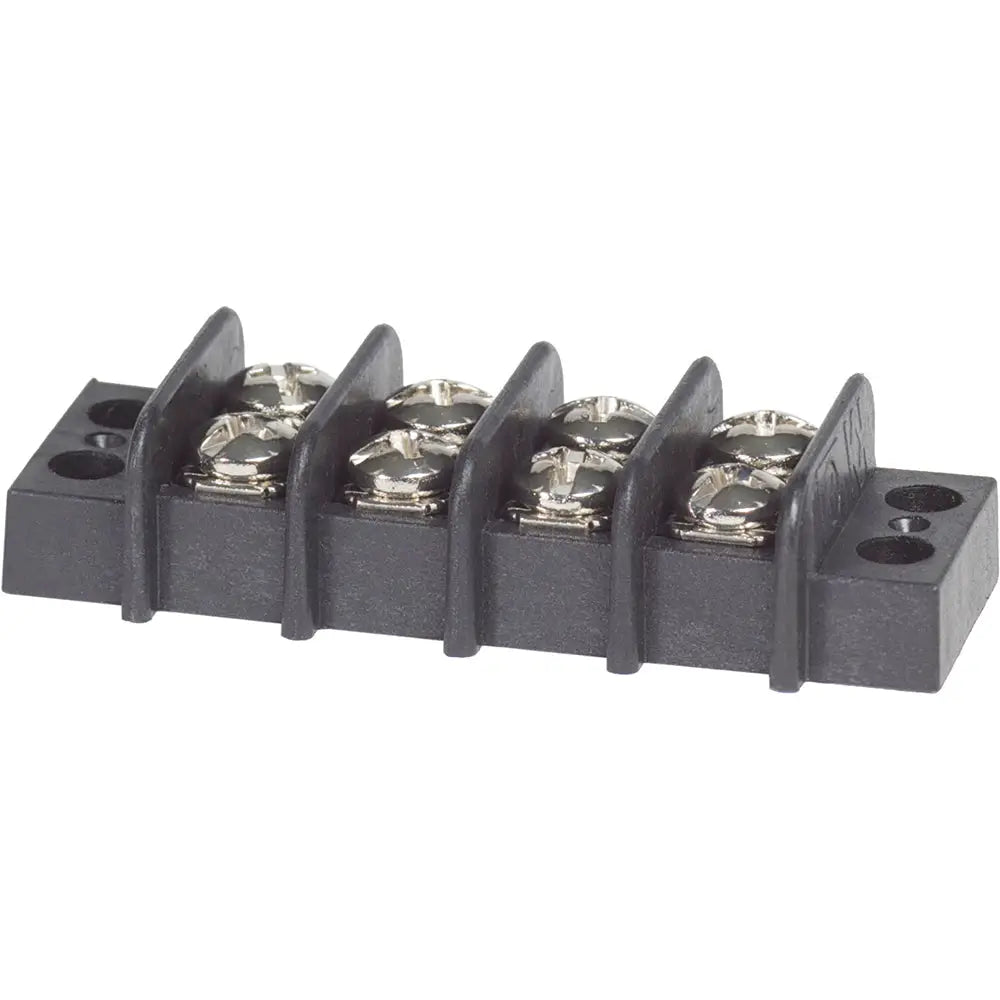

Blue Sea 2404 Terminal Black 20AMP - 4 Circuit [2404]

Regular price
$6.79
Regular price
$7.99
Sale price
$6.79
Shipping calculated at checkout.

CWR-14259

    Visa Mastercard American Express Discover PayPal Apple Pay Shop Pay
    Free Shipping Orders over $149*
    Secure Checkout SSL Encrypted
    Manufacturer Warranty Full Warranty Included

    Questions? Call, text or email us.

    925-222-LOTZ (5689)  ·  shop@lotzoutdoors.com

    Terminal block for organizing four separate 20A circuits in marine, automotive, RV, and other low-voltage electrical installations, with a closed back that insulates the terminals from the mounting surface.

    Each screw pair forms one isolated circuit, giving installers a clear way to terminate and organize wiring. The 20A continuous rating supports appropriately sized circuit connections, while the closed-back construction helps prevent contact between energized terminals and the mounting surface. Optional jumpers can connect terminals to create common circuits.

    • Four isolated circuits: Provides separate termination points for organized multi-circuit wiring.
    • 20A continuous rating: Supports circuit connections rated up to 20A when used with compatible wiring and protection.
    • Closed-back design: Insulates the power connections from the mounting surface to help reduce accidental contact.
    • Jumper-compatible layout: Allows terminals to be linked into common circuits when the installation requires shared distribution.
    • Nickel-plated brass bus material: Provides conductive terminal surfaces suited to marine and vehicle electrical assemblies.
    • Compact terminal-block format: Fits neatly into panels, junction areas, and custom wiring assemblies.

    The Blue Sea Systems 2404 is a four-circuit terminal block for structured electrical terminations in boats, vehicles, RVs, and other equipment. Each screw pair operates as an individual isolated circuit, helping separate connections and simplify troubleshooting during installation or service.

    Its closed-back design insulates the energized portion from the mounting surface, making it suitable for surface-mounted electrical layouts where connection organization and separation matter. The block carries a 20A continuous rating per circuit and supports maximum voltage up to 300V AC/DC.

    Use compatible jumpers when multiple positions need to share a common circuit. The 2404 accepts M3.5 terminal screws and uses nickel-plated brass for the bus material, with a UL 94 V-0 polycarbonate base. It works well for auxiliary circuits, panel wiring, junction points, lighting connections, and other properly protected electrical installations.

    Specification Detail
    Brand Blue Sea Systems
    Model 2404
    Product type Terminal block
    Circuits 4
    Continuous rating 20A
    Maximum voltage 300V AC/DC
    Base material UL 94 V-0 polycarbonate
    Bus material Nickel-plated brass
    Terminal screws M3.5
    Overall length 2.17 in (55.12 mm)
    SKU CWR-14259
    UPC 632085024048
    • What is the Blue Sea Systems 2404 used for?
      It organizes and terminates four separate electrical circuits in marine, automotive, RV, and similar wiring systems.
    • How many circuits does this terminal block provide?
      It provides four circuits, with each screw pair serving as one isolated circuit.
    • What is the current rating?
      Each circuit has a 20A continuous rating when installed with suitable wiring and circuit protection.
    • Can the circuits be connected together?
      Yes. Compatible jumpers can connect terminals to create common circuits.
    • Does the product include jumpers?
      The terminal block supports optional jumpers, but jumpers are not listed as included with the product.
