Description

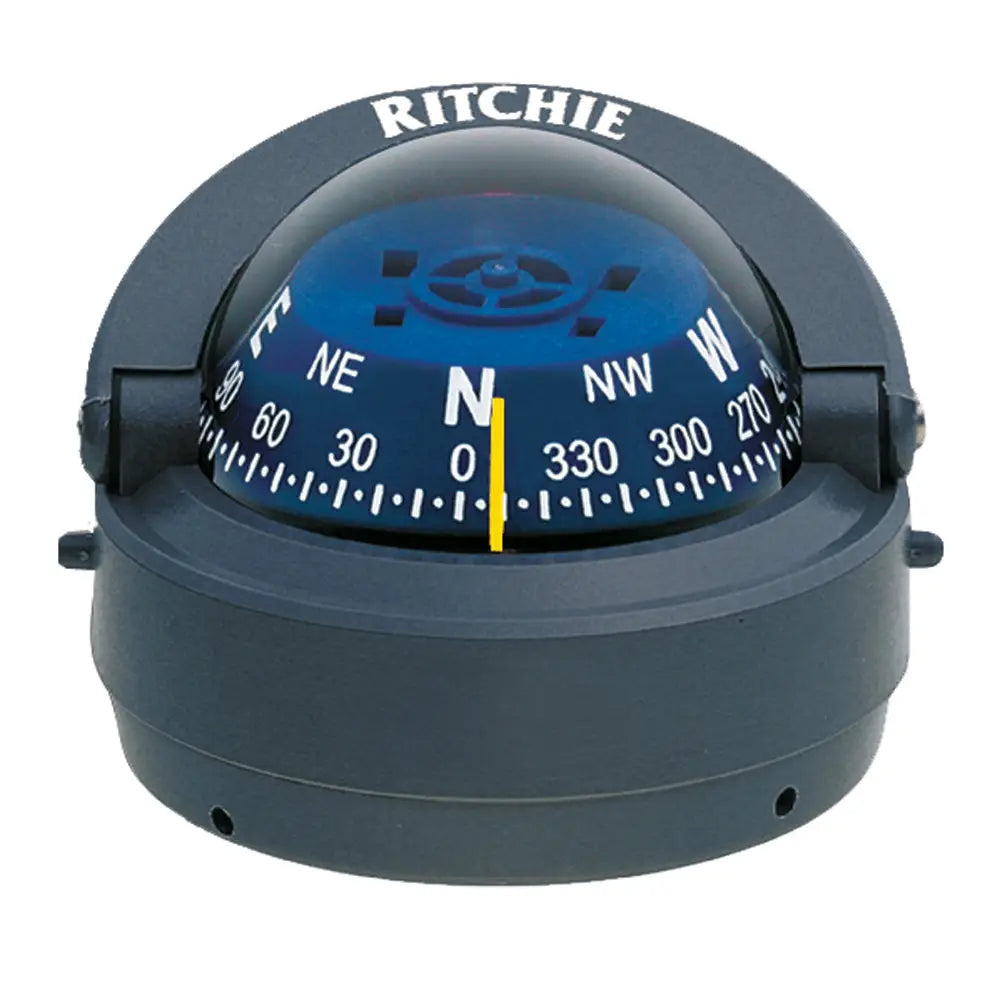

Explorer Compass
Features:
- 2 3/4″ (70 mm) Easy to Read Direct Reading Dial
- Compact Low-Profile Design
- Quick Push-Button Removal of Compass Module for Storage and Security
- Choice of Colors
- Internal Green Night Illumination
- Built-in Compensators to Easily Adjust for Deviation
- Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement
- Powerful DirectiveForce Magnets for Fast Heading Lock-on
- Movable Sun Shield
- High Temperature Composite Construction for Extended Operating Range
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 1lb (454g)
Notes:
All compasses come standard with 12v lighting. 24v lighting option is available. Some custom built OEM models may have different lighting.
Specifications:
- Read: Front
- Mounting Style: Surface
- Backlight: Yes
- Lubber Lines: Yes

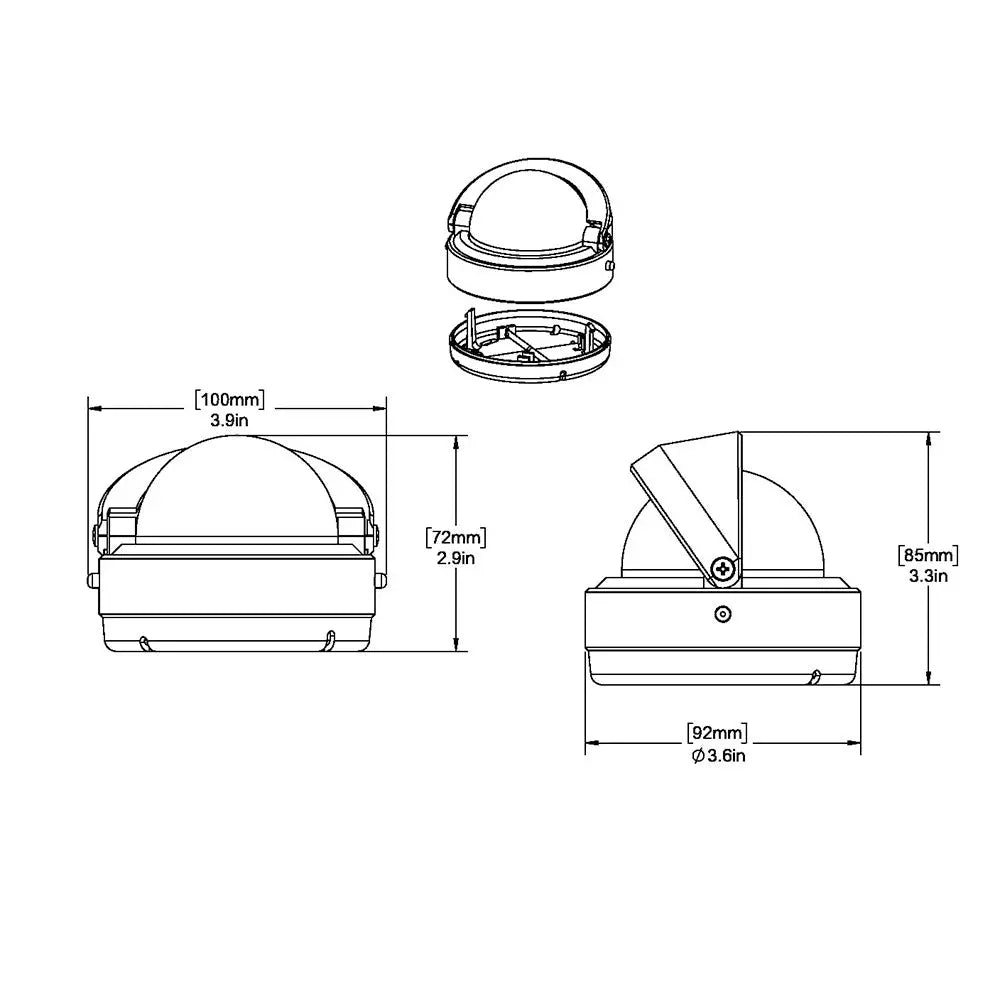

- Box Dimensions: 4"H x 5"W x 5"L WT: 0.8 lbs
- UPC: 010342160454
Quick Guide (pdf)Owner's Manual (pdf)
