    HR Quick Release Snap Shackle With Large Bail-110mm Length - 4-21/64"

    Features:

    • HR forged (17.4 PH) quick-release snap shackle with large bail
    • The opening is made by pulling the lanyard
    • Perfect to attach several lines (spinnaker sheets...)
    • Outstanding working and breaking loads
    • Free rotation of the snap shackle thanks to the swivel

    Applications:

    • For spinnaker operations
    • Perfect to attach several lines: spinnaker sheets...

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 3520 / (kg) 1600
    • Breaking load: (lb) 6610 / (kg) 3000
    • Weight: (lb) 0.353 / (g) 160

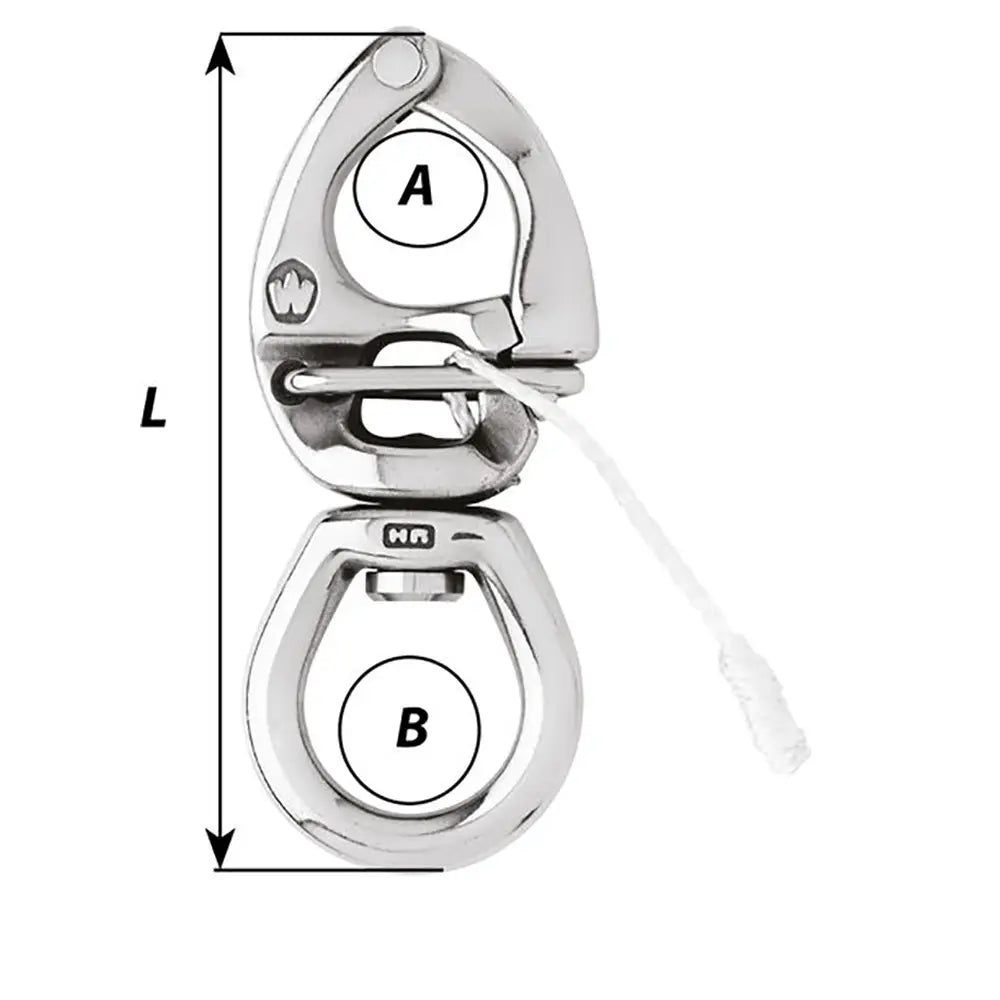

    Dimensions:

    • A: (inch) 25/32" / (mm) 20
    • B: (inch) 1 3/64" / (mm) 26.5
    • Length: (inch) 4 21/64" / (mm) 110

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
