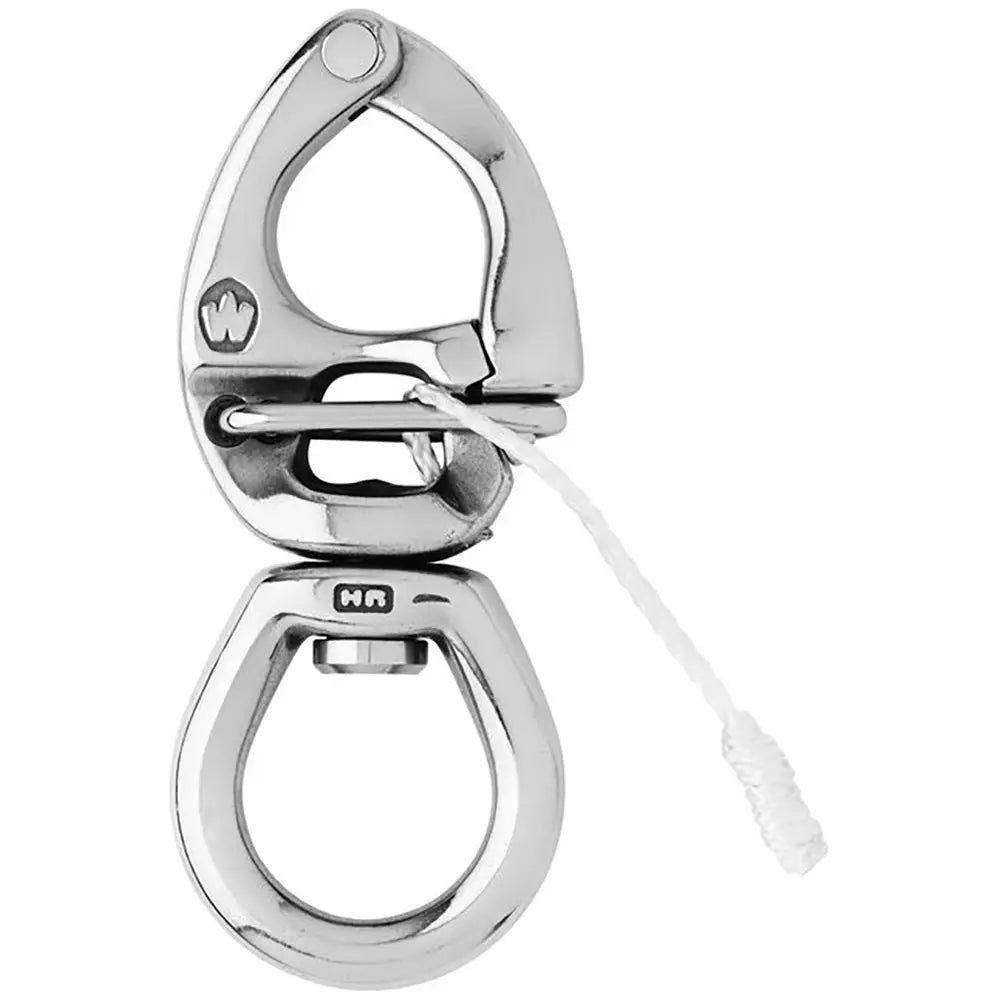

    HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"

    Features:

    • HR forged (17.4 PH) quick-release snap shackle with large bail
    • The opening is made by pulling the lanyard
    • Perfect to attach several lines (spinnaker sheets...)
    • Outstanding working and breaking loads
    • Free rotation of the snap shackle thanks to the swivel

    Applications:

    • For spinnaker operations
    • Perfect to attach several lines: spinnaker sheets...

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 6170 / (kg) 2800
    • Breaking load: (lb) 13880 / (kg) 6300
    • Weight: (lb) 0.873 / (g) 396

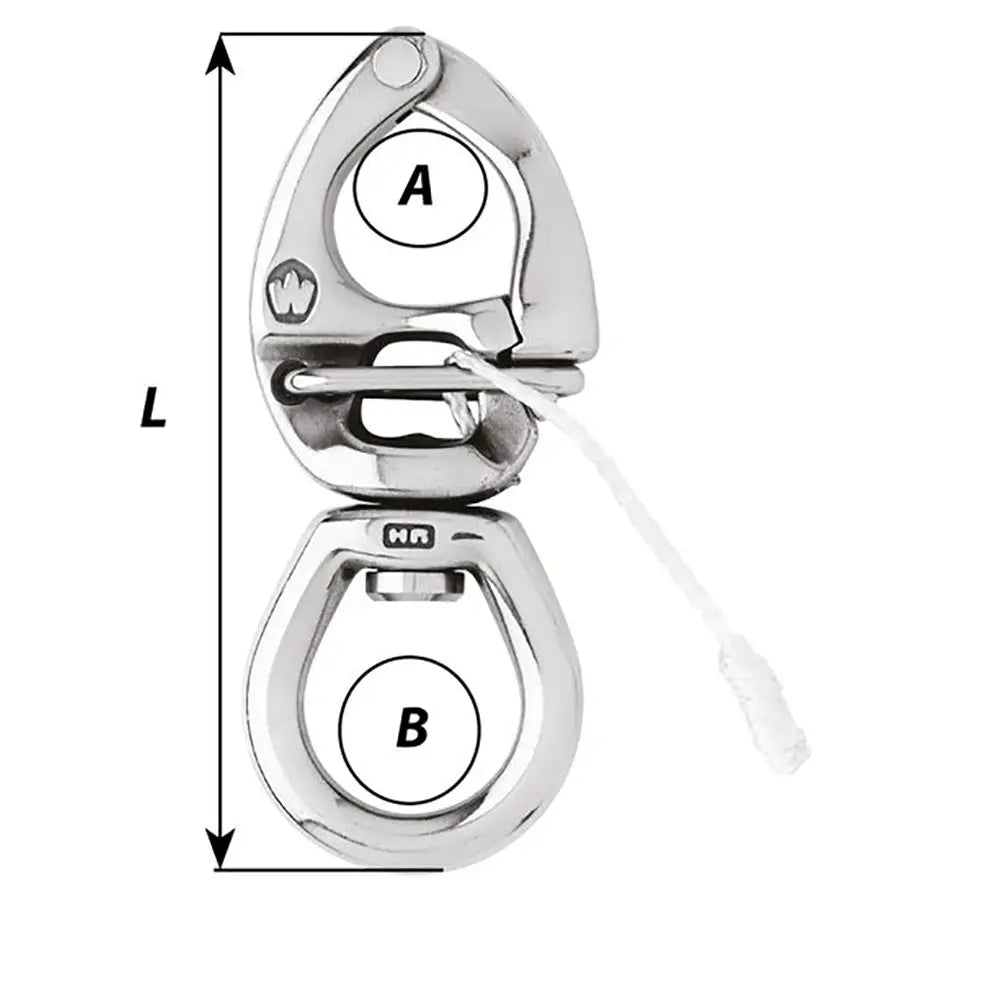

    Dimensions:

    • A: (inch) 1 3/16" / (mm) 30
    • B: (inch) 1 25/64" / (mm) 35.5
    • Length: (inch) 5 45/64" / (mm) 145

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
