    Black Watertight U-Bolt - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"

    Features:

    • Fully drop-forged product with high-quality stainless steel
    • Outstanding working and breaking loads
    • Complete water-tightness thanks to the resistant rubber collar (black color)
    • Easy installation (no need to use a waterproof sealant)
    • Delivered with bolts and counter-plate
    • Max tightening torque: 36 nm

    Applications:

    • Various fastening applications: shrouds, lifelines, blocks…

    Specifications:

    • Materials: 316L stainless steel grade
    • Color: Black
    • Working load: (lb) 7930 / (kg) 3600
    • Breaking load: (lb) 15430 / (kg) 7000
    • Weight: (lb) 0.483 / (g) 219

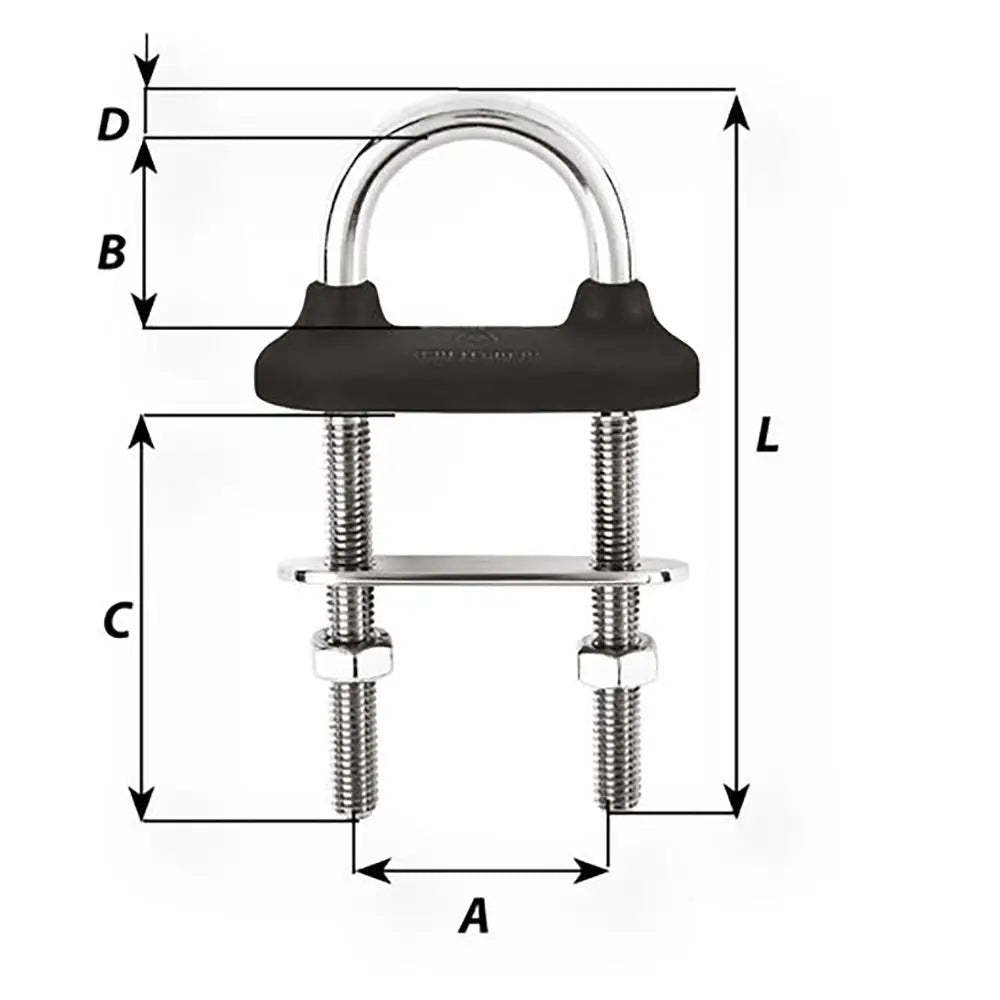

    Dimensions:

    • Length: (inch) 3 35/64" / (mm) 90
    • A: (inch) 1 37/64" / (mm) 40
    • B: (inch) 1 1/32" / (mm) 26
    • C: (inch) 1 49/64" / (mm) 45
    • D diameter: (inch) 25/64" / (mm) 10

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
