Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64" [65361]

$118.70
$139.65
$118.70
Shipping calculated at checkout.
[COUNT] People are currently viewing this product.

    Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64"

    Features:

    • Fully dropforged product with high quality stainless steel
    • Outstanding working and breaking loads
    • Complete water-tightness thanks to the resistant rubber collar (black color)
    • Easy installation (no need to use a waterproof sealant)
    • Delivered with bolts and counter-plate
    • Max tightening torque: 60 Nm

    Applications:

    • Various fastening applications: shrouds, lifelines, blocks…

    Specifications:

    • Materials; 316L stainless steel grade
    • Color: Black
    • Working load: (lb) 14100 / (kg) 6400
    • Breaking load: (lb) 22040 / (kg) 10000
    • Weight: (lb) 0.761 / (g) 345

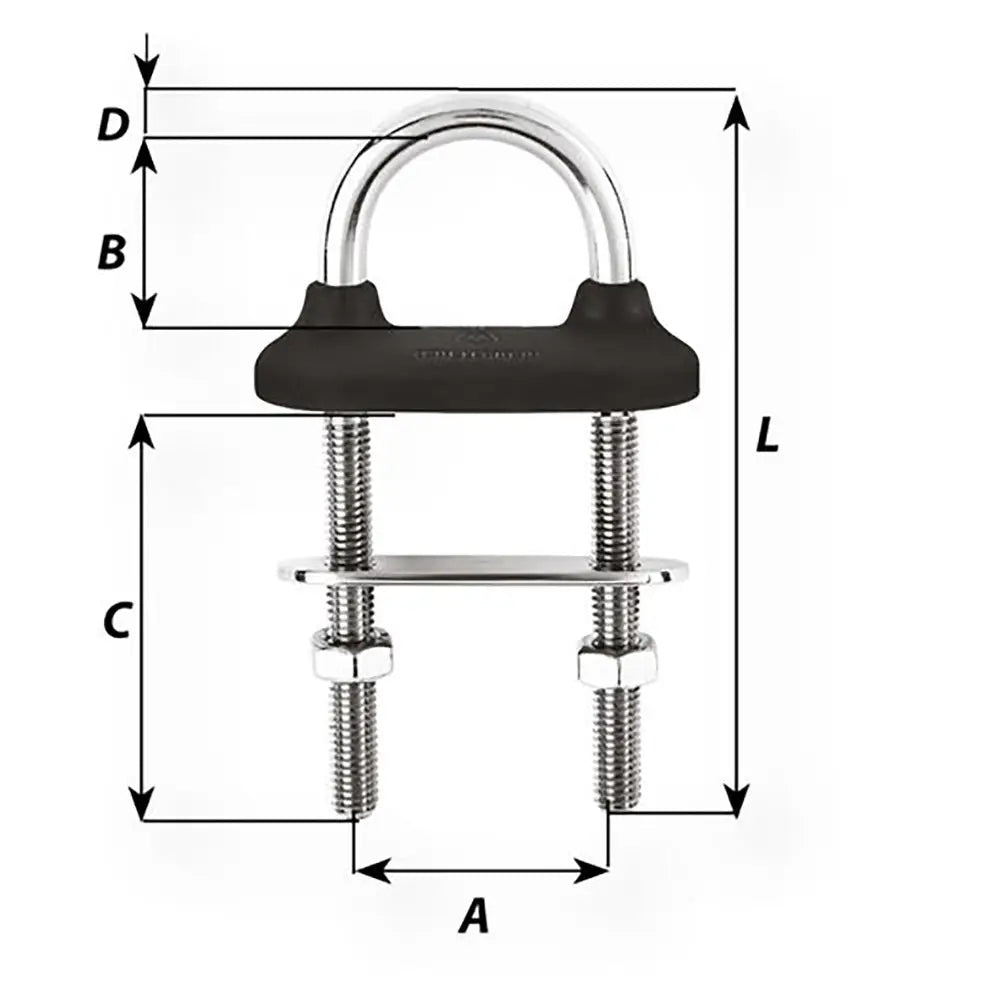

    Dimensions:

    • Length: (inch) 4 21/64" / (mm) 110
    • A: (inch) 1 47/64" / (mm) 44
    • B: (inch) 1 1/16" / (mm) 27
    • C: (inch) 1 31/32" / (mm) 50
    • D diameter: (inch) 15/32" / (mm) 12

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
