Wichard Eye Bolt - M10 x 150mm - Length 100mm [06495]

$77.67
$91.38
$77.67
Shipping calculated at checkout.
[COUNT] People are currently viewing this product.

    Eye Bolt - M10 x 150mm - Length 100mm

    Features:

    • A complete range of single piece forged products for fastenings applications
    • Outstanding working and breaking loads
    • Available in different sizes
    • Max tightening torque: 36 Nm

    Applications:

    • Various fastening applications
    • Towing application
    • Waterskiing lines attachment

    Specifications:

    • Materials: 316L stainless steel grade
    • Working load: (lb) 3520 / (kg) 1600
    • Breaking load: (lb) 5950 / (kg) 2700
    • Weight: (lb) 0.216 / (g) 98

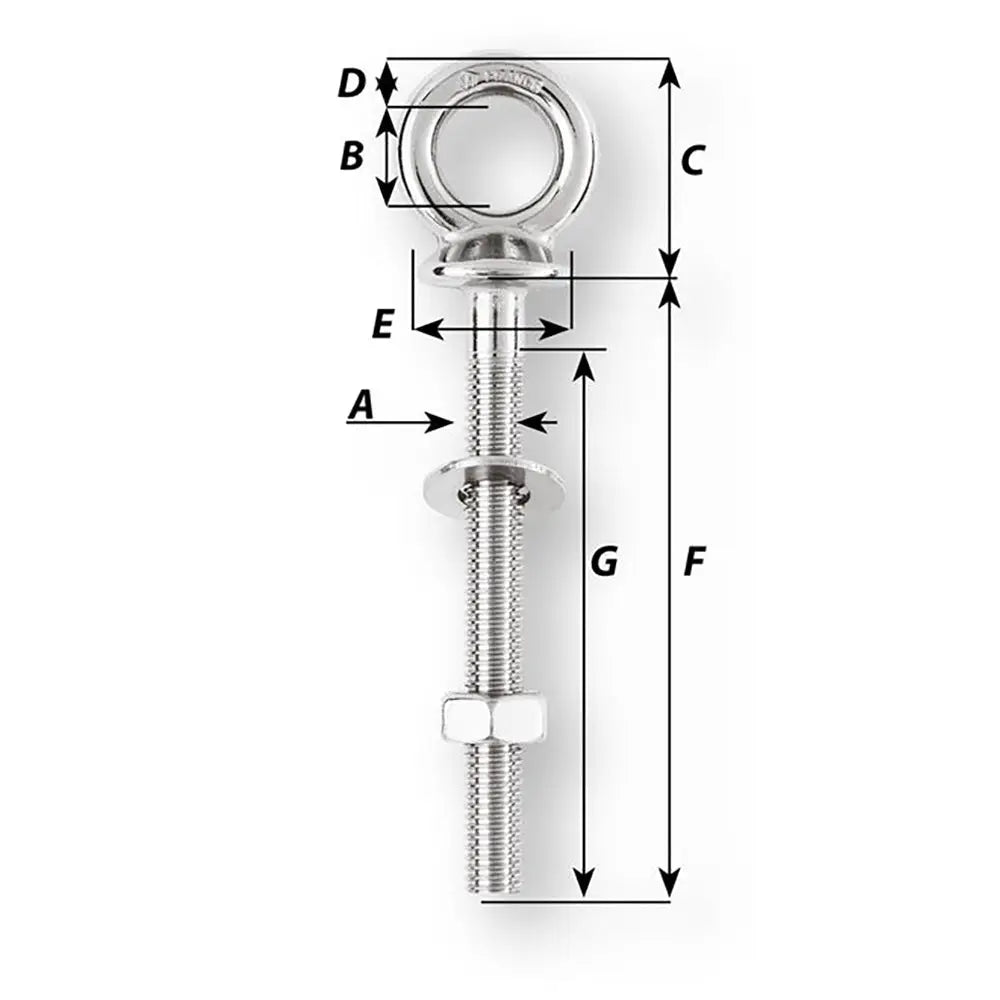

    Dimensions:

    • A: (mm) M10 x 150
    • B: (inch) 5/8" / (mm) 16
    • C: (inch) 1 27/64" / (mm) 36
    • D: (inch) 9/32" / (mm) 7
    • E: (inch) 63/64" / (mm) 25
    • F: (inch) 3 15/16" / (mm) 100
    • G: (inch) 3 15/32" / (mm) 88

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
