Wichard HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16" [02376]

$169.24
$199.11
$169.24
Shipping calculated at checkout.
[COUNT] People are currently viewing this product.

    HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"

    Features:

    • HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
    • Its flat design allows attaching a webbing
    • Free rotation of the snap shackle thanks to the swivel eye
    • The plunger pin is set captive into the hook and cannot become detached
    • Excellent working and breaking loads
    • Easy to open by pulling the plunger pin (possible to attach a lanyard)

    Applications:

    • Snap shackle applications
    • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 2820 / (kg) 1280
    • Breaking load: (lb) 8480 / (kg) 3850

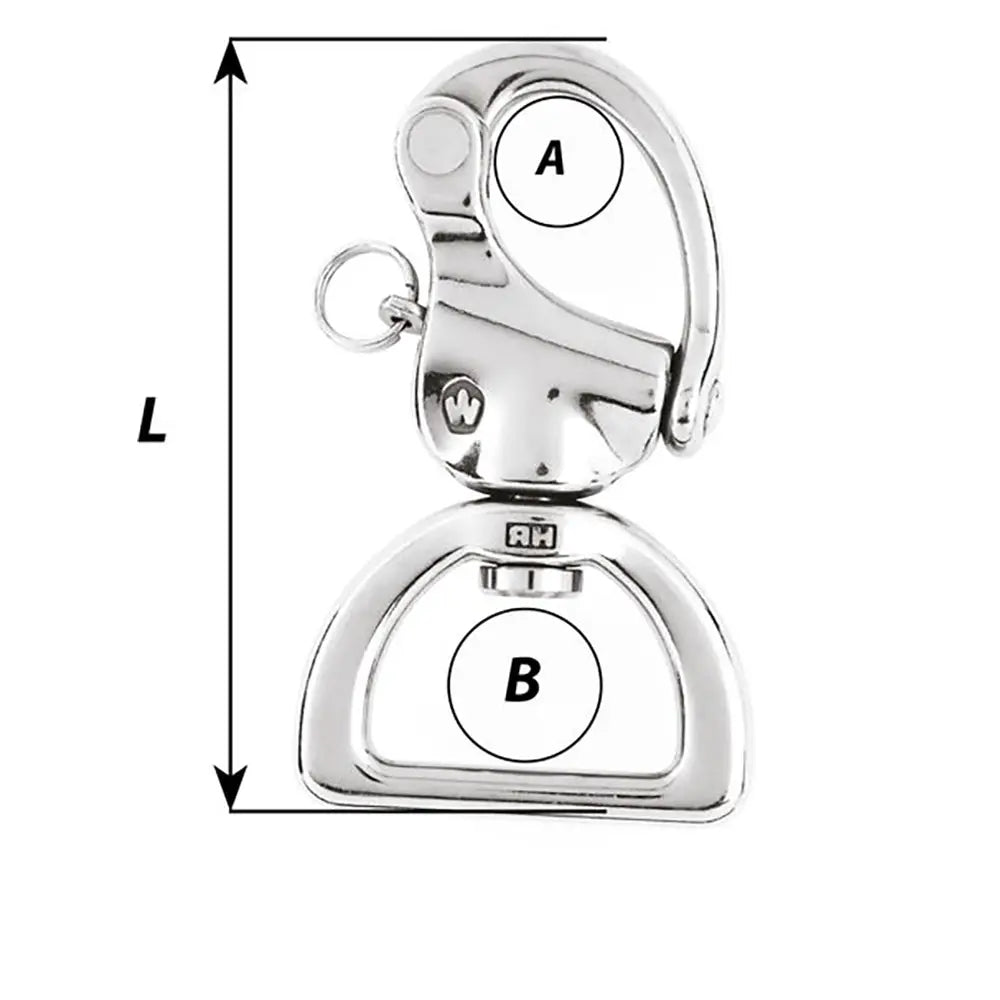

    Dimensions:

    • A: (inch) 53/64" / (mm) 21
    • B: (inch) 1 37/64" / (mm) 40
    • Length: (inch) 3 15/16" / (mm) 100

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.  WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
