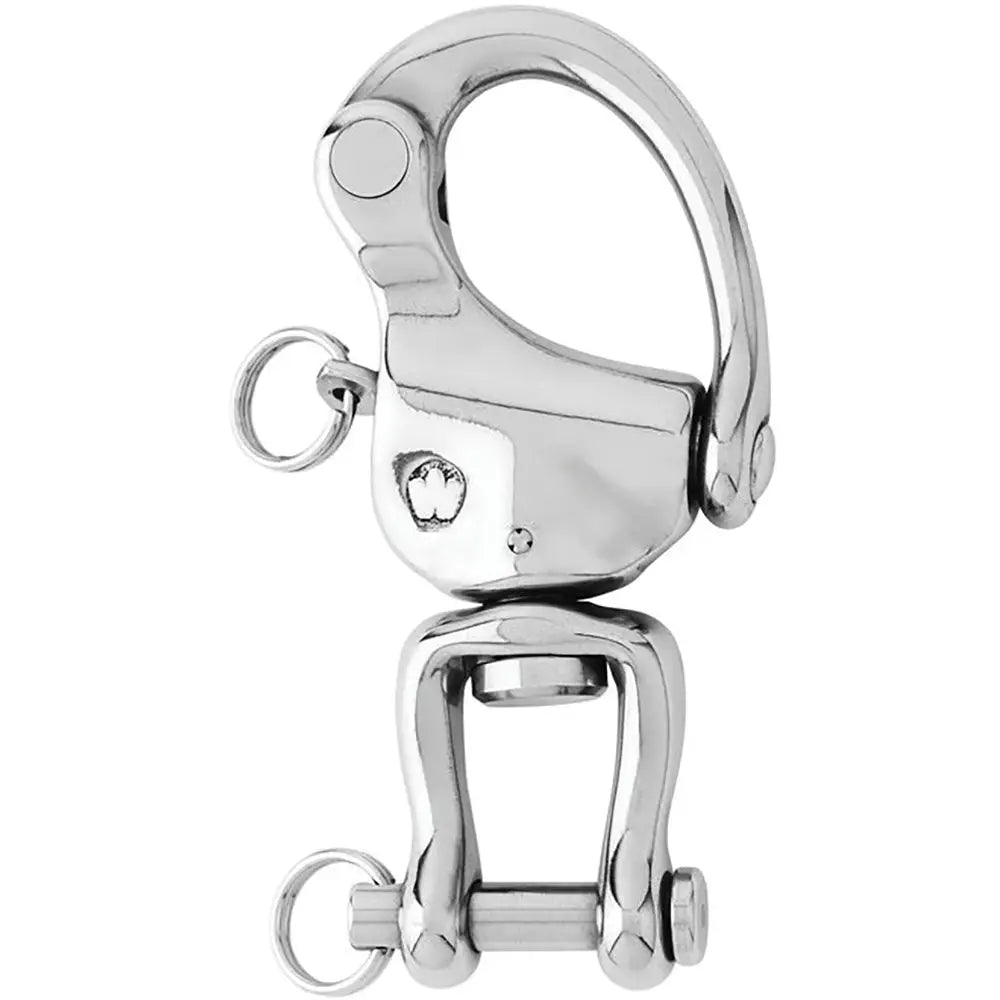

Wichard HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32" [02478]

$253.35
$298.06
$253.35
Shipping calculated at checkout.
[COUNT] People are currently viewing this product.

    HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"

    Features:

    • HR Forged snap shackle (Grade 17.4 PH stainless steel) with clevis pin swivel
    • Free rotation of the snap shackle thanks to the swivel eye
    • The plunger pin is set captive into the hook and cannot become detached
    • Excellent working and breaking loads
    • Easy to open by pulling the plunger pin (possible to attach a lanyard)

    Applications:

    • Snap shackle applications

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 5290 / (kg) 2400
    • Breaking load: (lb) 15430 / (kg) 7000
    • Weight: (lb) 0.919 / (g) 417

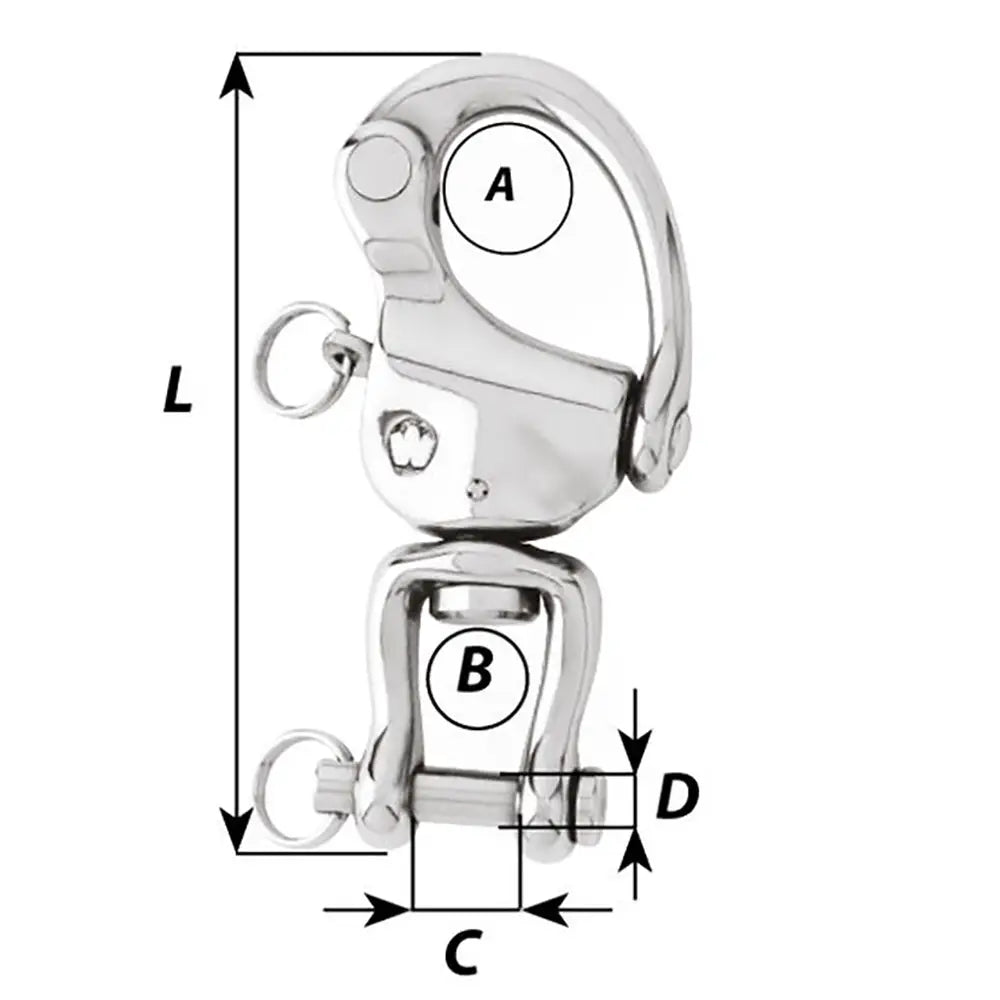

    Dimensions:

    • A: (inch) 1 1/32" / (mm) 26
    • B: (inch) 1 1/16" / (mm) 27
    • C: (inch) 45/64" / (mm) 18
    • D diameter: (inch) 7/16" / (mm) 11
    • Length: (inch) 4 23/32" / (mm) 120

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
