Wichard U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4-21/64" [06525]

$61.47
$72.32
$61.47
Shipping calculated at checkout.
[COUNT] People are currently viewing this product.

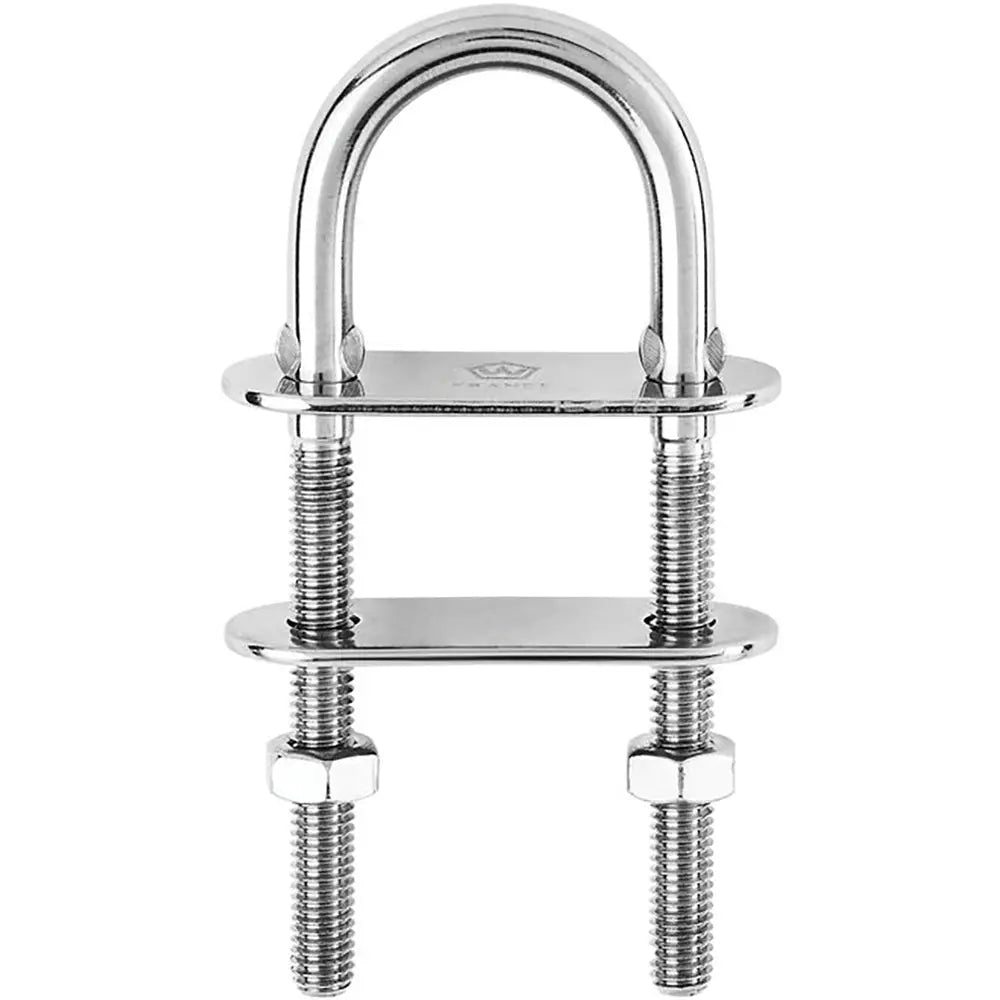

    U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"

    Features:

    • Entirely drop forged product with high-quality stainless steel
    • Outstanding working and breaking loads
    • For any fastening applications (shrouds, lifelines, blocks...)
    • Delivered with bolts and counter-plate
    • Max tightening torque: 36 Nm

    Applications:

    • Various fastening applications: shrouds, lifelines, blocks…

    Specifications:

    • Materials: 316L stainless steel grade
    • Working load: (lb) 7930 / (kg) 3600
    • Breaking load: (lb) 15430 / (kg) 7000
    • Weight: (lb) 0.489 / (g) 222

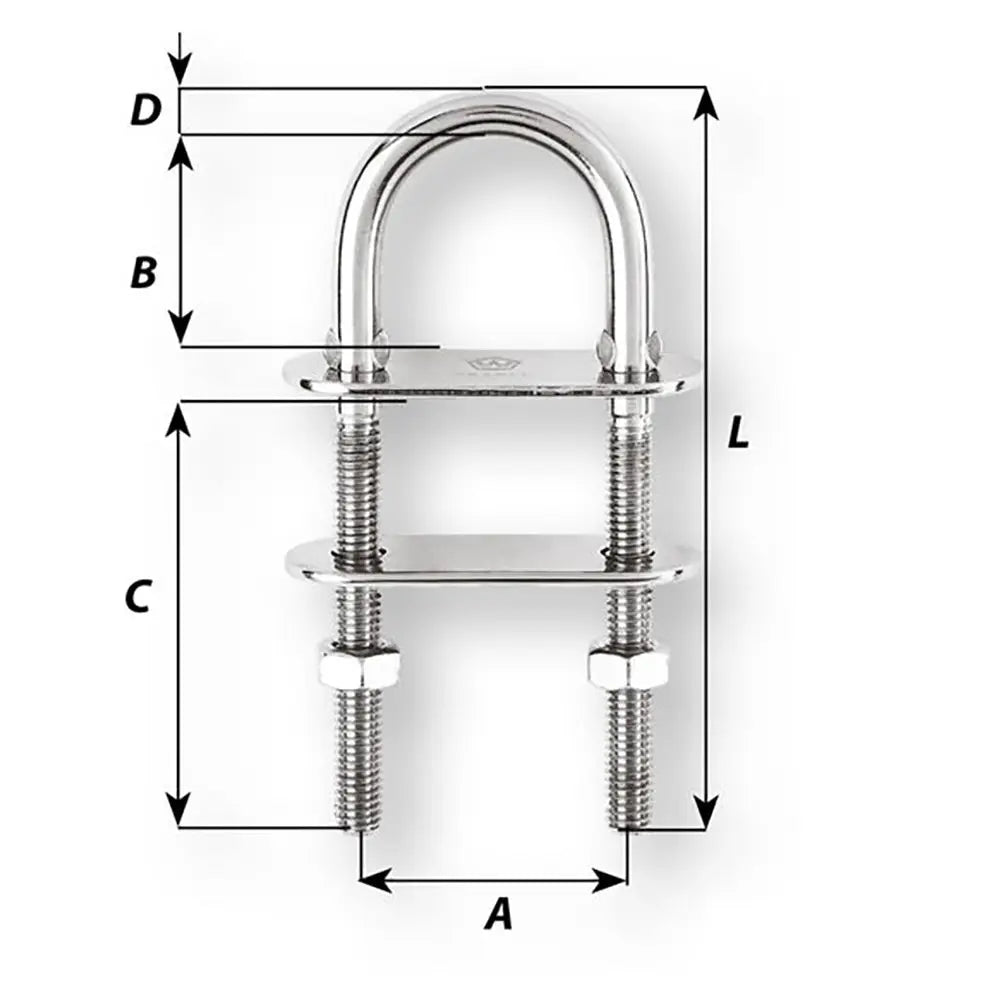

    Dimensions:

    • A: (inch) 1 37/64" / (mm) 40
    • B: (inch) 1 17/64" / (mm) 32
    • C: (inch) 2 9/16" / (mm) 65
    • D diameter: (inch) 25/64" / (mm) 10
    • Length: (inch) 4 21/64" / (mm) 110

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
