• Lectrotab Joystick LED Trim Tab Control [JLC-11]
1 1

Lectrotab Joystick LED Trim Tab Control [JLC-11]

$392.70
$462.00
$392.70
Shipping calculated at checkout.

SKU: CWR-101159   UPC: 850046155673

[COUNT] shoppers are looking at this right now
  • Hurry, only 3 items left in stock!

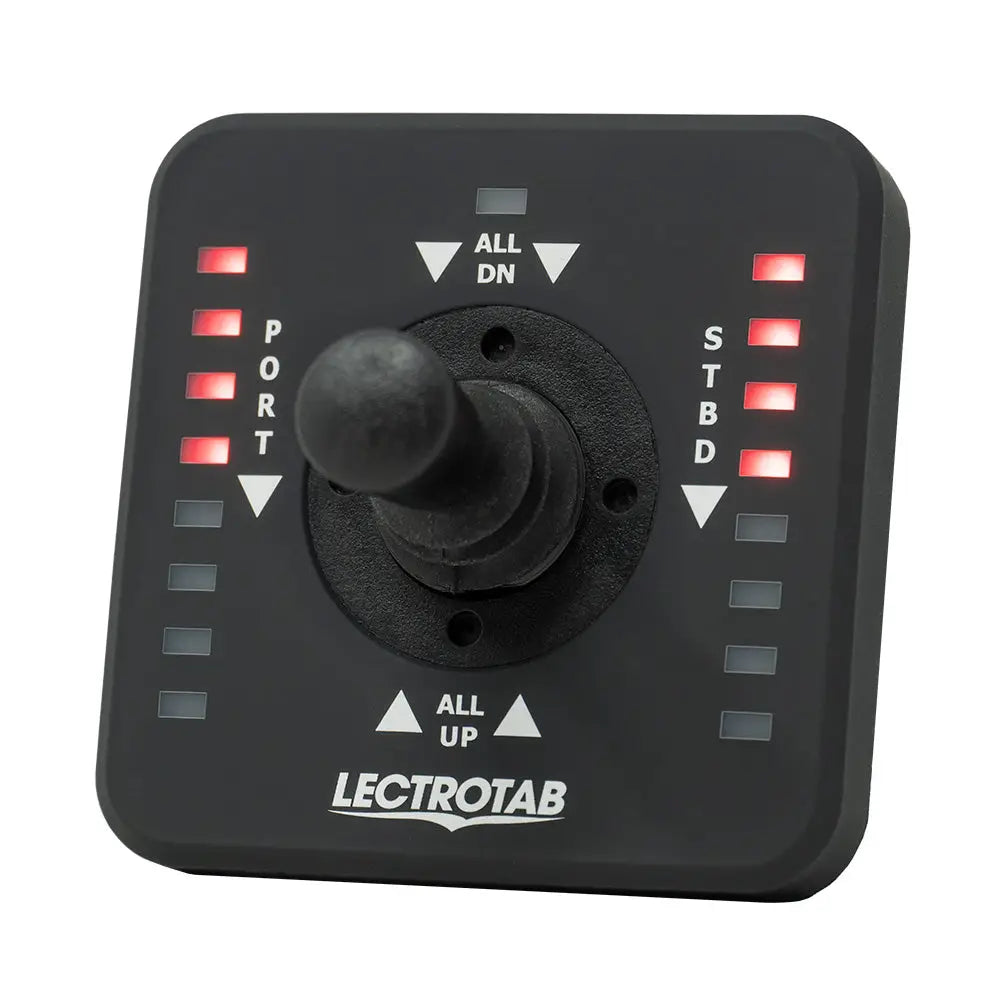

Joystick LED Trim Tab Control

Lectrotab’s Joystick LED control incorporates features requested by boat owners to provide user-friendly control for a more enjoyable boating experience.

Features:

  • Single “Joystick” control
  • NMEA 2000 compatible
  • LED display of each trim tab position
  • Microprocessor-based trim tab control with LED tab position indicators
  • NMEA 2000 compatible with JLC-NMEA adapter
  • Move both tabs up or down simultaneously with a single motion
  • Dual station ready – just add a second JLC-11 and JR-* cable (sold separately)
  • Automatic return to last tab position if the ignition key is turned off and back on again
  • Completely sealed, completely waterproof, and will not deteriorate in sunlight
  • Automatic tab retraction and calibration with key or accessory switch off
  • Easy upgrade from any of our Lectrotab controls
  • No external power module required
  • LED tab position indicators dim automatically in darkness and brighten in sunlight
  • Single or Dual Actuator per tab
  • Operates on 12 or 24 VDC systems

Specifications:

  • Display Color: Black
  • Number of Stations/Actuators: Single or Dual Station/1 or 2 Actuator/tab
  • Overall Width: 3.0"/77mm
  • Overall Height/Thickness: 3.0" (77mm)/2.0" (50mm)
  • Mounting Hole Cutout (Diameter): 2.625"/66.7mm
  • DC Voltage: 12/24
  • Fuse Size Power Input (1 Actuator Per Tab): 12 VDC-15 or 20 AMPs 24 VDC = 10 AMPs
  • Fuse Size Aux. (Must Connect): 1 to 2 AMPs

Quick Guide (pdf)
