Lopolight Combined Sidelight - 1NM - Black Housing w/FB Base [101-003-FB-B]

$523.24
$523.24
$523.24
Shipping calculated at checkout.

SKU: CWR-103272   UPC: 879343042745

[COUNT] shoppers are looking at this right now

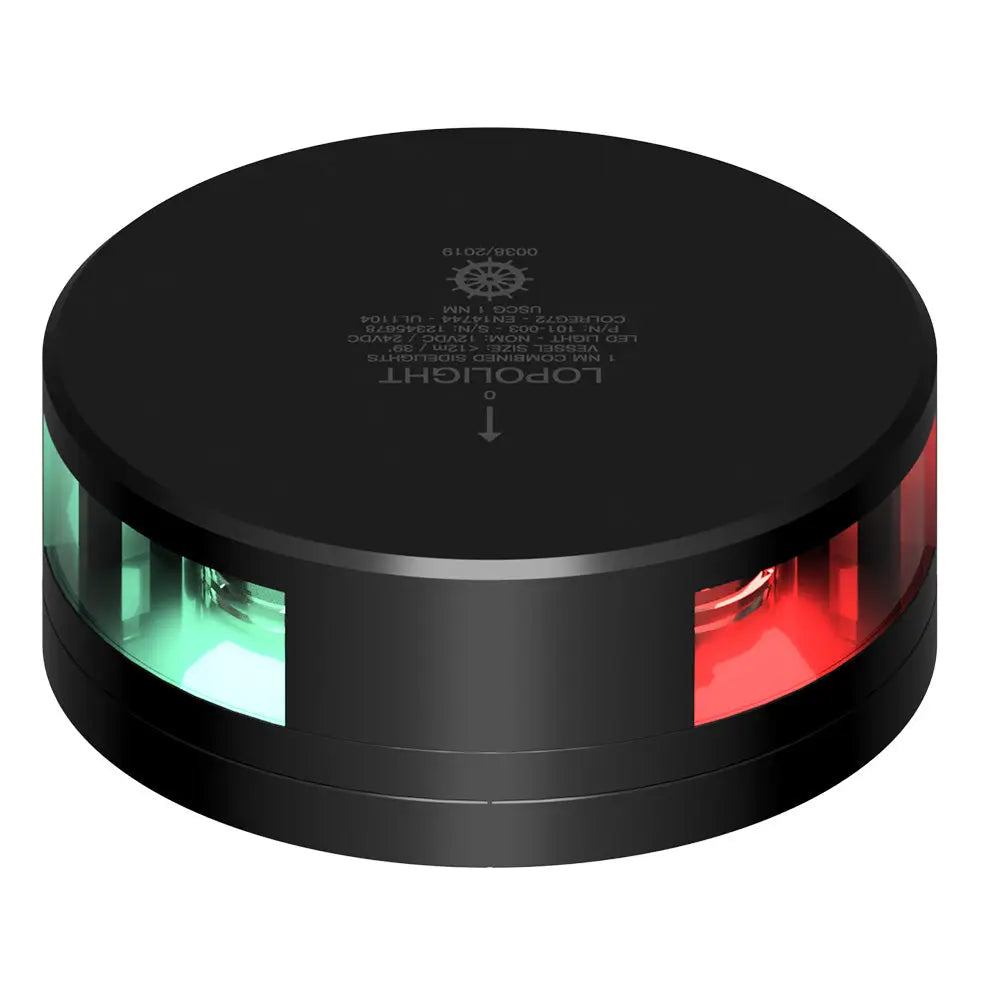

    Combined Sidelight - 1NM - Black Housing with FB Base

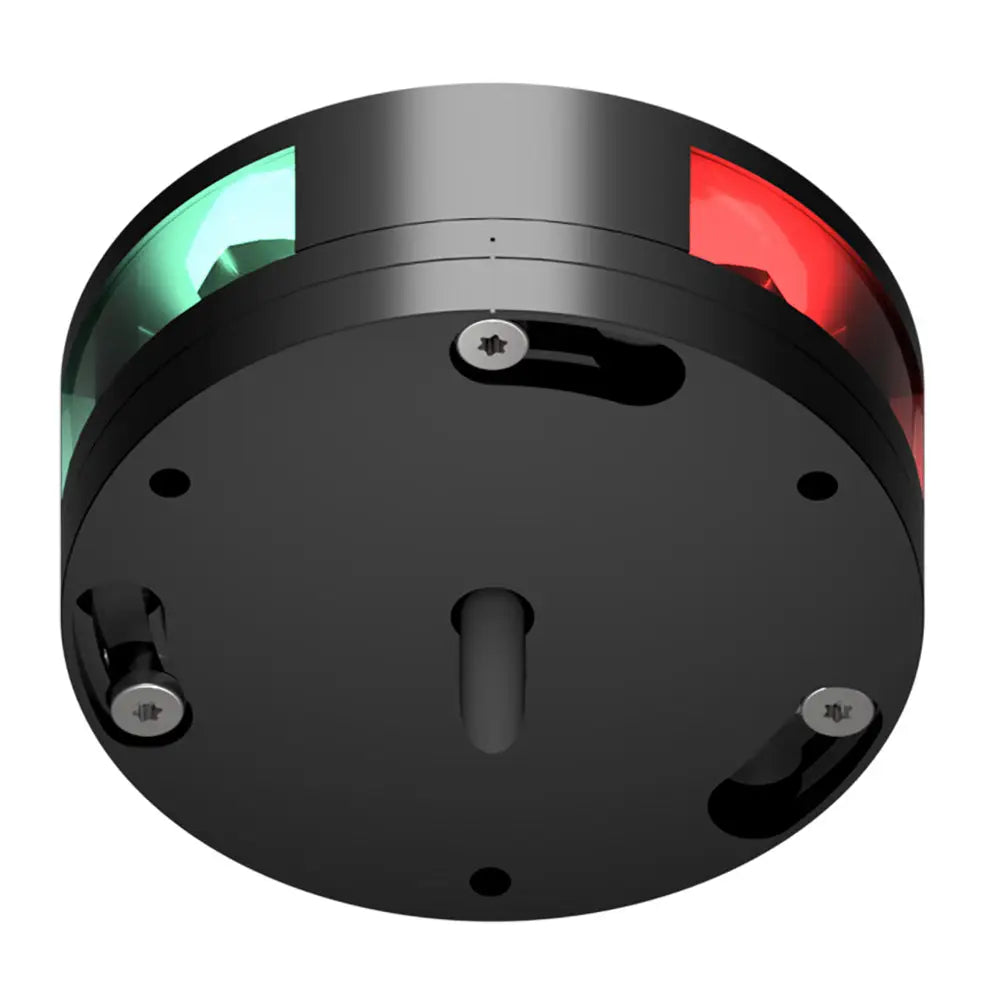

    This navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

    Features:

    • Black anodized housing
    • 2.5m cable is included

    Specifications:

    • Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
    • Mounting: Horizontal
    • EAN: 5704438042605
    • Min. Feed Wire Gauge: 0.5mm2 AWG22
    • Light Color: Red, green
    • Visibility: 1NM
    • Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
    • IP rating: IP68
    • Connection: 2.5m cable
    • Current Consumption (mA @ 24VDC): 48
    • Current Consumption (mA @ 12VDC): 87
    • Dimensions Metric: Ø92,5mm x 58mm
    • Dimensions Imperial: Ø3.6" x 1.4"
    • Operating Temperature: -25 degrees C to 55 degrees C
    • Operating Voltage: 10-32VDC
    • Power Draw (W): 1.4
    • Vessel Size: Under 12 meters

    Specifications:

    • Housing: Black
    • Lens Color: Red/Green
    • Visible Range (Miles): 1NM
    • Voltage - Input Range (Volts): 10 - 32

    Quick Guide (pdf)
