Victron Lynx Power-In Class-T M10 Terminals [LYN060404010]

$192.89
$220.00
$192.89
Shipping calculated at checkout.

SKU: CWR-103301   UPC: 8719076062967

[COUNT] shoppers are looking at this right now

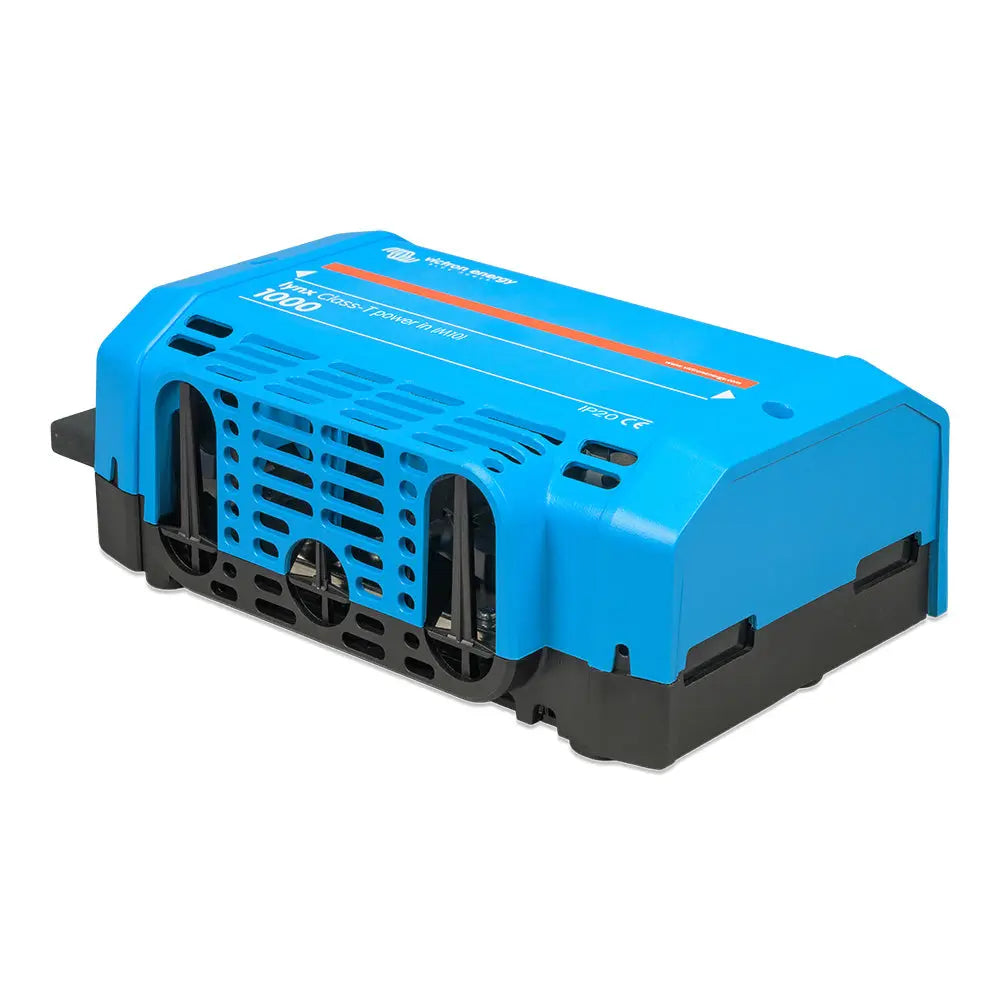

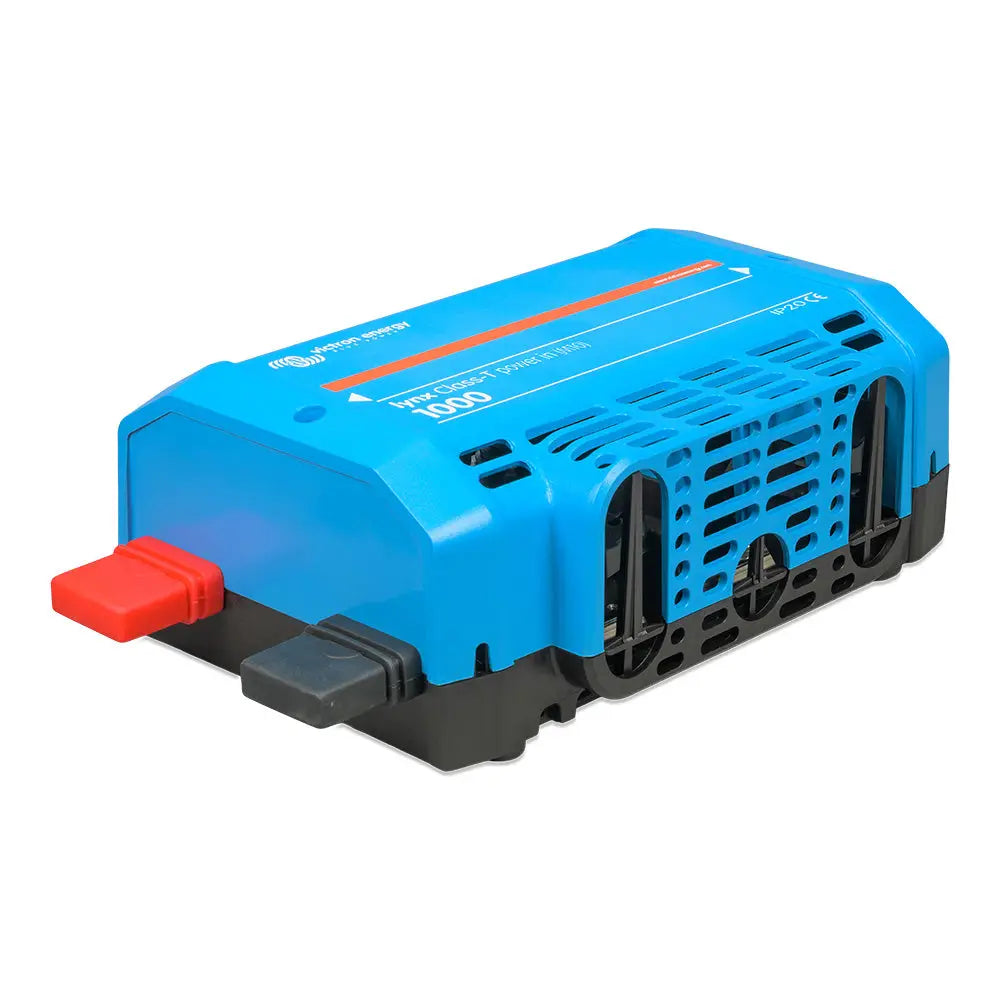

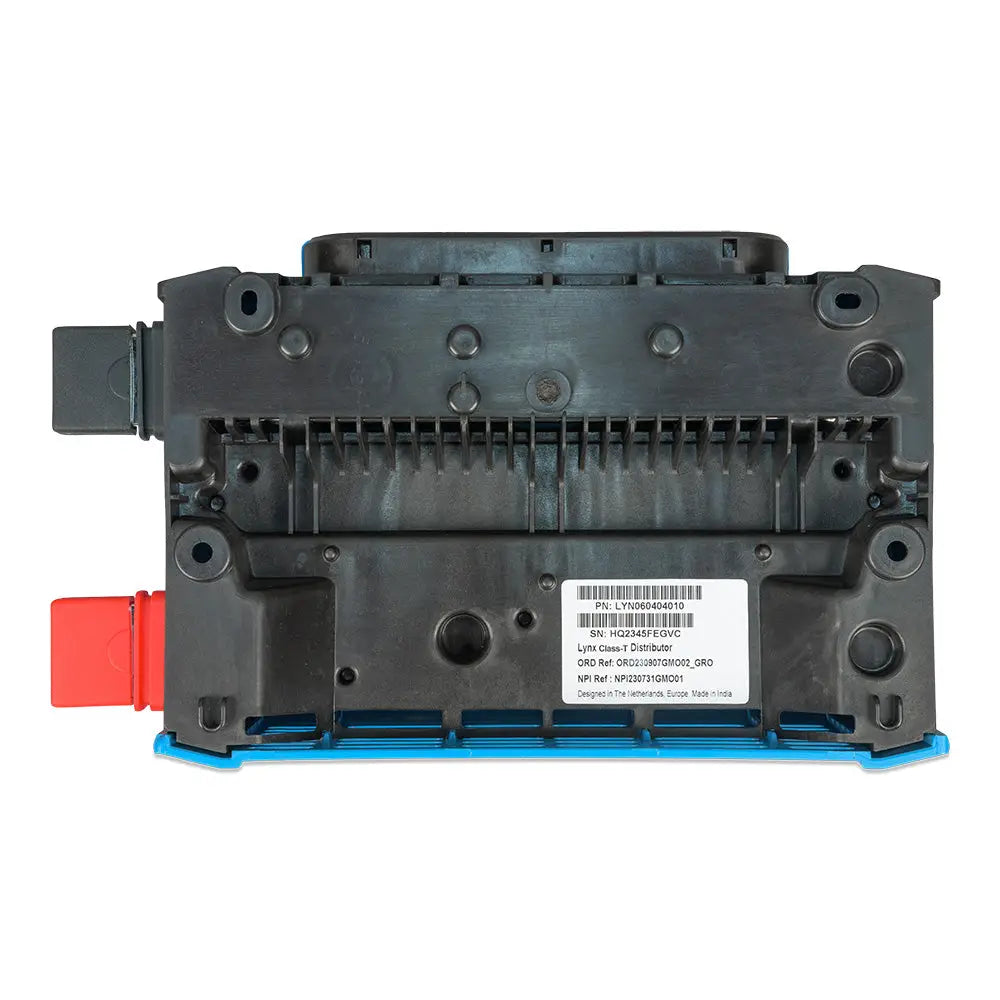

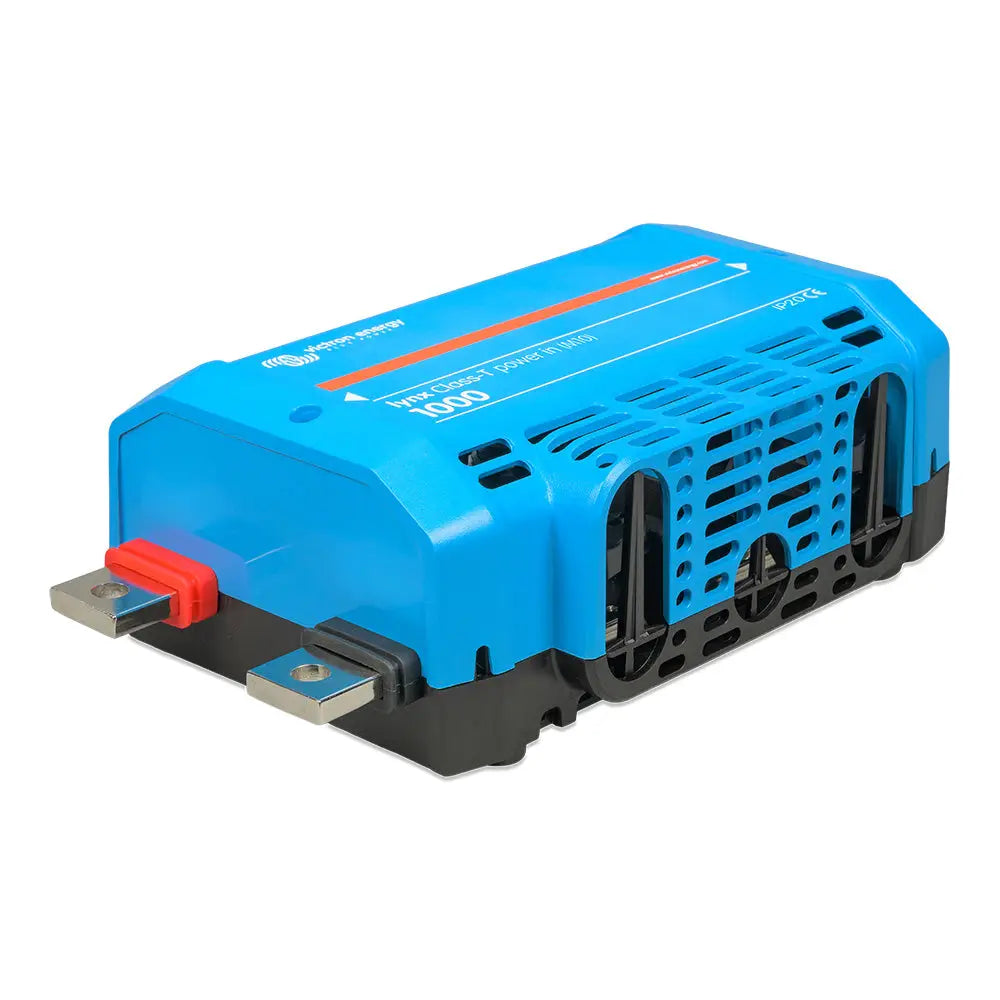

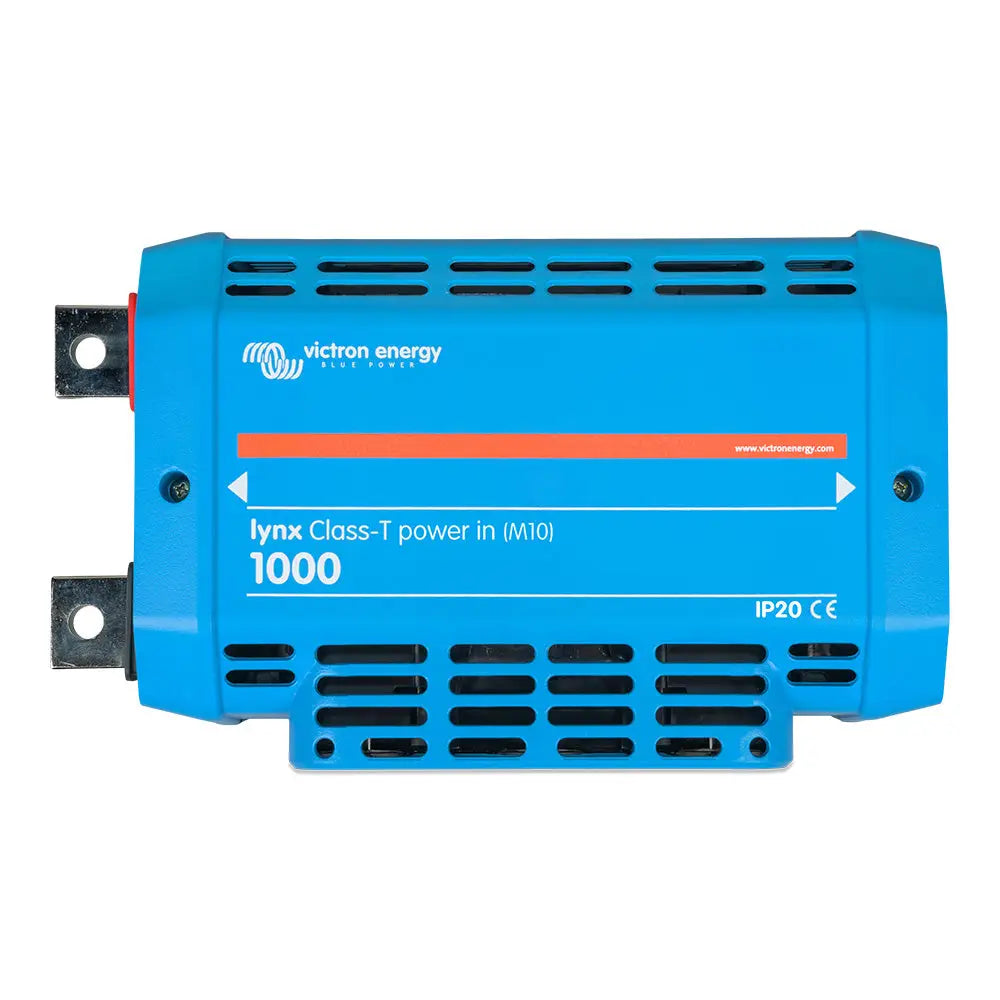

    Lynx Power-In Class-T M10 Terminals

    The Lynx Class-T Power In connects and fuses up to two strings of lithium batteries. It features a positive and negative busbar, connections for two Class-T fuses, and a connection to ground the DC system. The Class T-fuses, are available in 225A, 250A, 350A, and 400A (must be purchased separately).

    For installations using three or more strings of lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.

    The Lynx Distribution System

    The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management.

    The Lynx Distribution System Consists of the Following Parts

    Lynx Power In

    A positive and negative busbar with four batteries or DC equipment connections.

    Lynx Distributor

    A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring is available in two versions.

    Lynx Shunt VE.Can

    A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.

    Lynx Smart BMS

    For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.

    It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.

    Specifications

    Power:

    • Voltage Range: 9 - 60Vdc
    • Current Rating: 1000Adc continuous
    • Connections: M10
    • Busbar: 3/8”

    Physical:

    • Enclosure Material: ABS
    • Enclosure Dimensions (H x W x D): 279 x 169 x 97mm
    • Unit Weight: 2.1 kg
    • Busbar Material: Tinned copper
    • Busbar Dimensions (H x W): 8 x 30mm

    Environmental:

    • Operating Temperature Range: -40°C to +60°
    • Storage Temperature Range: -40°C to +60°
    • Humidity: Max. 95% (non-condensing)
    • Protection Class: IP20
    Please contact your dealer for any returns, repairs or support issues related to this product.

    Specifications:

    • Fuse Type: Class T
    • Box Dimensions: 5"H x 7"W x 16"L WT: 6.6 lbs
    • UPC: 8719076062967

    Quick Guide (pdf)
    Owner's Manual (pdf)
