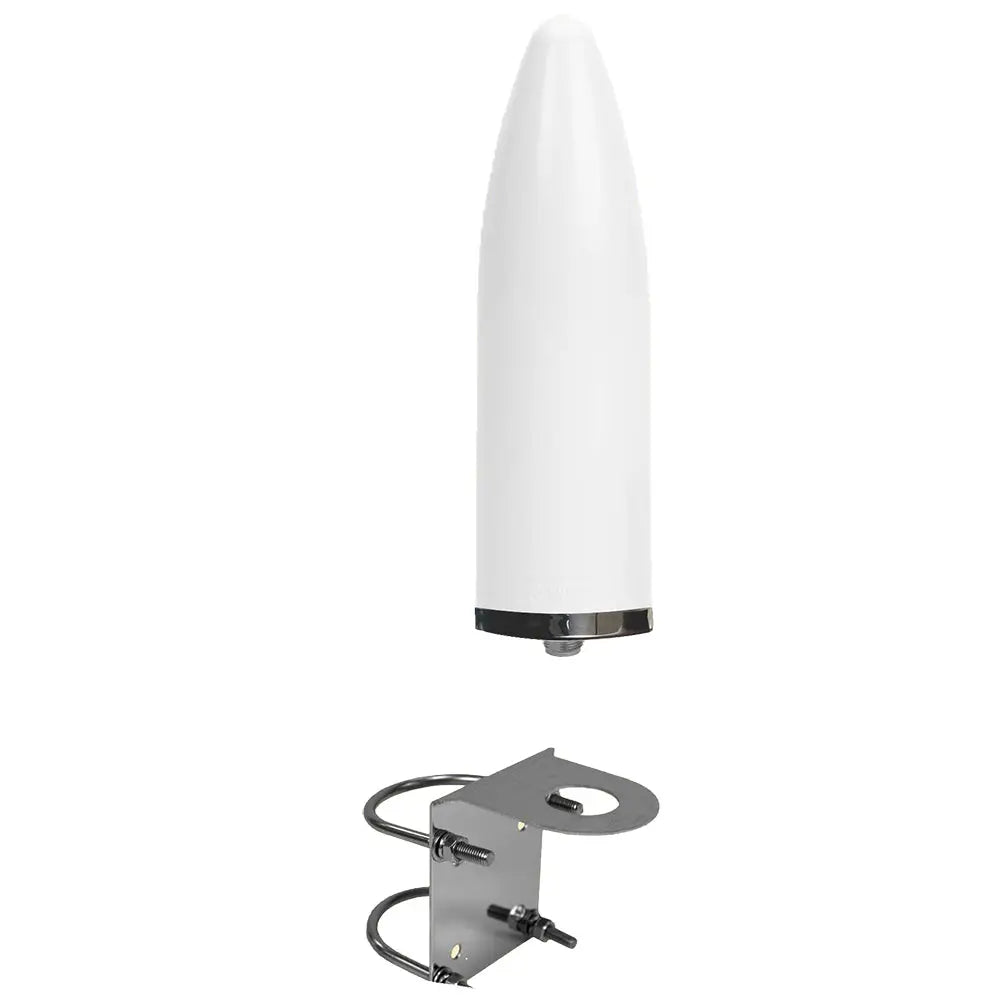

    Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni with Bracket

    Digital Antenna's omni-directional antenna with stainless steel base provides excellent performance from 600-3000 MHz and is ideal for mobile or fixed locations.

    9dBi antenna designed and low profile manufactured in the USA by Digital Antenna, greatly improves signal strength providing a maximum signal range.

    For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways. Available in several mounting options for use on boats, buildings, utilities, M2M, and more marine environments.

    Available in 4 stainless steel mounting options: L-Bracket, 1" x 14 Threads, Deck Mount, and Raised Deck Mount

    REQUIRED (NOT INCLUDED) 50ohm coaxial cable to connect the antenna to a cellular device, cellular booster, cellular modem, or WiFi router.

    Applications:

    • Commercial
    • Recreational
    • Government
    • Marine
    • Land

    Features:

    • Maximum power for 4G, 5G, WiFi signals
    • 9dBi omni-directional gain
    • Rugged UV stable polyurethane finish
    • Foam filled to withstand extreme vibrations
    • 316 stainless steel base
    • Includes L bracket & U-Bolts
    • Weatherproof N female connector
    • 5-year warranty

    Specifications:

    • Radiation Pattern Omni-Directional
    • Gain 9dBi
    • Bandwidth VSWR (3G, 4G, 5G, WiFi) <1.5: 1 = 614-3000 MHZ
    • Cable Not Included
    • Impedance 50 ohms
    • Max Input Power 50 watts
    • Exterior Finish White polyurethane high gloss UV stable
    • Dimensions 8.875" L x 2.375" OD (225 x 60 mm
    • Weight 15 oz
    • RF Connector N type female
    • Installation Stainless Steel L bracket for pole/wall
    • Elements Copper - Hand soldered
    • Polarization Vertical
    • Wind Rating >160KPH
    • Operating Temp 30º F to +175º F
    • Warranty 5 Years
    • Compliance RoHS compliant

    Quick Guide (pdf)
