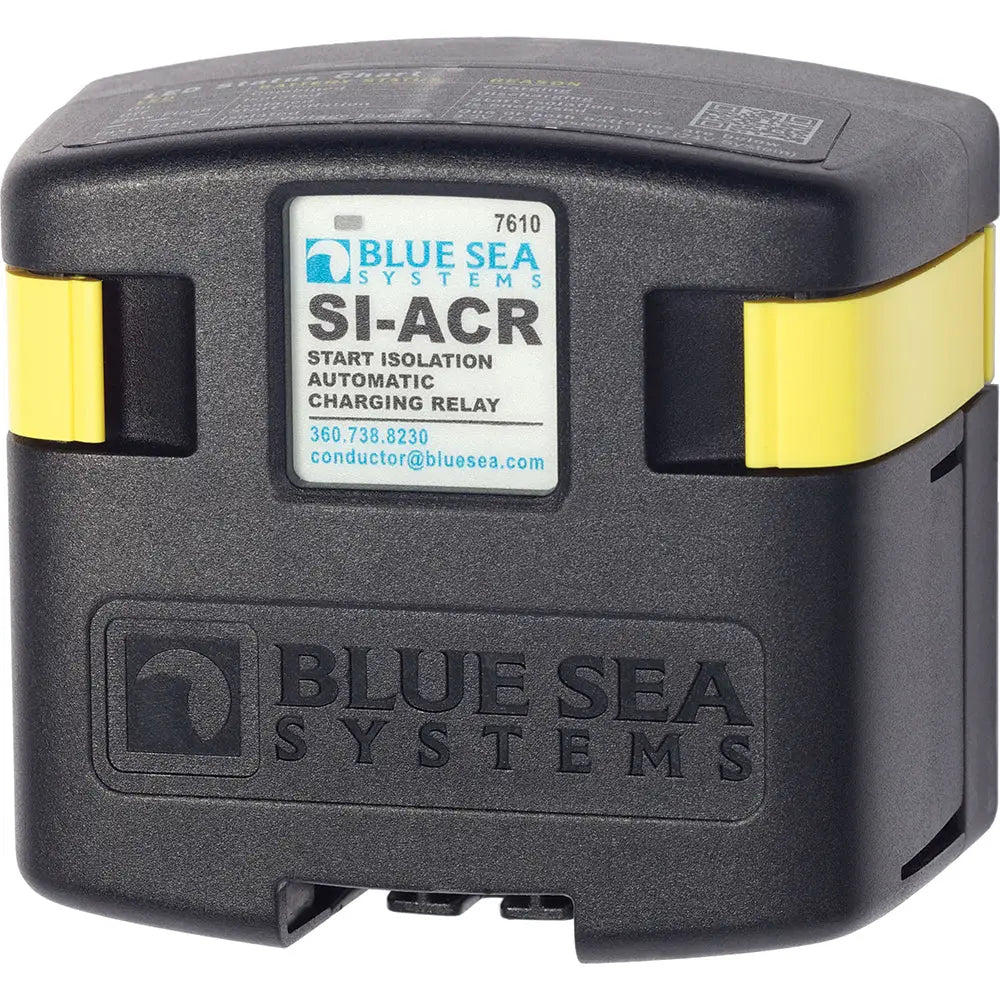

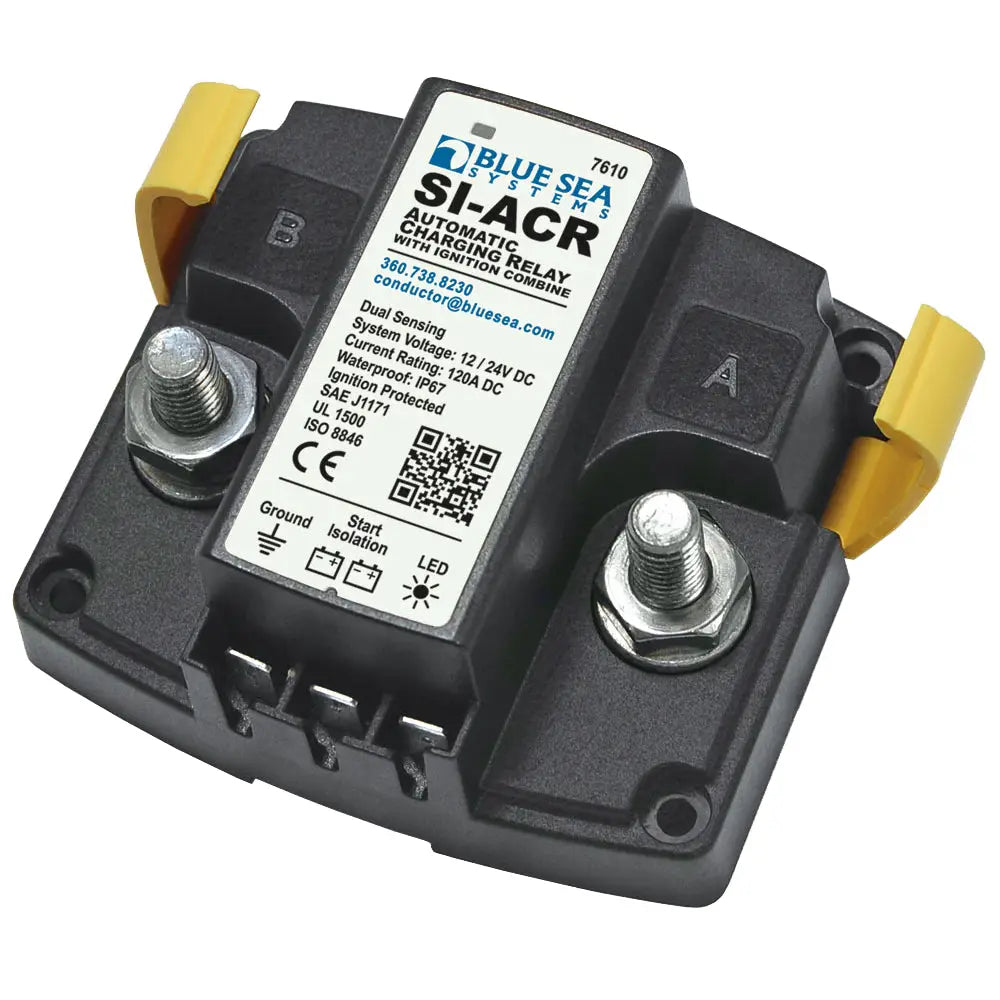

Blue Sea 7610 120 Amp SI-Series Automatic Charging Relay [7610]

$128.89
$199.99
$128.89
Shipping calculated at checkout.

SKU: CWR-30594   UPC: 632085076108

[COUNT] shoppers are looking at this right now

    7610

    120 Amp SI-Series Automatic Charging Relay


    • Allows temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics
    • Automatically combines battery banks during the charging cycle and isolates under discharge
    • 12/24 Volt auto ranging voltage input
    • Waterproof rated IP67 - temporary immersion for 30 minutes
    • Ignition protected - safe for installation aboard gasoline powered boats
    • Remote LED output indicates relay state away from ACR
    • LED light indicates when batteries are combined
    • LED blinks in undervoltage lockout and starting lockout
    • Supports high-output alternators up to 120 Amperes
    • Included with the ADD A BATTERY Dual Circuit System
    • Automatically combines battery banks during the charging cycle and isolates under discharge
    • Ignition protected - safe for installation aboard gasoline-powered boats
    • Activates from any charging source - alternators, battery chargers, or solar panels
    • Hermetically sealed contacts / vaporproof
    • Side and bottom knockouts for power cable connections

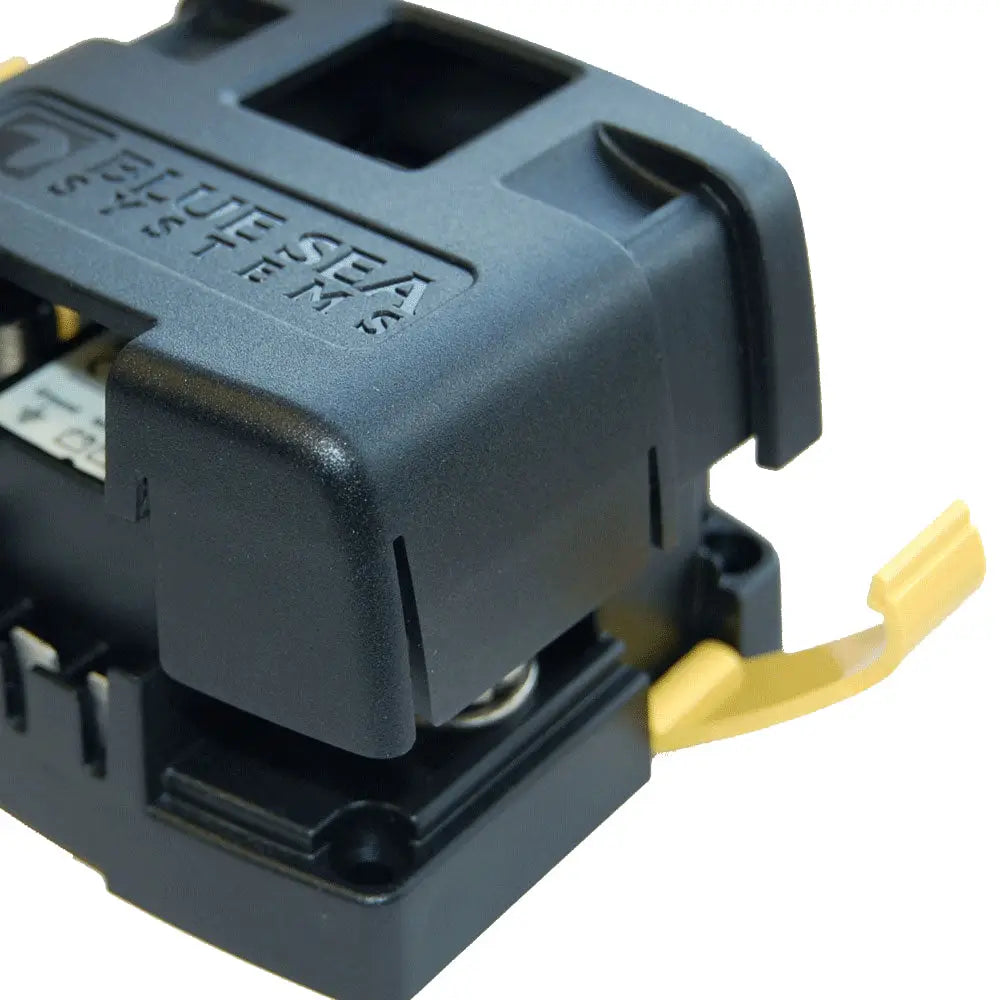

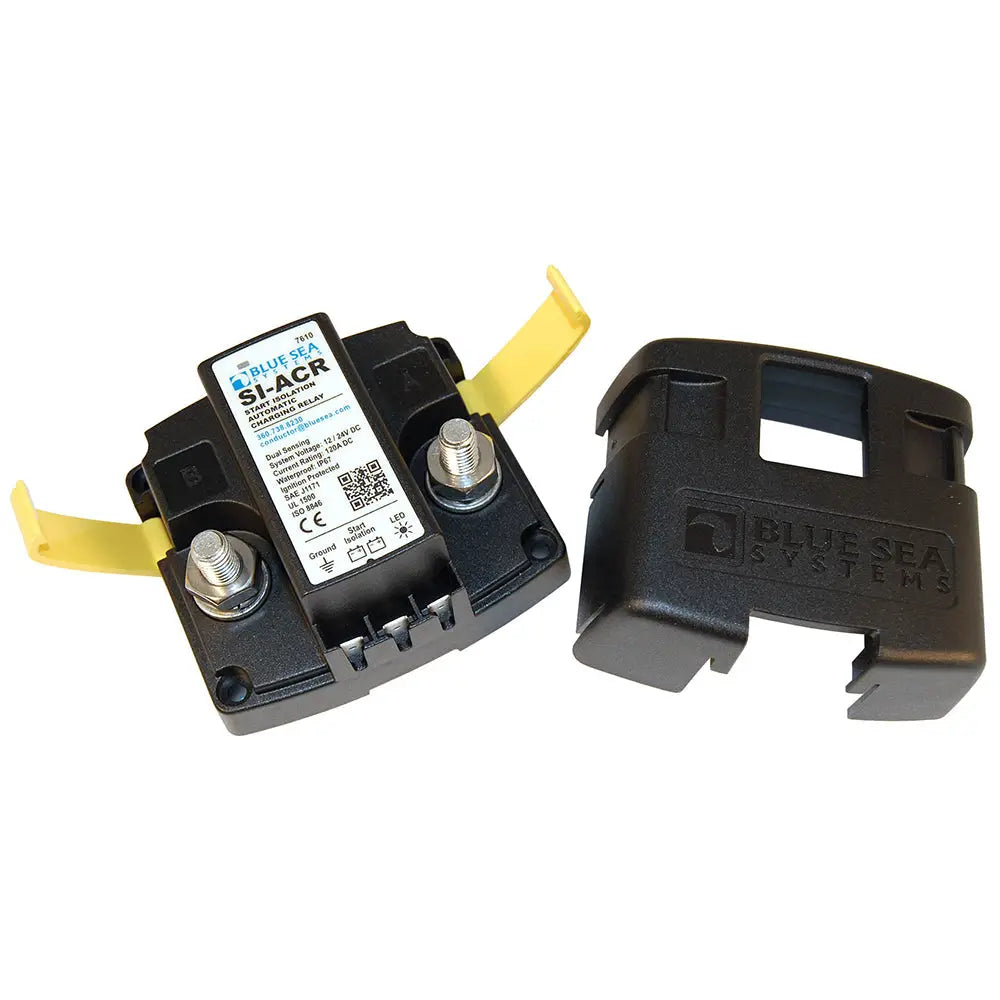

    • Clip-on cover protects and insulates terminal connections
    • Tin-plated copper studs for maximum corrosion resistance
    • 7/8" (22.22mm) stud length to accept multiple cable terminals
    • 1/4" x 0.031" male quick connect terminals for ground and remote LED and starting interrupt

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


    Owner's Manual (pdf)
