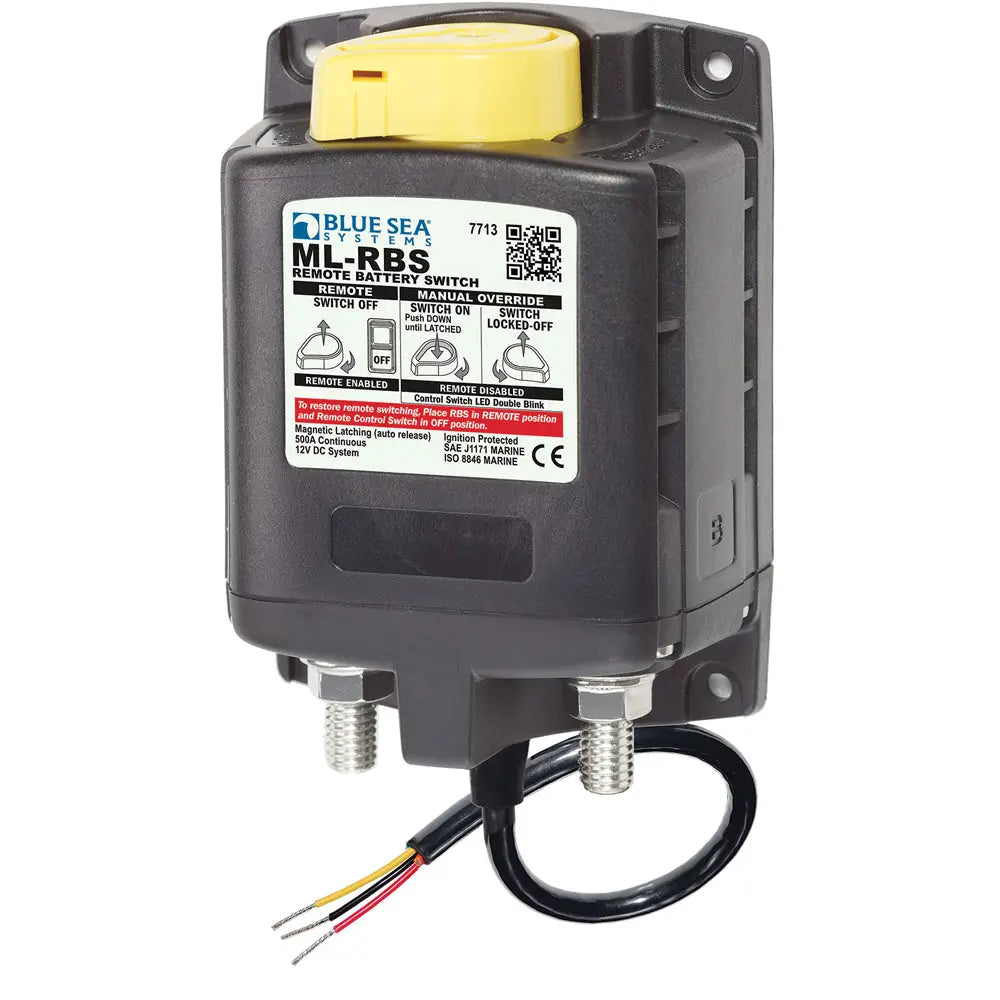

Blue Sea 7713 ML-RBS Remote Battery Switch w/Manual Control Release - 12V [7713]

$262.89
$408.99
$262.89
Shipping calculated at checkout.

SKU: CWR-53464   UPC: 632085077129

[COUNT] shoppers are looking at this right now

    ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V

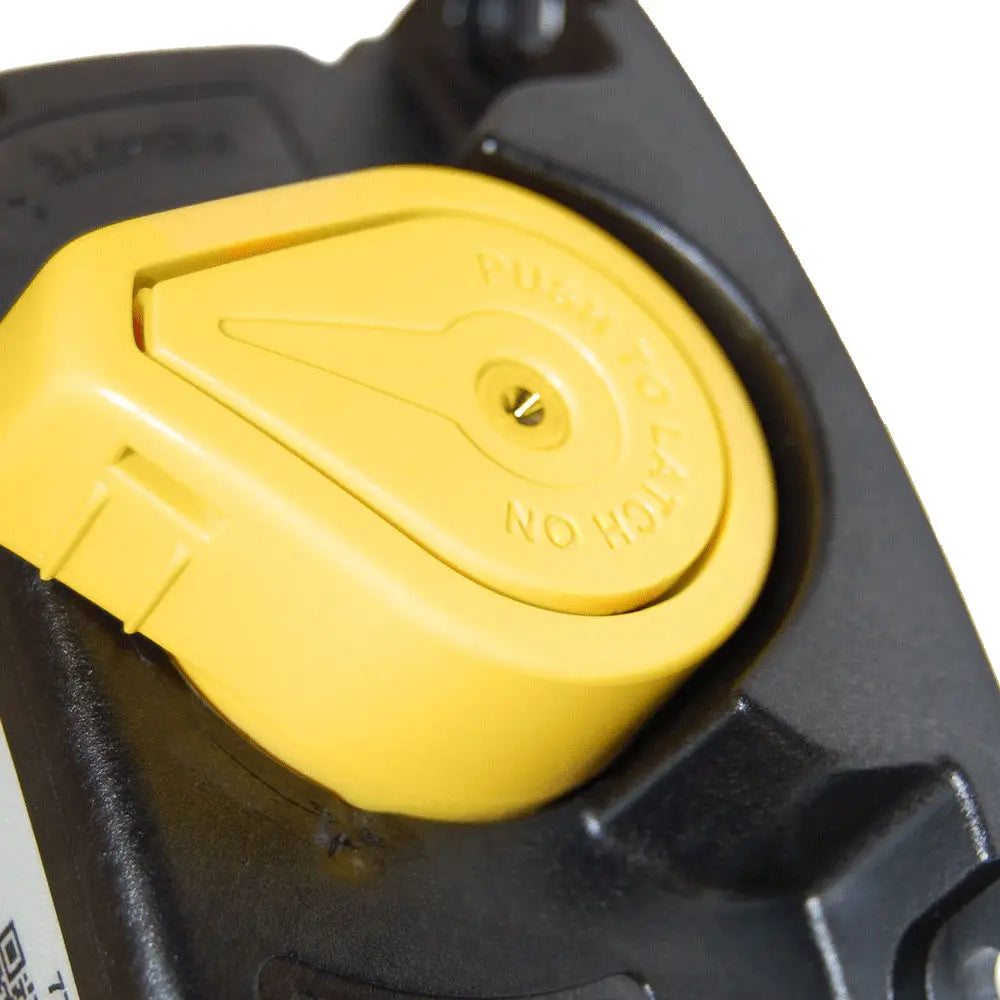

    • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
    • LED output to remotely indicate switch state - requires optional LED
    • 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
    • 7/ 8" (22mm) stud length accepts multiple cable terminals
    • Label recesses for circuit identification
    • Silver alloy contacts provide high reliability for switching live loads


    Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

    Specifications
    Control Circuit Connection:Tinned Wire
    Nominal Voltage:12V DC
    Coil Function: Auto releasing
    Mounting:t#10
    Amperage Operating Current:8mA when OFF/13mA when ON
    Amperage Operating Current when changing state:t<7A (40 ms)
    Control Circuit Voltage:t10.1 to 16.5V DC
    Continuous Rating: 500A
    Intermittent Rating: t700A (5 min)
    Cranking Rating: 10 sec 2500A
    Cranking Rating: 1 min 1100A
    Minimum Operating Temperature:t-10° C
    Maximum Operating Temperature:t50° C
    Cable Size to Meet Ratings:t2x (4/0)
    Live Current Switching:t300A @ 12V DC 10,000 Cycles
    Master Control Switch Capability:tYes
    Mechanical Endurance:t100,000 Cycles
    Switching Cycles:t100,000
    Terminal Ring Diameter Clearance:t1.18" (29.97mm)
    Terminal Stud Length:t0.875" (22.23mm)
    Terminal Stud Size:t3/8-16 (M10)
    Terminal Stud Torque:t140 in-lb (15.82 Nm)
    Weight:t1.75lb (0.79 kg)

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Lockable: Yes
    • Continuous Amperage: 500a
    • Box Dimensions: 3"H x 7"W x 12"L WT: 2.1 lbs
    • UPC: 632085077129

    Owner's Manual (pdf)
    Brochure (pdf)
