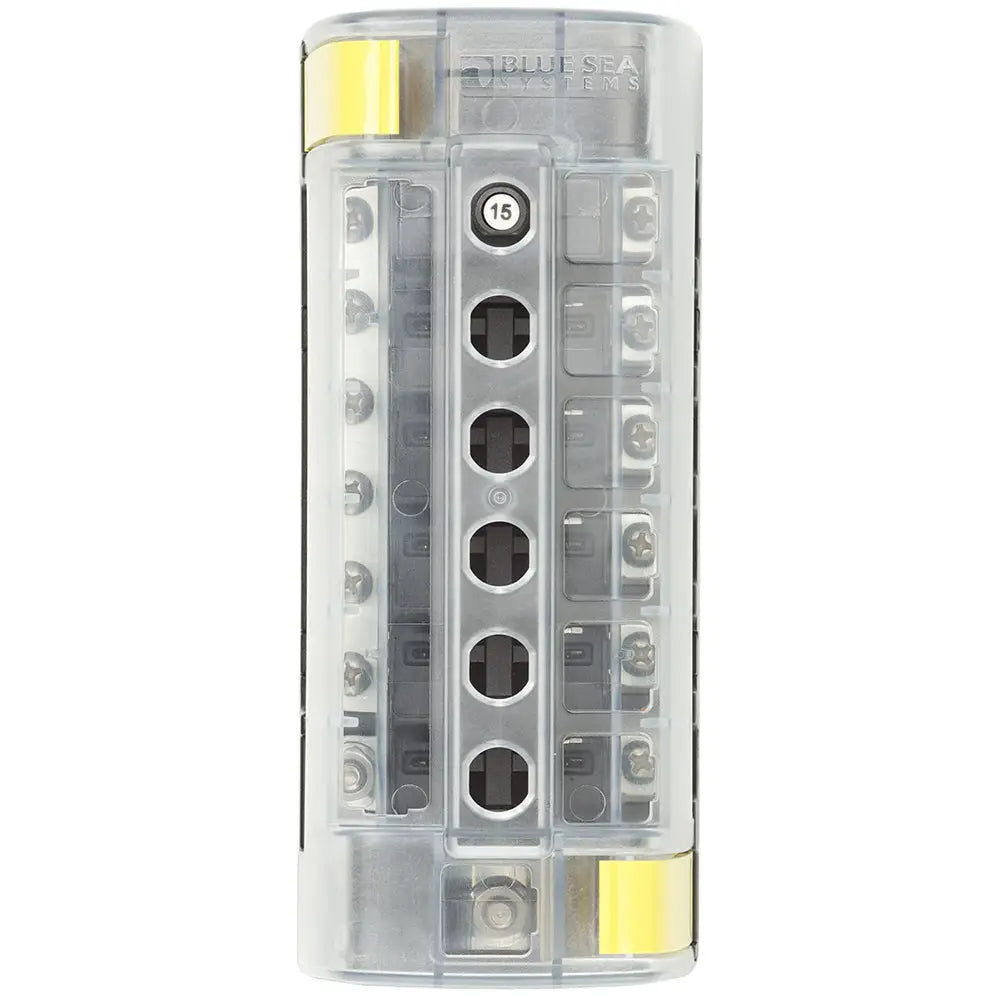

Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus [5052]

$68.89
$105.99
$68.89
Shipping calculated at checkout.

SKU: CWR-51811   UPC: 632085050528

[COUNT] shoppers are looking at this right now

    ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

    Features

    • Quick connect clips allow circuit breakers to snap easily into place
    • Tin-plated copper busses and screw terminals
    • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
    • Easy to open clip on cover
    • Breakouts allow wire access in two directions
    • Accepts ring terminals

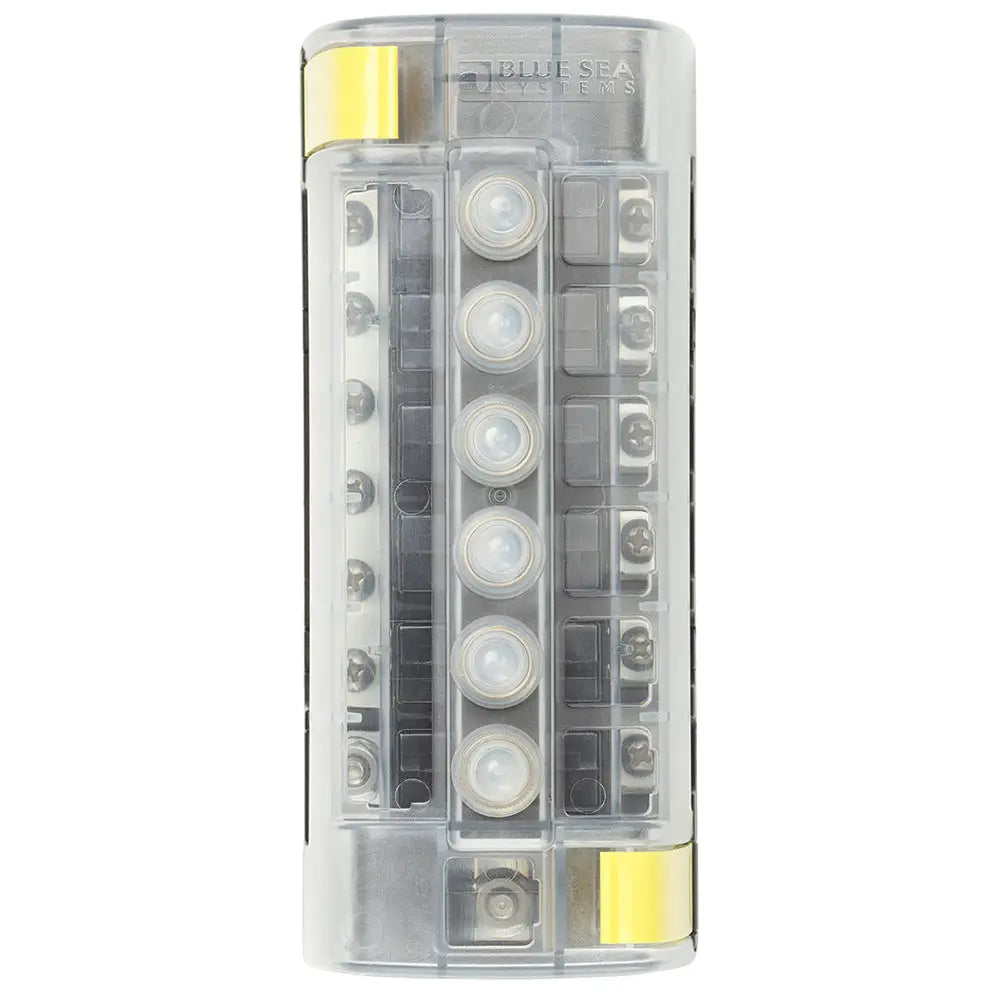

    • Optional push button waterproof boots or dress nuts can be installed over cover


    Specifications:
    Circuits:t6
    Maximum Amperage:t100A (per block) 32A (per circuit)
    Maximum Voltage:t32V DC
    Mounting:t#8 Screw (M4) or #8 Nut
    Negative Bus: Yes
    Source:tCommon SourceMinimum Operating Temperature:t-10° C
    Maximum Operating Temperature:t60° C
    Mounting Centers:t5.63"(143 mm)
    Screw Terminal Type:t#8-32 Screws with Captive Star Lock Washer
    Height:t6.69"(169.93 mm)
    Weight:t0.75lb (0.34 kg)

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Amperage: 100/32a
    • Box Dimensions: 3"H x 5"W x 11"L WT: 0.9 lbs
    • UPC: 632085050528

    Brochure (pdf)
