• Blue Sea 5023 ST-Blade Battery Terminal Mount Fuse Block [5023]
1 1

Blue Sea 5023 ST-Blade Battery Terminal Mount Fuse Block [5023]

$29.89
$42.99
$29.89
Shipping calculated at checkout.

SKU: CWR-54775   UPC: 632085050238

[COUNT] shoppers are looking at this right now

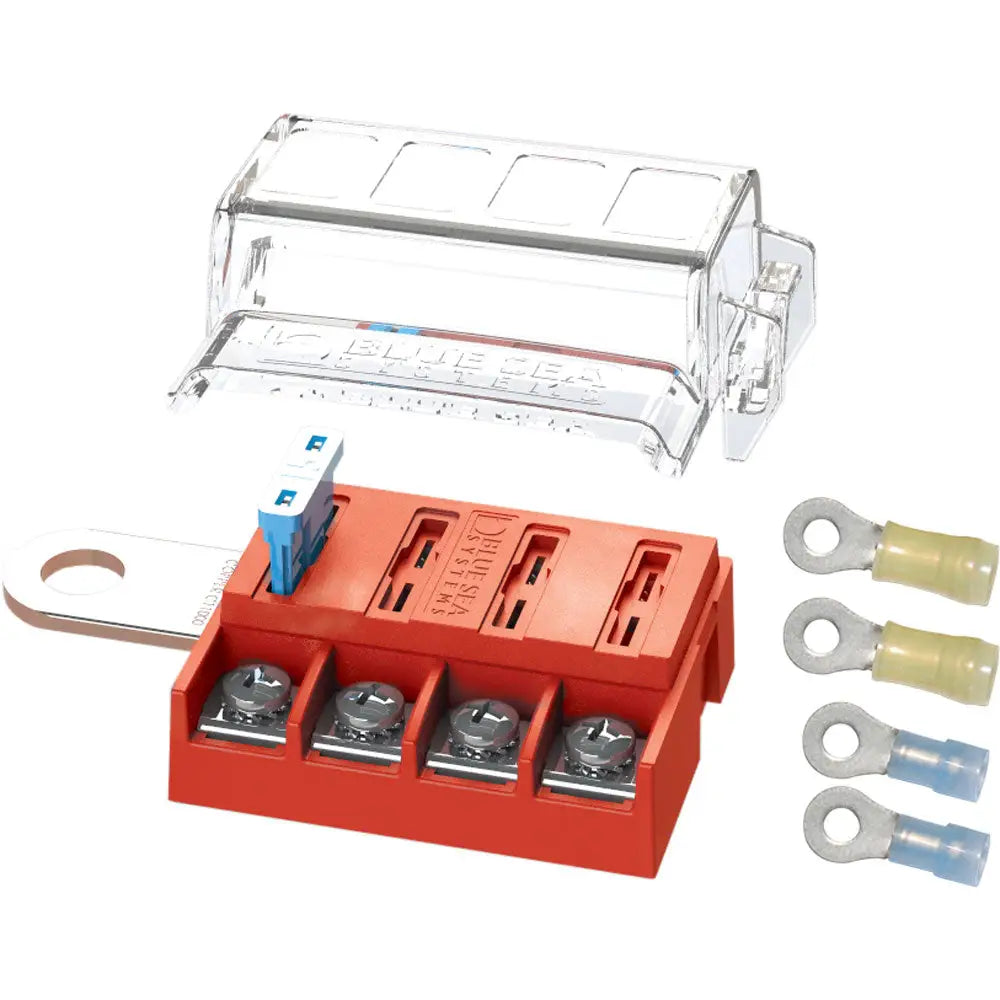

    ST-Blade Battery Terminal Mount Fuse Block

    Features:

    • Easy to install 4 ATO/ATC fused circuits
    • Mounts on the battery terminal stud
    • Screw terminals for securing wires
    • Four Nylon insulated ring terminals included
    • Insulating cover included
    • Accepts Small Format Circuit Labels
    • Includes 1 fuse

    Specifications:
    • Circuits: 4
    • Maximum Amperage: 100A per block, 30A per circuit
    • Maximum Voltage: 32V DC
    • Mounting:tClearance for 3/8" [M10] stud
    • Screw Terminal Type: #8-32 Screws with captive star lock washer

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Fuse Type: ATO/ATC
    • Type: Fuse Blocks
    • Box Dimensions: 2"H x 5"W x 8"L WT: 0.3 lbs
    • UPC: 632085050238

    Quick Guide (pdf)
