Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover [5045]

$29.89
$42.99
$29.89
Shipping calculated at checkout.

SKU: CWR-58585   UPC: 632085050450

[COUNT] shoppers are looking at this right now

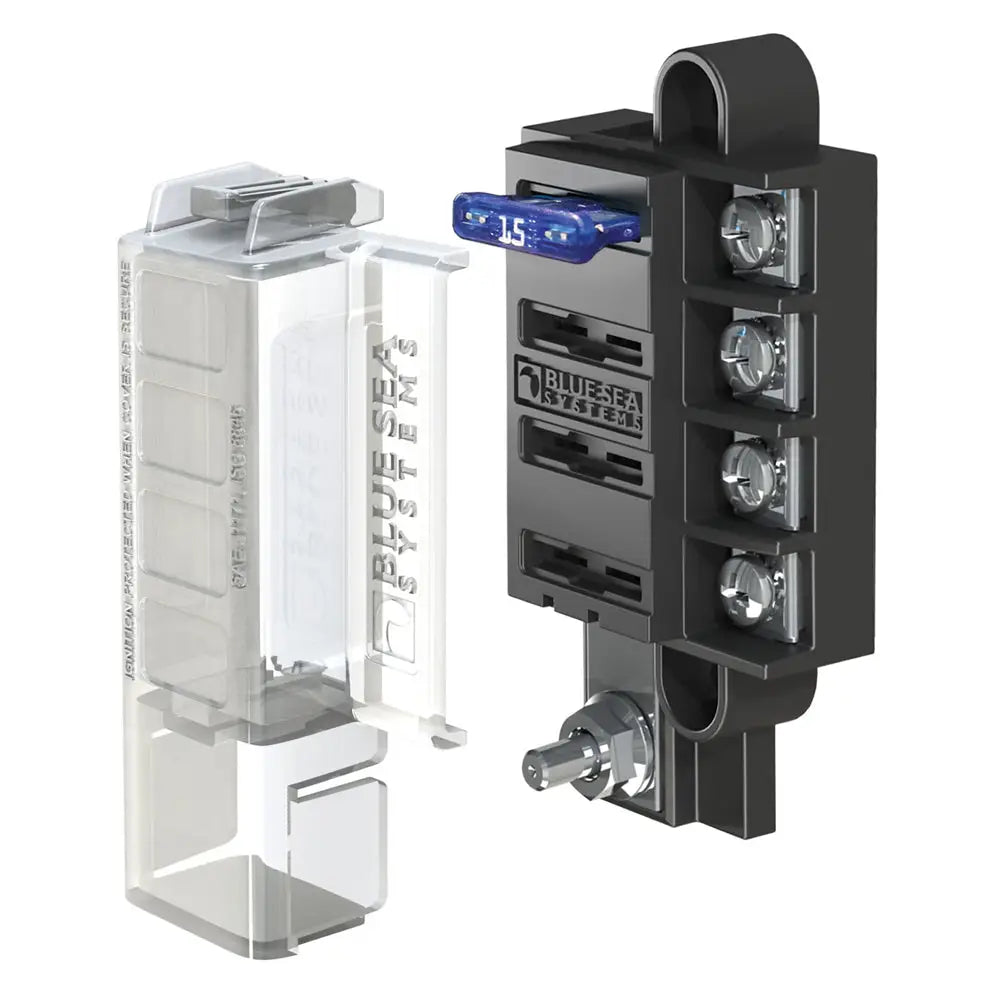

    ST Blade Compact Fuse Blocks - 4 Circuits w/Cover

    Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

    • Compact common source fuse block
    • Accepts ATO® and ATC® fast acting blade fuses
    • Single side entry wiring
    • Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
    • Insulating cover meets ABYC/USCG insulation requirements
    • Tin-plated copper buses and fuse clips
    • Accepts ring or snap fork type terminals
    • Small format standard and custom labels available


    Specifications
    • Circuits:4
    • Maximum Amperage: 100A per block / 30A per circuit
    • Maximum Voltage:32V DC
    • Mounting:t#8 Screw (M4)
    • Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Fuse Type: ATO/ATC
    • Type: Fuse Blocks
    • Box Dimensions: 2"H x 3"W x 8"L WT: 0.5 lbs
    • UPC: 632085050450
