Blue Sea 5056 ST-Blade Water Resistant Fuse Block w/Cover [5056]

$50.89
$71.99
$50.89
Shipping calculated at checkout.

SKU: CWR-80382   UPC: 632085050566

[COUNT] shoppers are looking at this right now

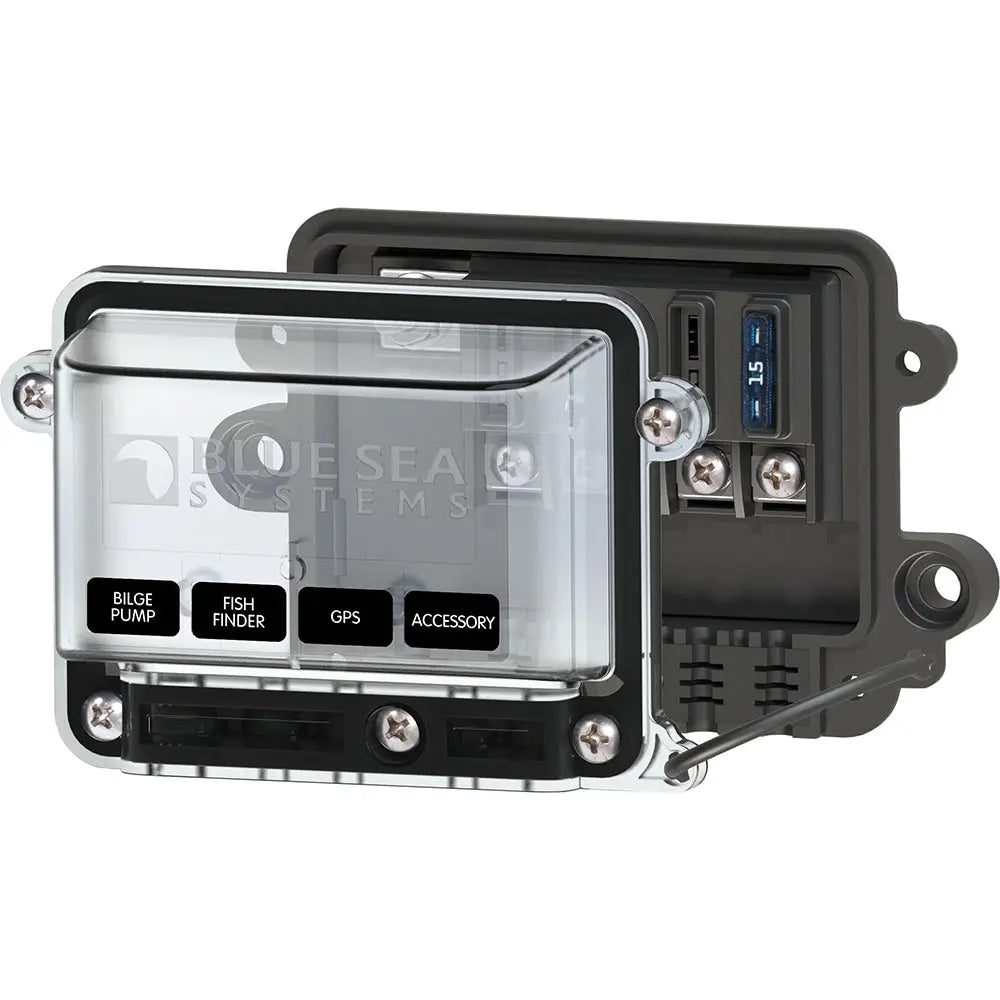

    5056 ST-Blade Water Resistant Fuse Block with Cover

    Provides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint. The single side nesting design allows for wire entry from one side to maximize space.

    Features:

    • Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools
    • Accepts a wide range of wire sizes
    • Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
    • Accepts ATO and ATC fast-acting blade fuses
    • Accepts ATO/ATC-Style Low Profile Circuit Breakers
    • Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
    • Insulating cover meets ABYC/USCG insulation requirements
    • Tin-plated copper busses and fuse clips
    • Includes four write-on circuit labels
    • Small format standard and custom labels available
    • Spare fuse and fastener storage in cover

    Specifications:

    • Amperage: 80A per block/25A per circuit
    • Maximum Voltage: 32V DC
    • Bus Material: Tin-Plated Copper C11000
    • Mounting Holes: Clearance for 1/4" (6mm) screws
    • Screw Terminal Type: #8-32 Screws with captive star lock washer
    • Wire Size: (1) 8 AWG to 4 AWG - Input/(5) 16 AWG to 10 AWG - Load

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Fuse Type: ATO/ATC
    • Type: Fuse Blocks
    • Box Dimensions: 3"H x 8"W x 8"L WT: 0.65 lbs
    • UPC: 632085050566
