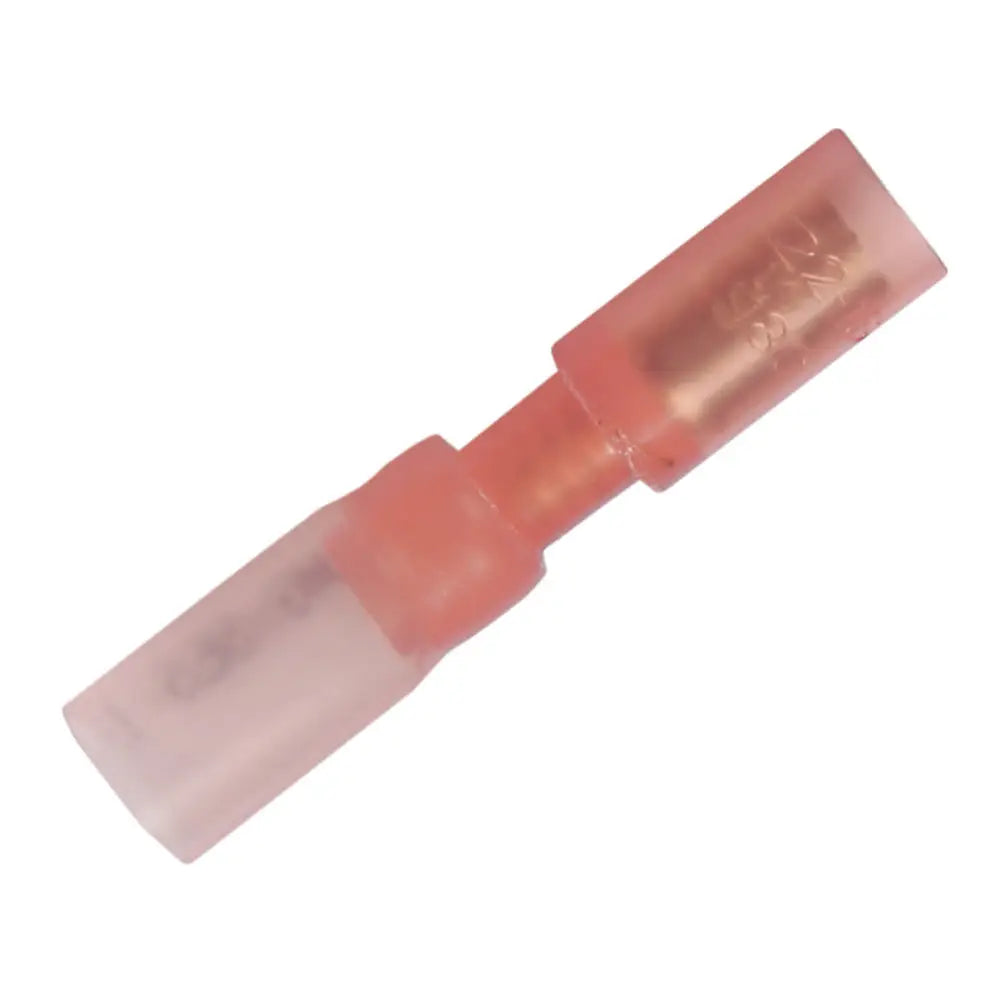

• Pacer 22-18 AWG Heat Shrink Female Bullet Terminal - 100 Pack [TBRE18-156-100]
1 1

Pacer 22-18 AWG Heat Shrink Female Bullet Terminal - 100 Pack [TBRE18-156-100]

$53.89
$81.21
$53.89
Shipping calculated at checkout.

SKU: CWR-99371   UPC: 840248207263

[COUNT] shoppers are looking at this right now
  • Hurry, only 17 items left in stock!

22-18 AWG Heat Shrink Female Bullet Terminal - 100 Pack

Disconnects are a type of terminal intended to be disconnected and reconnected multiple times. This makes them ideal for use where field serviceability is an issue. Disconnects are a great way to protect electrical connections. Whether dealing with mechanical abuse, wire pull-out, or abrasion, they are a solid choice for longevity. Disconnects are sometimes known as quick connects or slip-on connectors.

Features:

  • Female bullet terminal
  • Protects terminations from water, condensation, salt spray, and corrosion
  • Added vibration protection in rugged environments
  • Disconnect & reconnectable
  • Creates solid connections
  • Meets multiple compliances

Benefits:

  • Environmentally sealed
  • Built for durability
  • Tinned Copper
  • Long Lasting
  • Easy to install

Characteristics:

  • Insulation Color: Red
  • Wire AWG: 22-18 AWG
  • Package Size: One-hundred included
  • Bullet Terminal Size (inch): 0.156"
  • Shrink Ratio: Approximately 3:1 at 135 °C
  • Operating Temperature: -55 °C - 125 °C
  • Volume Resistivity: 1015 Ohm-cm3
  • Dielectric Strength: 900-V/mil
  • Voltage Rating: 600-V

Specifications:

  • Gauge: 22-18 AWG
  • Heat Shrink: Yes
  • Package Qty: 100
  • Type: Disconnects
  • Box Dimensions: 1"H x 3"W x 7"L WT: 0.35 lbs
  • UPC: 840248207263

Quick Guide (pdf)
