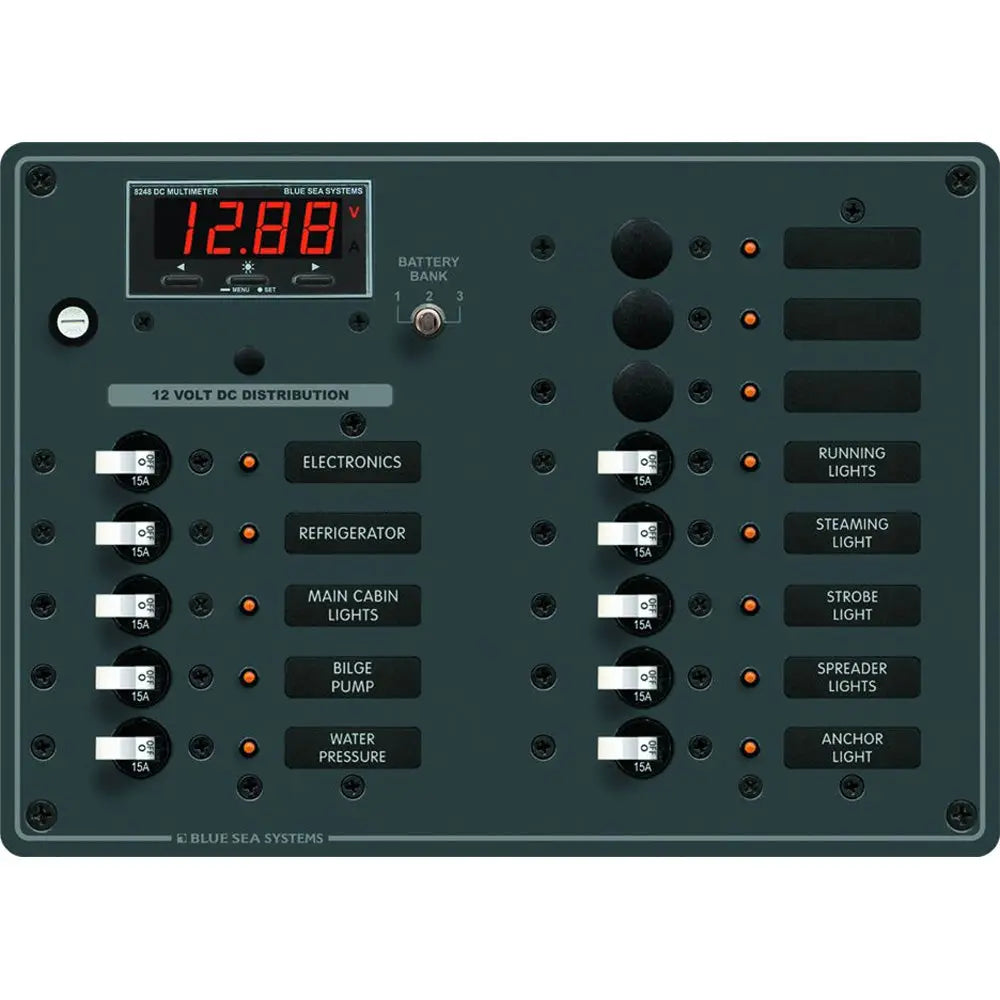

Blue Sea 8403 DC Panel 13 Position w/ Multimeter [8403]

Panel DC 13 Position w/ Multimeter

• Voltage 12/24v

• Amperage 100A

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 12/24v
• Max Breaker Quantity: 13
• AC/DC: DC
• Box Dimensions: 6"H x 9"W x 12"L WT: 5 lbs
• UPC: 632085084035
