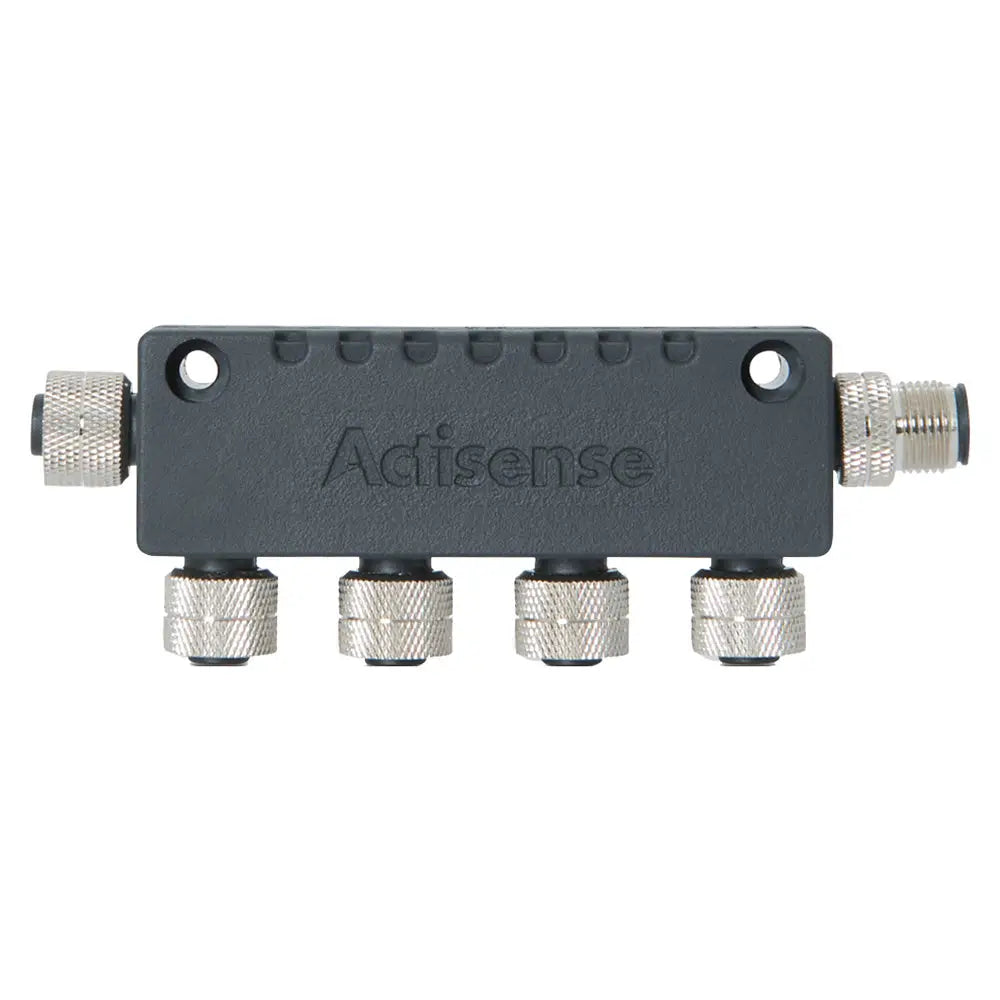

    N2K Micro 4 Way T-Piece

    The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces, and costs less than four.

    The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

    Features:

    • NMEA 2000 Approved
    • RoHS Compliant

    Specifications:

    • Rated Current: 4A
    • Rated Voltage: 60V DC
    • Male Contact: Brass, gold plated
    • Female Contact: Phosphor bronze, gold plated
    • Contact Carrier: PA66 (30% Glass filled), black
    • Contact Polarization: Standard M12 -“A”- polarization
    • Mating Thread: M12
    • Screw Cap: Brass, nickel plated
    • O-Ring Seal: Rubber, Black
    • Housing: TPU, flame retardant to UL94V-0, Halogen Free
    • Internal Housing Shield: Copper Foil
    • Weight: 105g
    • Protection: IP67 (when mated)
    • Operating Temperature: -20°C to +70°C
    • Storage Temperature: -40°C to +85°C

    Quick Guide (pdf)
