• Airmar B60 Bronze Thru-Hull Transducer w/Humminbird
1 1

Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20 [B60-20-HB]

$389.00
$429.99
$389.00
Shipping calculated at checkout.

SKU: CWR-65252   UPC:

[COUNT] shoppers are looking at this right now
  • Hurry, only 2 items left in stock!

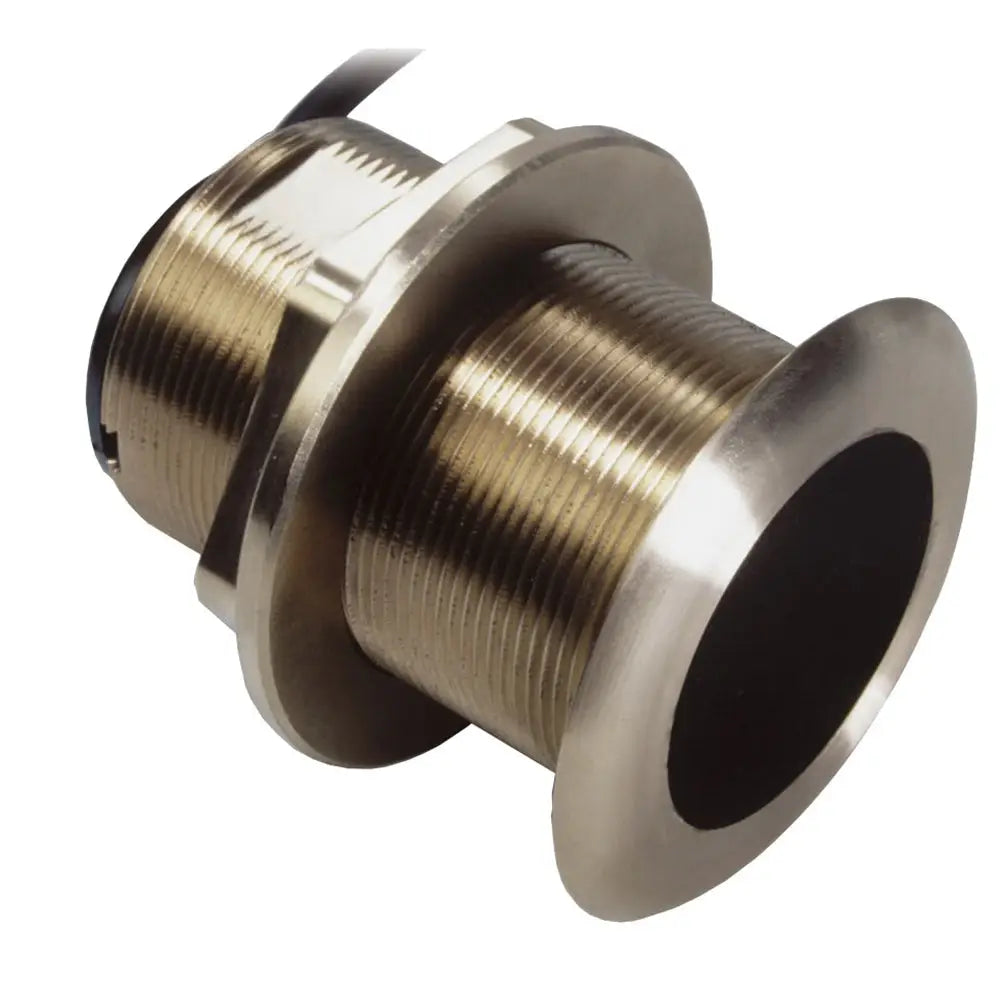

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20º


The bronze B60-20º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

  • Engineered for center-console and trailered boats
  • Low-profile protrusion below the hull
  • No affect on your boats running performance
  • Arrow on cap points toward keel when installed
  • Built-in temperature sensor
  • Boat Size: Up to 8 m (25')
  • Bronze transducer housing

Specifications:

  • Weight: 1.4 kg (3 lb)
  • Hull Deadrise: Up to 24°
  • Acoustic Window: Urethane
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Temperature: Yes
  • Mounting Style: Thru-Hull
  • Pins: 7
  • Box Dimensions: 5"H x 6"W x 10"L WT: 3.5 lbs

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
