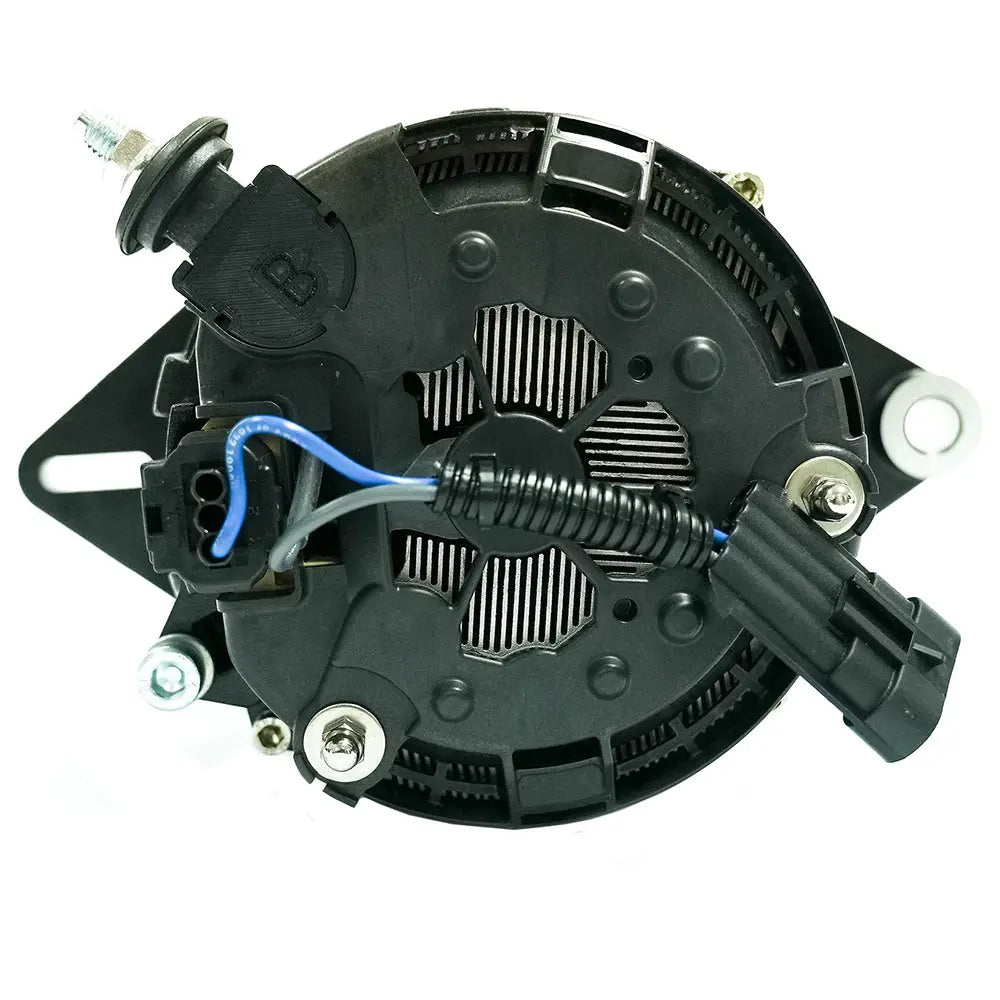

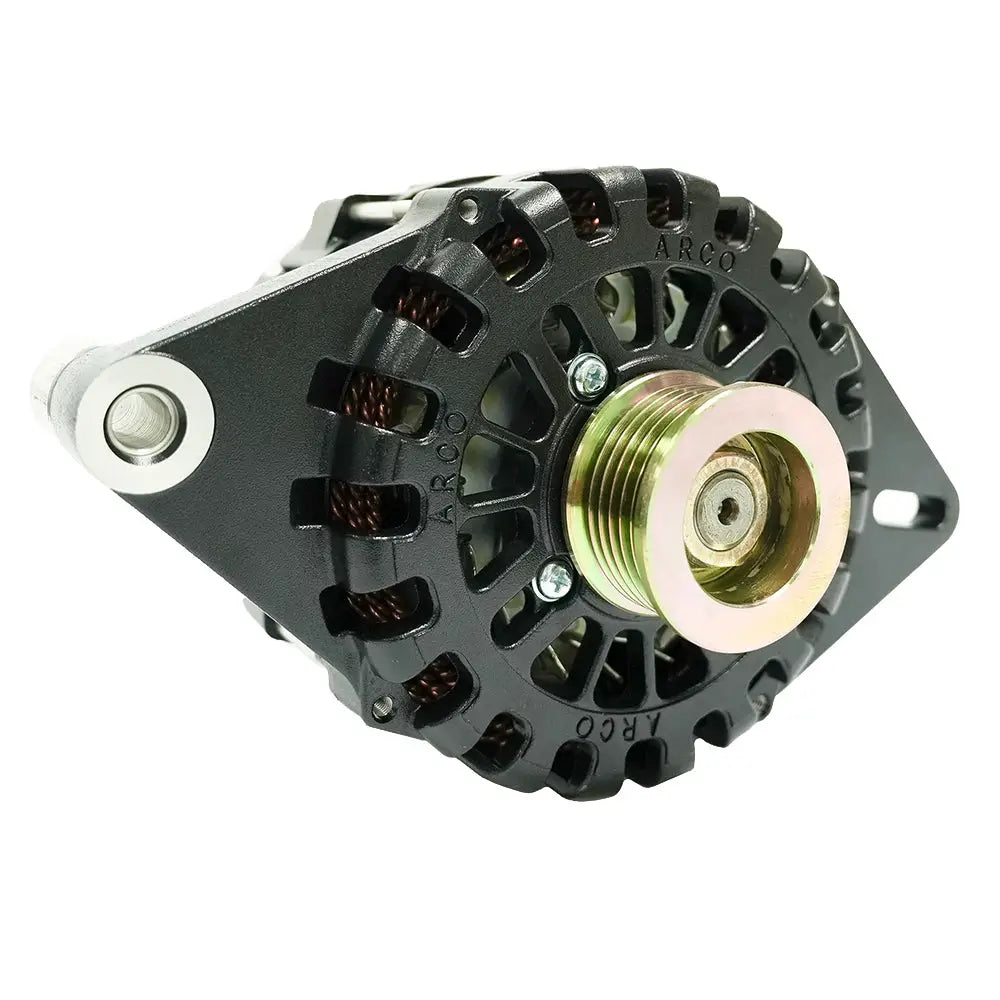

    Zeus A275L 1"-2" Single Foot Alternator with Isolated Ground & Terminal Block

    The highest power output alternator in its size/class.

    Features:

    • Engineered for high energy production.
    • Suitable for marine, RV, military, and commercial applications.
    • Rapidly charges large battery banks.
    • Coolest operating temperatures for increased performance.
    • Heat shedding coatings
    • Rectifier located on housing exterior
    • Dual cooling fans
    • OEM components
    • Optimized for performance at idle speeds.
    • Reduces the need for a generator by creating additional power with your engine.
    • Unleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage output.
    • Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
    • SAE J1171 Certified.
    • Models available with internal/external voltage regulator.
    • Proudly made in the U.S.A.

    Technical Specifications:

    • Voltage - 12v
    • Field Type - P
    • Rotor Poles - 16
    • Stator Size - 138mm
    • Frame Size - Large
    • Weight - 14.9 lbs/6.7 kg
    • Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
    • Output Voltage - 14.1v (Default)
    • Finish - (Black) Cerakote or E-coating
    • Cut-In RPM - 1,061 Alternator RPM
    • Maximum Alt RPM - 19,000
    • Battery Post - M8 Thread Post, Side Mount
    • Standard Pulley - 49K6 (6-groove, 49mm)
    • Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
    • Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
    • Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
    • Max Output (Cold, 9,000 RPM) - 311 Amps
    • Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
    • Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
    • Max Continuous Operating Temperature - 110°C / 230°F

    Mounting Application:

    • Replaces most domestic styles using a single 1" or 2" mounting foot (e.g., Motorola, Prestolite). Requires Standard single "V" belt upgrading to a double "V" belt or Serpentine System

    Quick Guide (pdf)
    Brochure (pdf)
