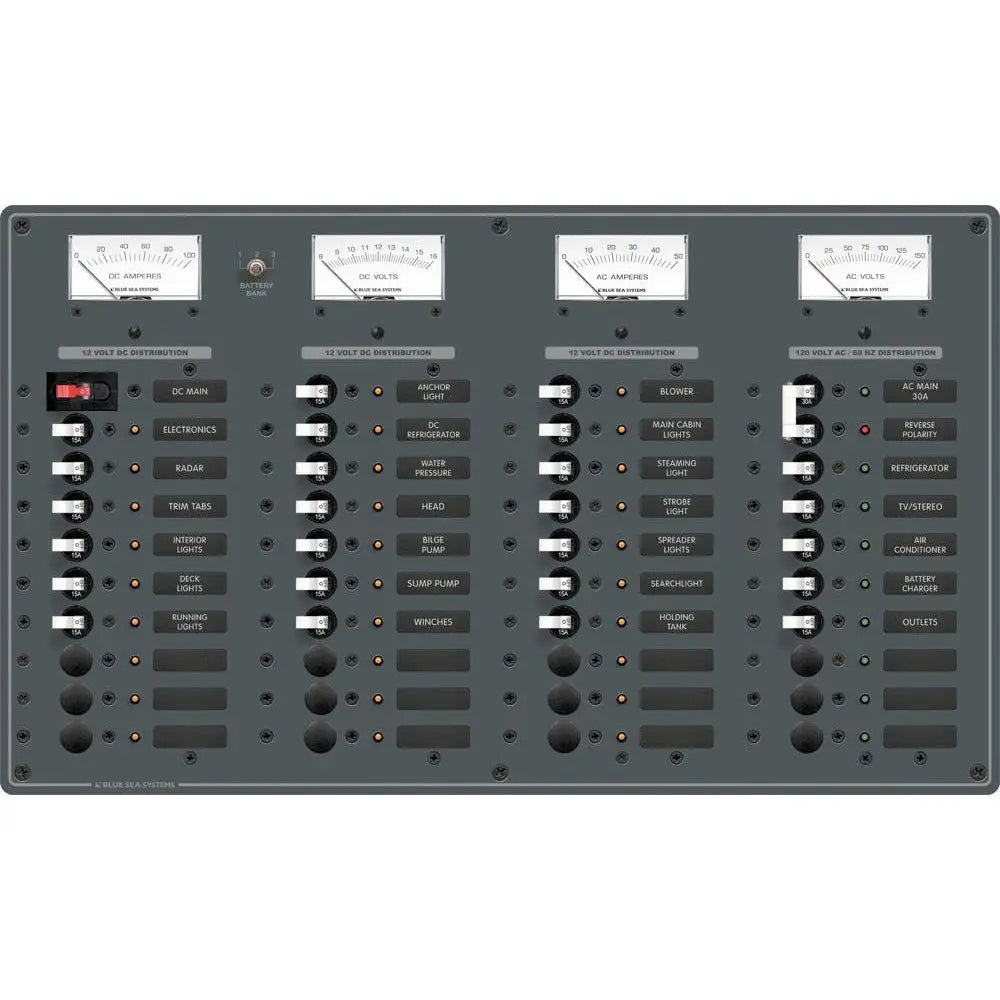

• Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches) [8095]
1 1

Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches) [8095]

$1,544.89
$2,401.99
$1,544.89
Shipping calculated at checkout.

SKU: CWR-20699   UPC: 632085080952

[COUNT] shoppers are looking at this right now
  • Hurry, only 3 items left in stock!

AC Main +8 Positions / DC Main +29 Positions

PN:   8095
White Switches

  • Includes set of 30 common AC and 30 common DC labels
  • All AC and DC buses installed, fully pre-wired
  • Label backlighting pre-installed
  • All LEDs installed
  • Maximum panel Amperage
    • 100 Amperes DC
    • 50 Amperes AC

AC Features
  • Red reverse polarity indicating LED
  • 9353, 0-150 Volt AC Voltmeter
  • 9630, 0-50 Amp AC Ammeter

DC Features
  • 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
  • 8003, 8-16 Volt DC Voltmeter
  • 8017, 0-100 Amp DC Ammeter
  • Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:
  • AC Positions: Source Selectors +8
  • DC Positions: Main +29
  • 120 Volts AC
  • 12 Volts DC
  • (1) 30A - (5) 15A AC Circuit Breakers
  • (1) 100A - (20) 15A DC Circuit Breakers

Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards



WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Max Breaker Quantity: 8 AC / 29 DC
  • AC/DC: Both
  • Voltage: 120v/12v
  • Box Dimensions: 7"H x 15"W x 22"L WT: 8 lbs
  • UPC: 632085080952

Quick Guide (pdf)
