• Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300 [E66086]
1 1

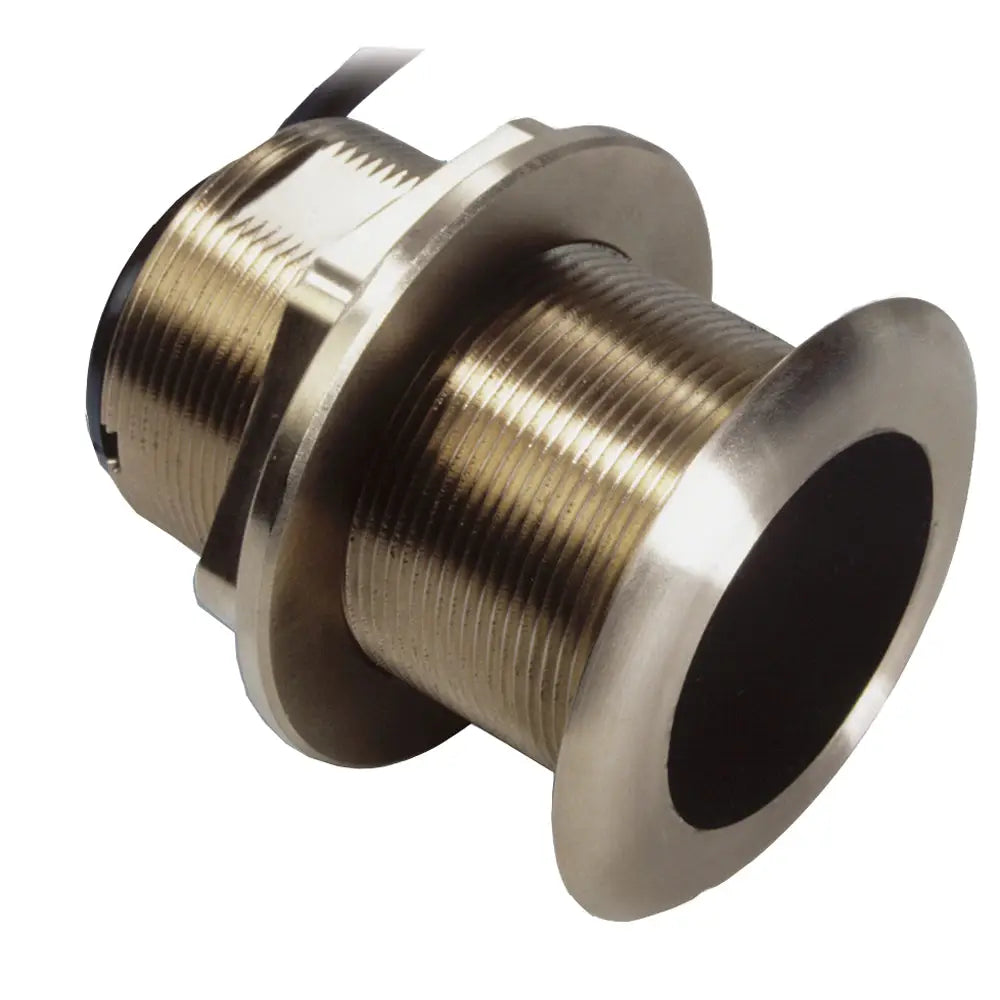

Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300 [E66086]

$389.00
$429.99
$389.00
Shipping calculated at checkout.
[COUNT] People are currently viewing this product.

    B60 Tilted Element™ 12°

    12° titled version is designed for 8° - 15° deadrise angles

    For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300


    The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

    Features:

    • Depth/Temp
    • 50/200 kHz
    • 600w RMS
    • Mid-performance
    • Bronze

    Specifications:

    • Temperature: Yes
    • Speed Included: No
    • Mounting Style: Thru-Hull
    • Imagining: Standard
    • Chirp: No
    • Cable Length (Feet): 33'
    • Box Dimensions: 4"H x 8"W x 11"L WT: 5 lbs
    • UPC: 723193660867

    Owner's Manual (pdf)
    Brochure (pdf)
