Description

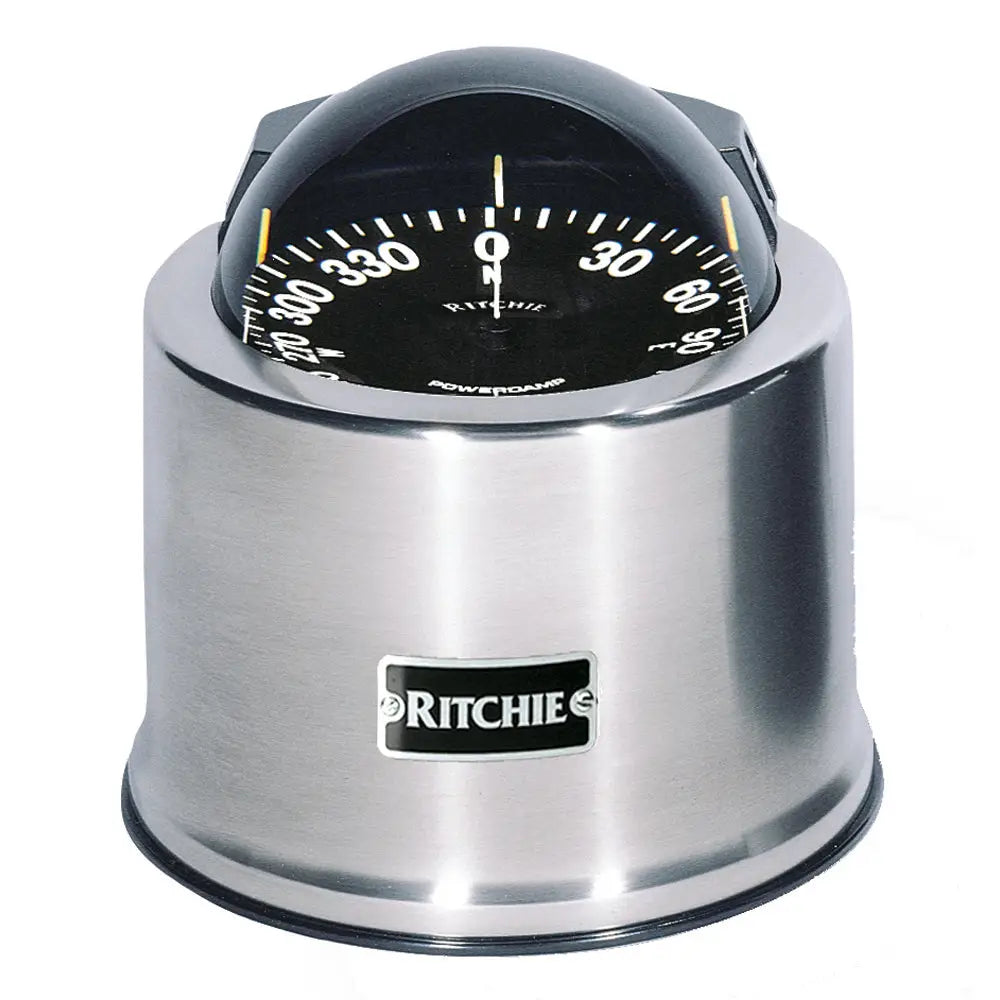

Globemaster Compass
Features:
- 5″ (127 mm) Open Face Dial
- Choice of 2 Degree, 2 Degree with Points or 5 Degree Dial
- Brushed Stainless Steel or Black Wrinkle Finish
- Easily Installed
- Ideal for both Power and Sailboats
- Lightweight/Easy-to-Align Mounting Base Fits all Popular Sailboat Pedestals
- 45 and 90 Degree Lubber Lines for Easy Reading
- Full Internal Gimbals
- 12V Green LED lighting Standard
- Built-in Compensators
- Weather Shield Available – Model No. WS-P
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 6lbs (2.72 kg)
Notes:
12v lighting standard - 24 & 32v lighting options are available.
This compass conforms with ISO 10316(E) and ISO 613:2000(E) standards.
Specifications:
- Read: Rear
- Mounting Style: Pedestal
- Lubber Lines: Yes
- Backlight: Yes
- Box Dimensions: 9"H x 10"W x 11"L WT: 5.9 lbs
- UPC: 010342050397
Quick Guide (pdf)Owner's Manual (pdf)
