Airmar B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin [B117-DT-HB]

Regular price
$319.99
Regular price
$359.99
Sale price
$319.99
Shipping calculated at checkout.

SKU: CWR-65259   UPC:

[COUNT] shoppers are looking at this right now

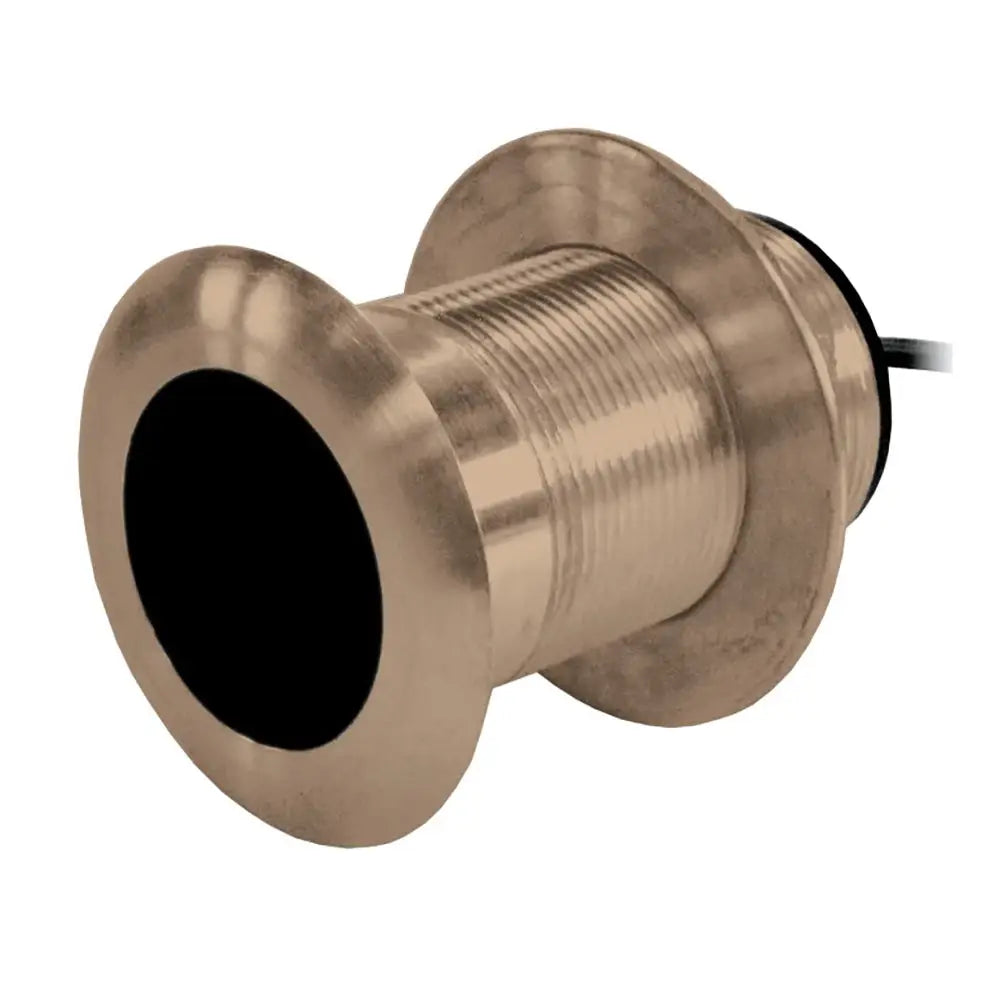

    B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin

    The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.

    Features

    • Industry standard for low-profile transducers
    • Depth and temperature
    • Good target detail in shallow-water at 200 kHz and good deep-water bottom tracking at 50 kHz
    • Right angle cable exit offers low headroom and protection when transducer is stepped on
    • Included rubber washer allows tightening of the hull nut to irregular hull surfaces
    • Housings are ABYC H-27 compliant
    • Optional temperature sensor
    • Bronze transducer housing
    • Boat Size: 8M (25') and up

    Specifications:

    • Weight: Bronze - 0.9 kg (2.0 lb)
    • Hull Deadrise: Up to 8°
    • Acoustic Window: Urethane
    • Hole Diameter: 51mm (2")
    This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

    Specifications:

    • Mounting Style: Thru-Hull
    • Temperature: Yes

    Quick Guide (pdf)
    Owner's Manual (pdf)
    Brochure (pdf)
