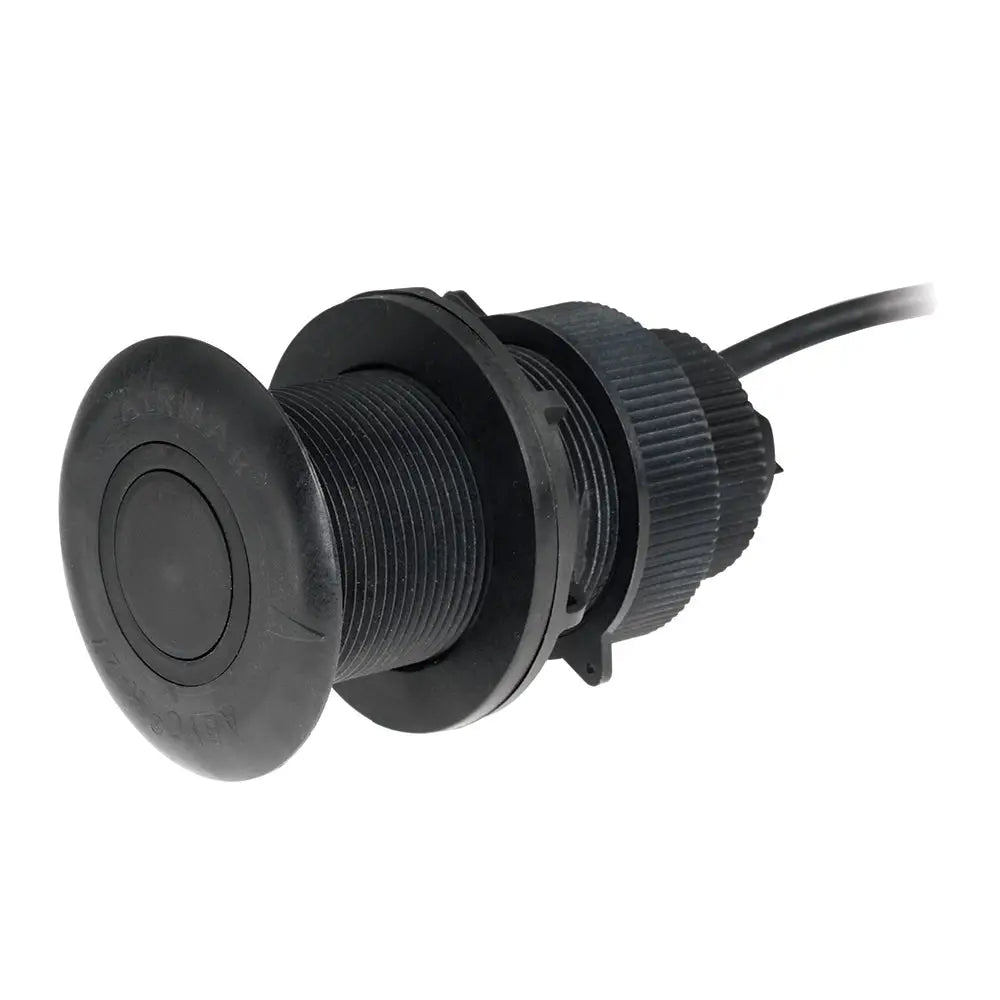

• Airmar DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20 [DT820PV-235-N2]
1 1

Airmar DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20 [DT820PV-235-N2]

$434.91
$479.99
$434.91
Shipping calculated at checkout.

SKU: CWR-70692   UPC: 801769002485

[COUNT] shoppers are looking at this right now

    DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20°

    • Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20°
    • Frequency: 235 kHz, Cone: 12°, Power: 100 Watts RMS
    • Connector: 5-Pin NMEA 2000

    Features:

    • Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing
    • Tilted Element Transducer – unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion
    • Available in fixed 0°, 12° or 20° tilt – perfect for power and sail boat applications
    • Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds
    • Designed with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity
    • Smart™ Sensor with embedded microelectronics – transducer element and signal processor are only millimeters apart
    • 235 kHz frequency prevents mutual interference with other echo sounders on vessel
    • Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing

    Specifications:

    • Mount: Thru-hull
    • Fixed Element Tilt Angle: 20° (for 16° - 24° hull deadrise)
    • Housing Material: Plastic
    • Connector: 5-pin NMEA 2000®
    • Cable Length: 20 ft.
    • Frequency: 235 kHz
    • Cone: 12°
    • Power: 100 Watts RMS
    • Depth Sensor Range: 1.6 - 594 ft.
    • Acoustic Window Material: Urethane
    • Compatible Hull Materials: Fiberglass or metal
    • Hole Diameter for Installation: 2"
    • Dimensions: 4.92" H x 2.94" OD
    This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
