AMEC B620WS Class B AIS Transceiver w/WI-FI & VHF Splitter - 2W CSTDMA, NMEA2000, NMEA 0183, USB

B620WS Class B AIS Transceiver with WI-FI VHF Splitter - 2W CSTDMA, NMEA2000, NMEA 0183, USB

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required, along with the vessel master or owners signature on the completed programming form.**

Click here to download form.

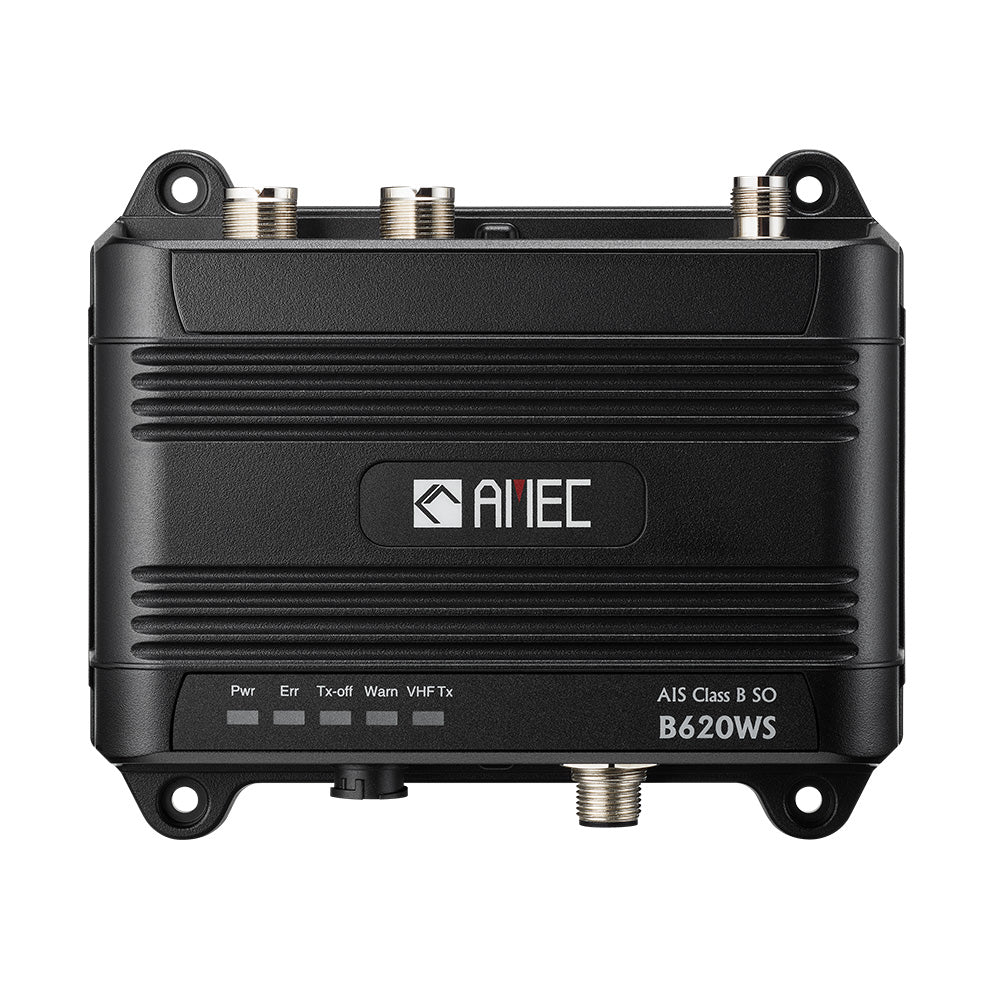

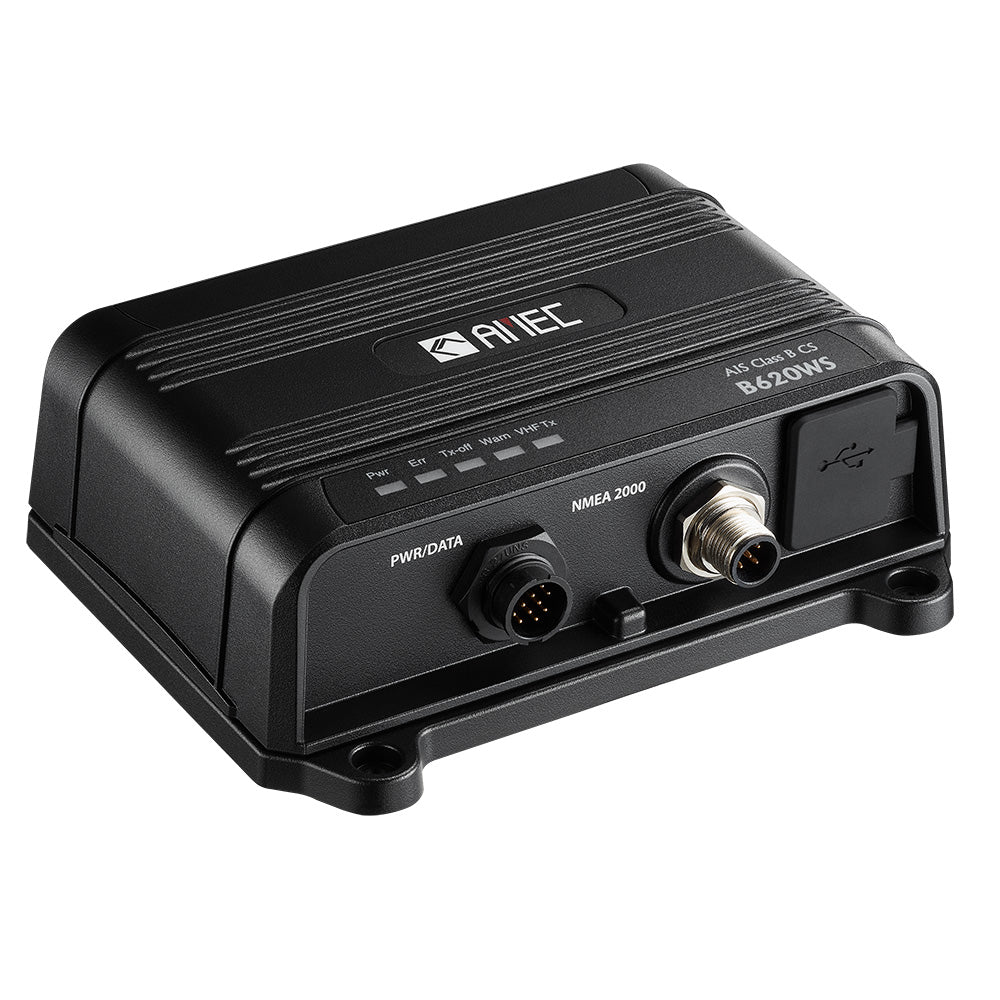

The B620WS is the B620 variant with built-in 802.11 b/g/n long-range Wi-Fi and a zero insertion loss antenna splitter module. The B620WS is the most sophisticated model in the B620 series, building on the superior performance of the B620 platform. It is compact, durable, easy to install, and operate with ultra-low power consumption to keep you alerted.

Features:

• Built-in Wi-Fi and VHF Splitter
• Fully approved for global deployment (CE, FCC, ISED)
• AMECs 3rd-gen AIS engine unleashes unparalleled performance, power efficiency, and reliability
• Constant self-health test with intuitive LED indicators
• Cutting-Edge Software Defined Radio technology and a high-performance dual-channel receiver ensure maximum AIS message processing and reception
• Certified EMI protection to prevent interference from onboard electronics
• Advanced 72-channel high-speed GNSS receiver supporting GPS, Galileo, Beidou, or GLONASS
• Compact and lightweight for easy installation with versatile NMEA 2000, NMEA 0183, and USB connection interface
• IP68 waterproof standards

Powered by AMECs 3rd-gen AIS engine, the B620 series unleashes superlative AIS performance, best-in-class receiving sensitivity of -111dBm and worlds lowest power consumption.

B620 incorporates NMEA 2000 to enable quick installation and interoperability with other bridge systems. Its dual NMEA 0183 ensures easy integration with legacy board devices. PC/Mac based navigation program can be connected to B620 through its USB port.

Robust from electrical to mechanical design, built to endure for years to come.
