Autel EVO II 640T Rugged Bundle V1 (Used)

Autel EVO II 640T Rugged Bundle V1 (Used): Dual-Sensor Radiometric Thermal and 8K Imaging Drone

The Autel EVO II Dual 640T V1 is a professional foldable drone that combines two imaging systems in a single gimbal-stabilized payload: a radiometric uncooled VOx microbolometer delivering 640×512 thermal video at 30 Hz, and a 1/2-inch CMOS visual camera capturing 48 MP stills and 8K video at 7680×4320.

The "T" in 640T stands for radiometric — meaning this is not a display-only thermal camera, but a system that records an absolute temperature value for every pixel in every frame, stored in the .irg file format for post-flight analysis in the Autel Thermal Analysis Tool on Windows PC. Temperature measurement ranges from -10°C to +150°C with ±3°C accuracy, thermal and visual data are collected simultaneously in a single flight pass, and Picture-in-Picture, Blending, Infrared, and Visible display modes are selectable in real time through the Autel Explorer App.

Key Features and Benefits

• Radiometric thermal sensor: 640×512 uncooled VOx microbolometer records per-pixel temperature data at 30 Hz.
• 8K visual camera: 1/2-inch CMOS with 48 MP stills and 7680×4320 video in one platform.
• Simultaneous dual-sensor capture: thermal and visual data collected in a single flight pass.
• Temperature measurement: -10°C to +150°C with ±3°C accuracy at 2–20 m measurement range.
• Up to 16× digital zoom: thermal feed zoom for target identification at extended distances.
• Picture-in-Picture mode: thermal and visual imagery overlaid for real-time situational awareness.
• 40-minute flight time: extended endurance for thorough inspection and search coverage.
• 9 km transmission range: Autel SkyLink V1 digital HD link for stable signal at distance.
• Radiometric output: TIFF + JPG with .irg file captures full per-pixel temperature data for analysis.
• Verified like-new condition: DSLRPros-inspected for thermal accuracy, flight performance, and firmware.

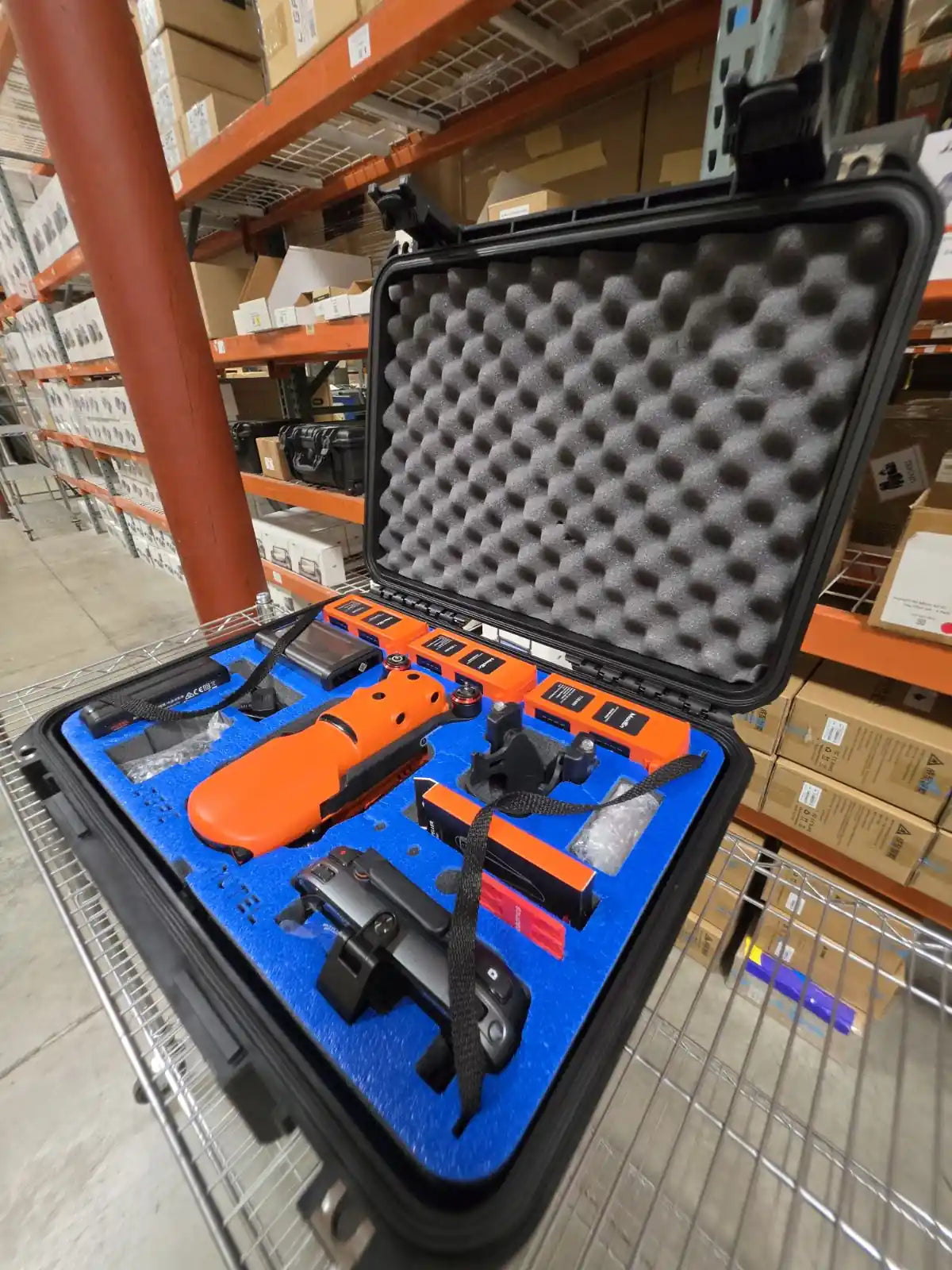

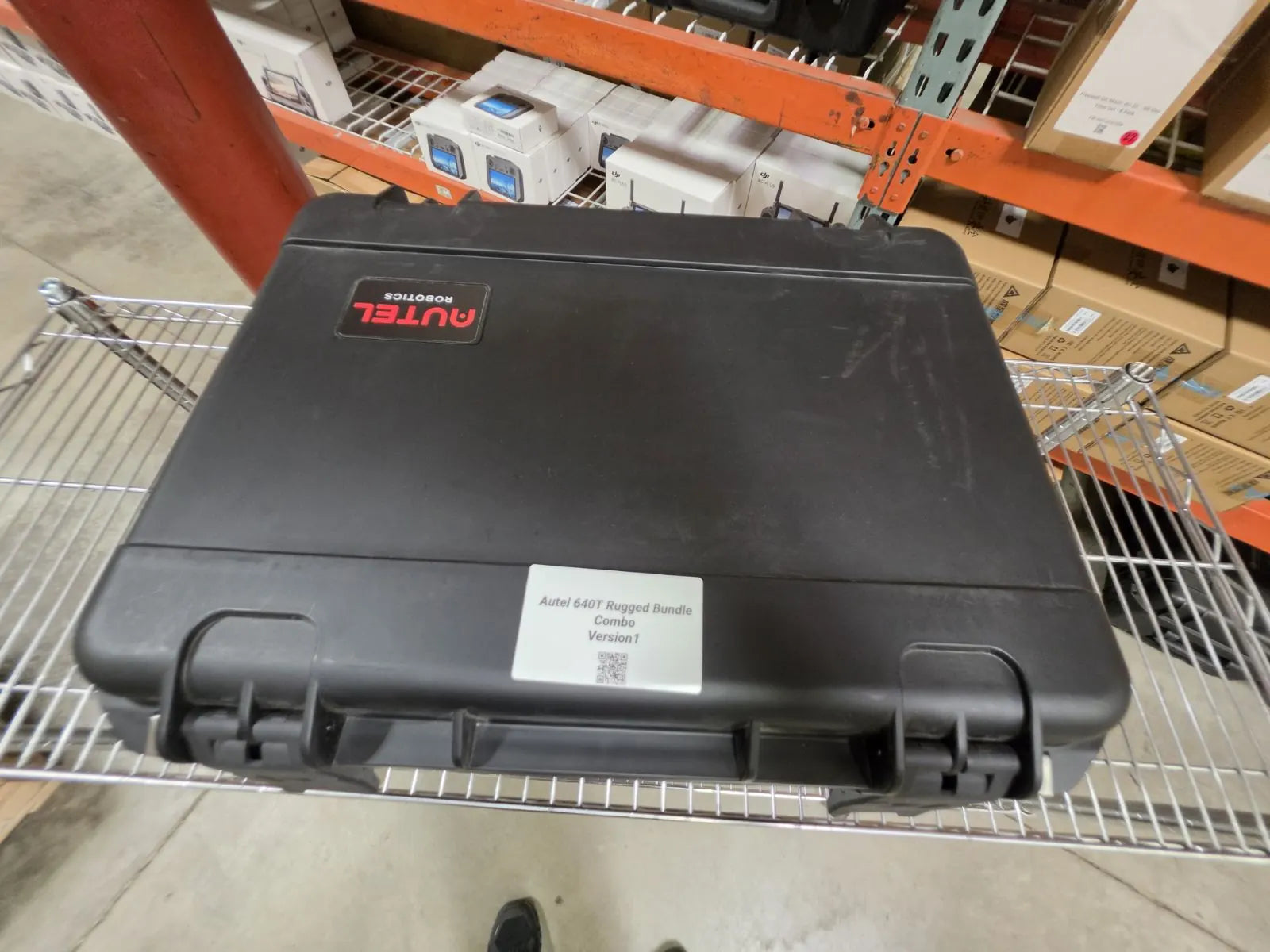

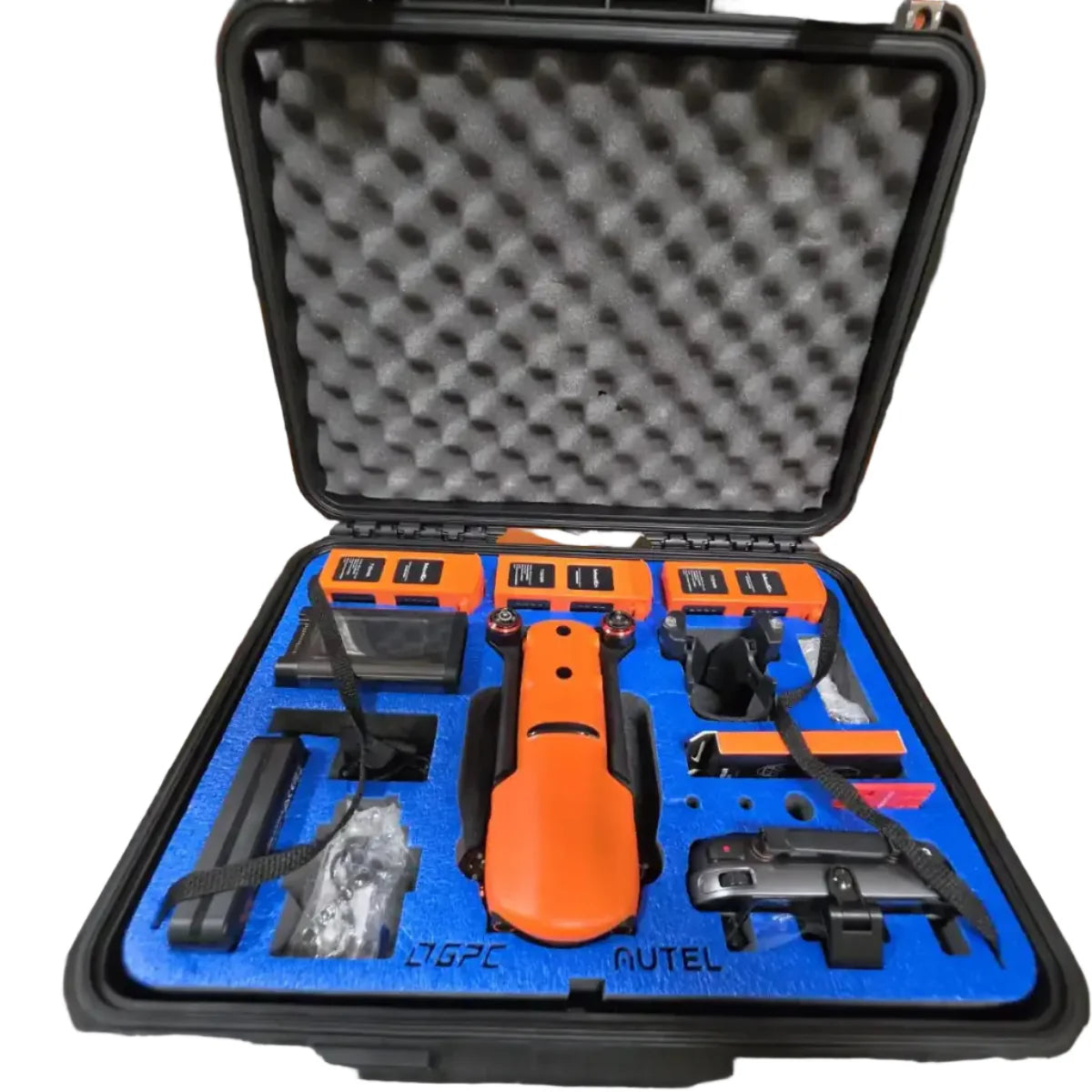

This bundle has been professionally inspected, tested, and verified in like-new condition by DSLRPros technicians, and ships with four intelligent flight batteries, a charging hub, propellers, an Autel EVO II Lighting System, and a hard case.

The 640T V1 platform delivers 40 minutes of flight time at up to 45 mph with a 9 km transmission range via the Autel SkyLink V1 digital HD link, and 12-direction 360° obstacle avoidance for confident operation across complex inspection sites, search grids, and incident scenes.

GPS + GLONASS dual-constellation positioning supports accurate autonomous modes — Dynamic Track, Orbit, Waypoint, and Viewpoint — alongside Return-to-Home and Precision Hover. For first responders, infrastructure inspectors, and public safety operators who need a verified, complete radiometric thermal imaging system without new-unit lead times, this bundle delivers an immediate path to operational capability.

Radiometric Thermal Data — Built for Analysis, Not Just Visualization

The distinction between a display-only thermal camera and a radiometric one matters operationally. A display-only thermal system shows a heat-map visualization in real time but does not record temperature values — what the operator sees on screen cannot be quantified or analyzed after the fact.

The EVO II Dual 640T V1's radiometric sensor records an absolute temperature value for every pixel in every frame, stored in the .irg file that the Autel Thermal Analysis Tool reads on Windows PC. Post-flight, operators can identify precise temperature values at any point in the image, generate temperature trend data, flag fault locations, and produce documentation-ready reports.

The 10 selectable thermal palettes give real-time display flexibility for different mission types, while Picture-in-Picture and Blending modes keep spatial context visible alongside the thermal feed — connecting the heat data to the physical scene it came from.

Compatibility and System Integration

• Autel Explorer App: iOS and Android flight management, camera control, and thermal display mode selection.
• Autel Thermal Analysis Tool: Windows PC software for post-flight radiometric data analysis and reporting.
• Autel SkyLink V1: digital HD transmission system; V1 controller included and pre-paired to aircraft.
• EVO II intelligent batteries: 7,100 mAh, 22.8V Li-polymer; four units included in this bundle.
• EVO II charging hub: sequential multi-battery charging; included in this bundle.
• microSD storage: supports cards up to 256 GB for extended dual-sensor recording sessions.
• V1 firmware: validated for V1 platform compatibility prior to DSLRPros verification and shipment.

Applications and Use Cases

• Search and rescue: radiometric thermal detects heat signatures in darkness, smoke, and dense vegetation.
• Fire response: identify hotspots, map fire perimeters, and track progression in real time from altitude.
• Law enforcement: enhanced situational awareness and subject detection in low-visibility conditions.
• Infrastructure inspection: detect heat loss, insulation failures, and component stress in structures.
• Electrical and solar inspection: identify overheating components, panel faults, and temperature anomalies.
• Public safety documentation: simultaneous 8K visual and radiometric thermal capture for incident records.
• Environmental monitoring: detect thermal signatures for wildlife tracking and ecosystem health surveys.

The EVO II Dual 640T V1 is a platform with a clear operational identity: simultaneous radiometric thermal and 8K visual imaging in a foldable, field-deployable aircraft that supports the missions where temperature data — not just thermal imagery — is what the deliverable requires. This verified used bundle makes that capability accessible with a complete, technician-confirmed kit ready to deploy from the hard case it ships in.

DSLRPros has been supporting professional UAV operators across public safety, inspection, and enterprise applications for decades, and our used equipment verification process applies the same technical standards to pre-owned inventory that we apply to new systems.

Every unit in this listing has been inspected for thermal sensor accuracy, flight performance, GNSS reliability, and firmware compatibility before it ships. Order the Autel EVO II 640T Rugged Bundle V1 through DSLRPros and receive a mission-ready radiometric thermal imaging system backed by our verification process.

Contact DSLRPros today to confirm availability and place your order.
