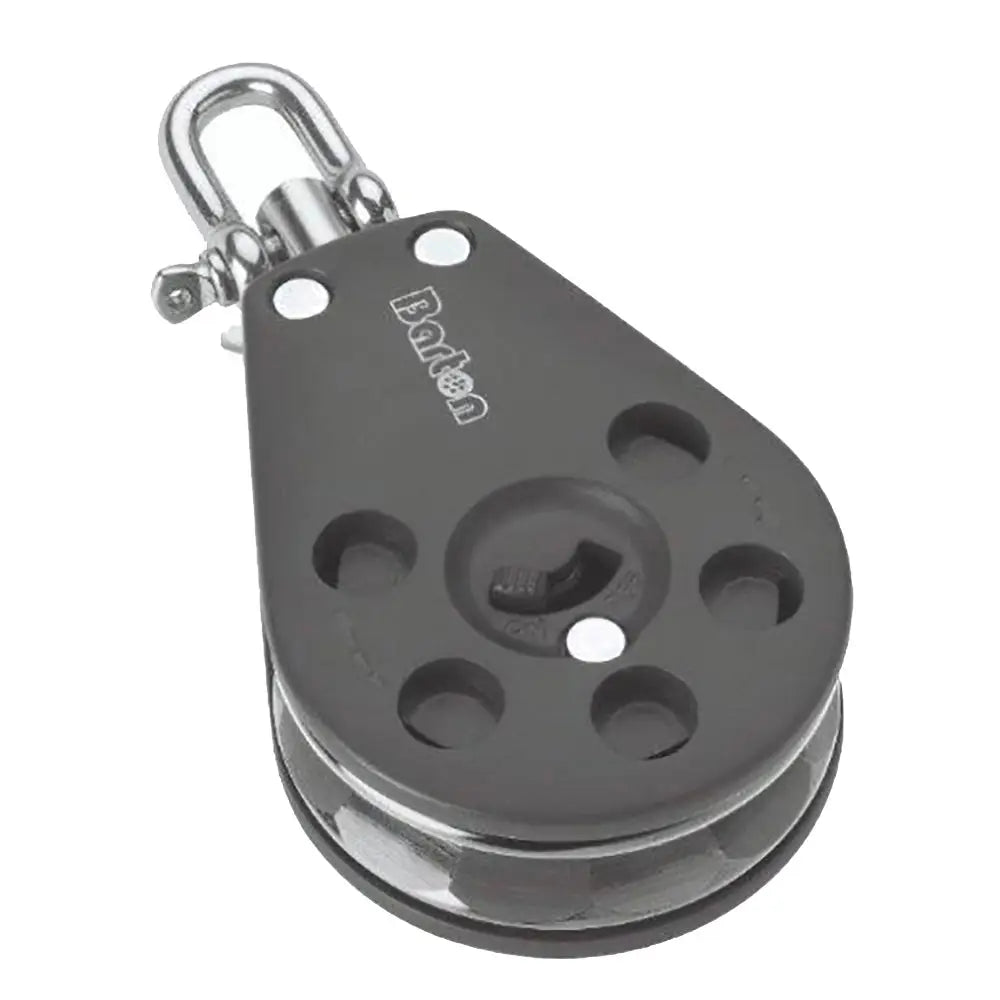

Barton Marine Ratchet Block - 55mm [90500]

Description

Ratchet Block - 55mm

The Barton Ratchet Block is designed to be used on mainsheet systems and spinnaker sheets on dinghies and keelboats and for small yachts up to 30 feet.

Combining high-performance engineering and contemporary design, the 2-3/16" (55 mm) ratchet block is the first in a planned range of sizes, it also offers a stainless steel lever that locks the swivel head if desired.

The new Ratchet Block allows sailors to easily handhold loaded lines and offer a balance between holding power and controlled easing.

Designed for low friction and longevity in harsh marine environments, the Ratchet Block body is manufactured from a composite of high-density nylon and glass fiber reinforced polymer with a high level of UV protection. Internal components are of marine grade 316 stainless steel and the 12 faced aluminum sheave is anodized in gunmetal silver

Technical Specifications:

  • Safe Working Load - 661 lb (300 kg)
  • Breaking Load - 2,646 lb (1,200 kg)
  • Maximum Rope Diameter - 3/8" (10 mm)
  • Weight - 4.8 oz (135 grams)

*Sold as an Individual

Product form

Ratchet Block - 55mmThe Barton Ratchet Block is designed to be used on mainsheet systems and spinnaker sheets on dinghies... Read more

SKU: CWR-99724
Barcode: 5035088085286

$98.99$85.95 Excl. VAT

  • Tell a unique detail about this product
  • Shipped today? Order within: Apr 25, 2024 23:59:00 -0400

Description

Ratchet Block - 55mm

The Barton Ratchet Block is designed to be used on mainsheet systems and spinnaker sheets on dinghies and keelboats and for small yachts up to 30 feet.

Combining high-performance engineering and contemporary design, the 2-3/16" (55 mm) ratchet block is the first in a planned range of sizes, it also offers a stainless steel lever that locks the swivel head if desired.

The new Ratchet Block allows sailors to easily handhold loaded lines and offer a balance between holding power and controlled easing.

Designed for low friction and longevity in harsh marine environments, the Ratchet Block body is manufactured from a composite of high-density nylon and glass fiber reinforced polymer with a high level of UV protection. Internal components are of marine grade 316 stainless steel and the 12 faced aluminum sheave is anodized in gunmetal silver

Technical Specifications:

  • Safe Working Load - 661 lb (300 kg)
  • Breaking Load - 2,646 lb (1,200 kg)
  • Maximum Rope Diameter - 3/8" (10 mm)
  • Weight - 4.8 oz (135 grams)

*Sold as an Individual
