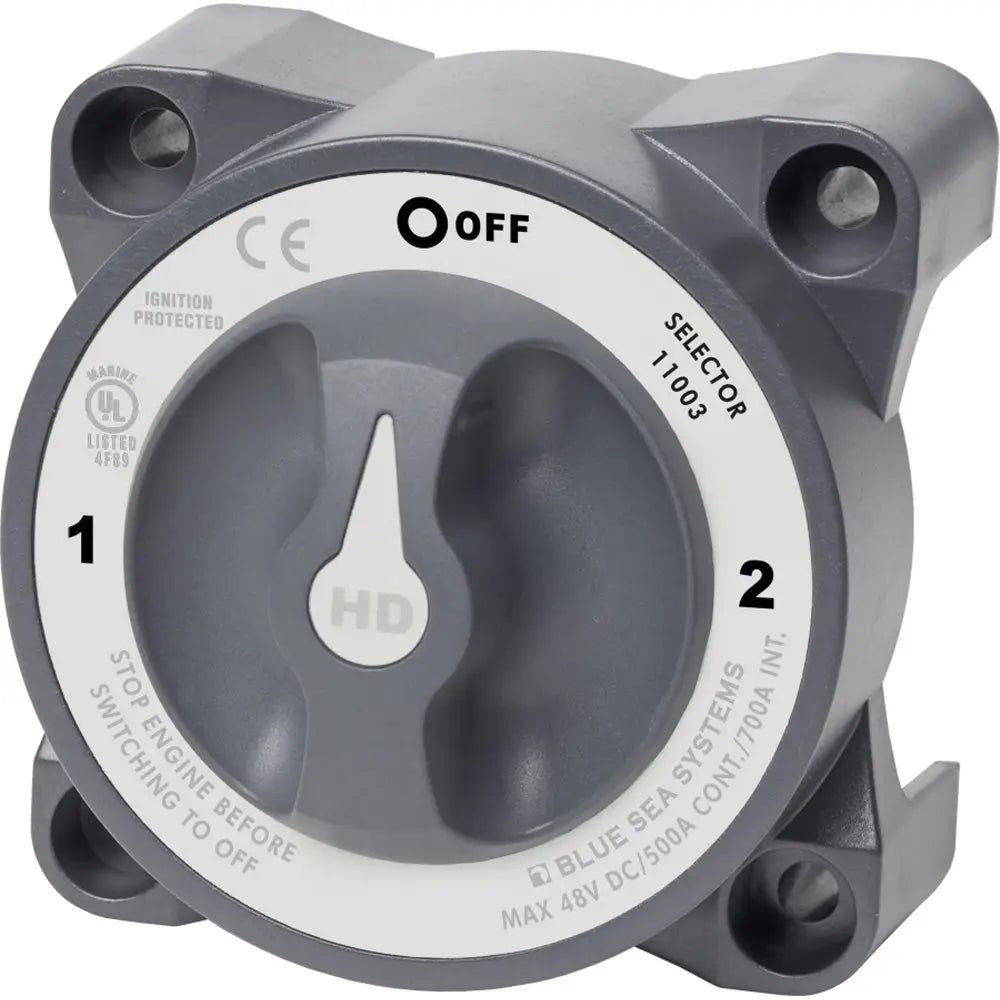

Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position [11003]

Regular price
$100.89
Regular price
$155.99
Sale price
$100.89
Shipping calculated at checkout.

SKU: CWR-34970   UPC: 632085110031

[COUNT] shoppers are looking at this right now
  • Hurry, only 16 items left in stock!

11003

Features:

  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
  • Ignition protected safe for installation aboard gasoline powered boats

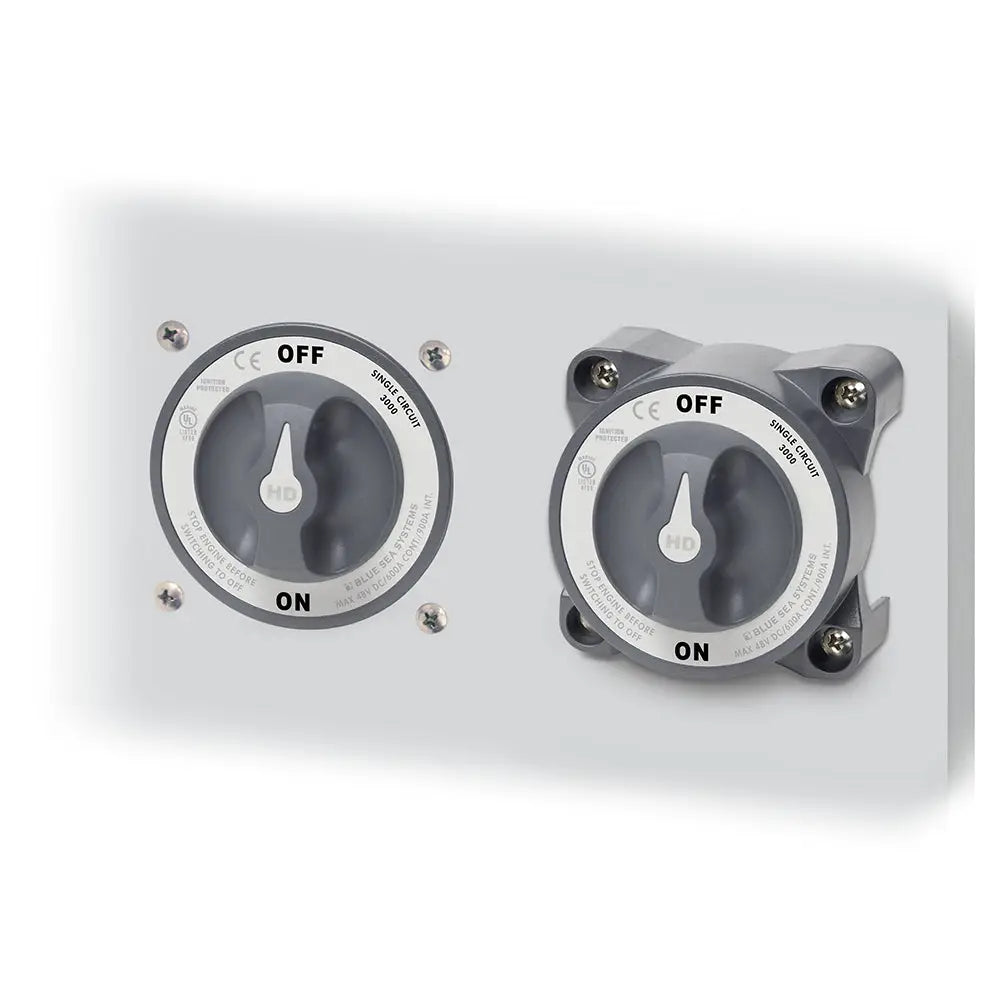

  • Case design allows surface or rear panel mounting

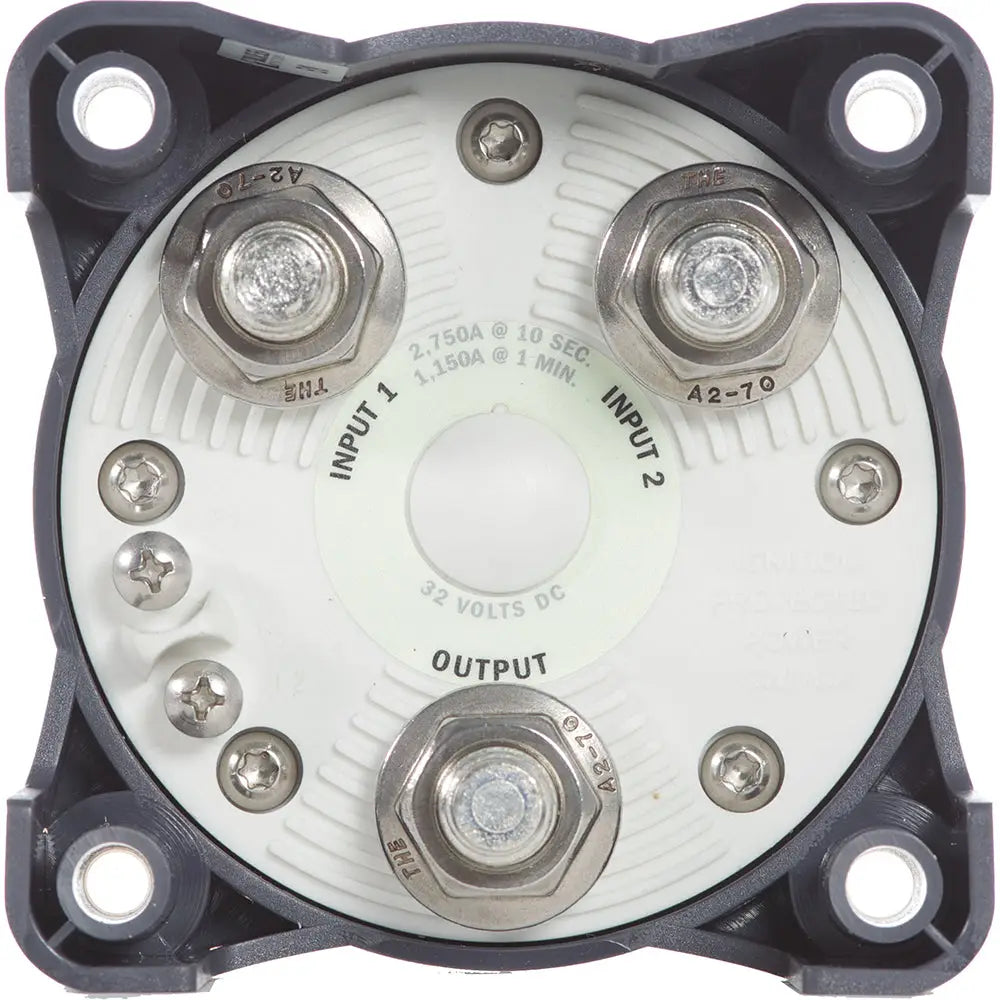

  • Accepts two 4/0 AWG (95mm) battery cables
  • M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals
  • 7/8" (22.22mm) stud length to accept multiple cable terminals
  • Tactile textures indicate knob position by feel only
  • Case design allows surface or rear panel mounting
Switch Ratings:
    10 Sec: 2750A
    60 Sec: 1150A
    5 Min: 700A
    Continuous: 500A
    Max Voltage: 32V DC

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • AFD: Yes
    • Positions: 3
    • Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs
    • UPC: 632085110031

    Brochure (pdf)
