• Blue Sea 1190 ELCI Main 30A Double Pole + 1 Position [1190]
1 1

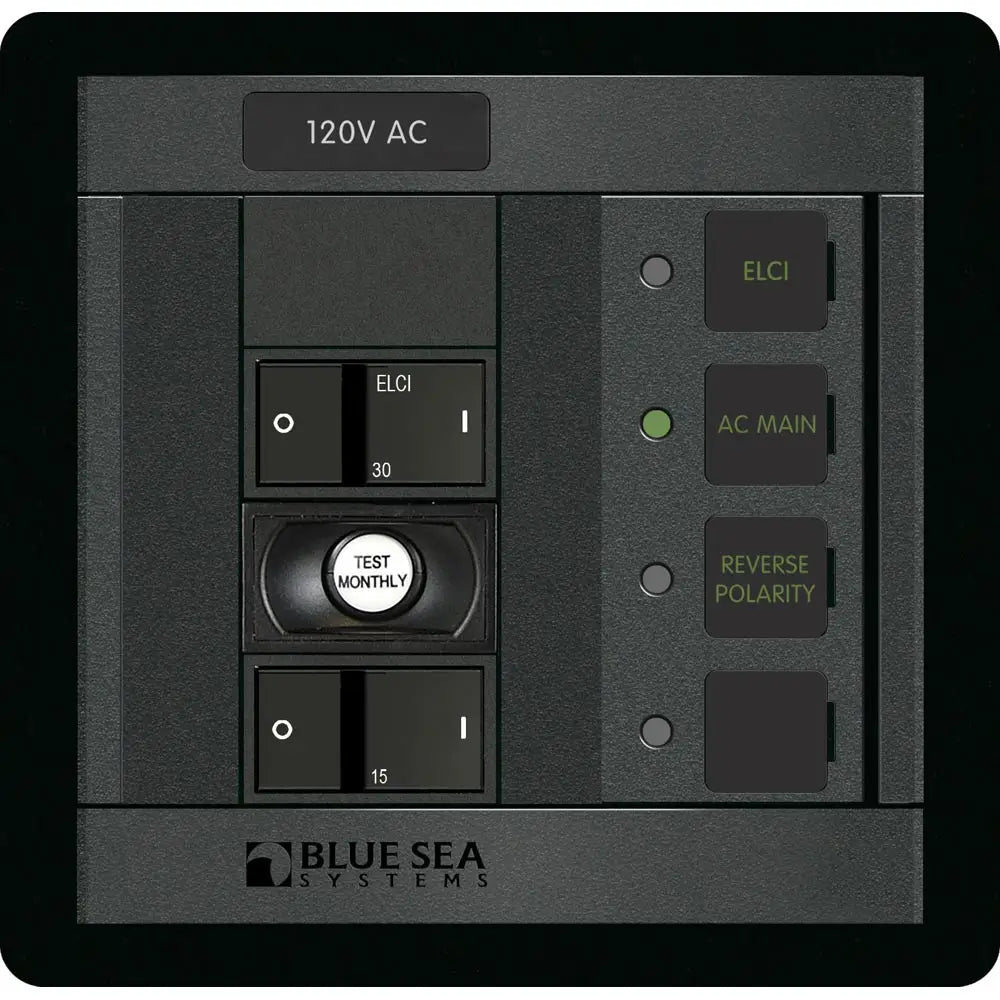

Blue Sea 1190 ELCI Main 30A Double Pole + 1 Position [1190]

$517.89
$803.99
$517.89
Shipping calculated at checkout.

SKU: CWR-57241   UPC: 632085011901

[COUNT] shoppers are looking at this right now
  • Hurry, only 4 items left in stock!

ELCI Main 30A Double Pole + 1 Position

Features:

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • One 15A AC Branch Flat Rocker Circuit Breaker
  • Red " Reverse Polarity" LED
  • Includes 4206 AC Panel Basic Square Format Label Set
  • All circuit label positions are backlit
  • "ON" indicating LEDs


Specifications:
  • Positions:t1
  • Nominal Voltage:t120V AC
  • Backlit Label*: Green LED
  • Height:t4.75" (120.65mm)
  • Width:t4.88" (123.95mm)
  • Depth:t3.99" (101.35mm)
  • Weight:t1.00lb (0.45kg)


Includes:
(1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Box Dimensions: 6"H x 7"W x 9"L WT: 1.6 lbs
  • UPC: 632085011901

Quick Guide (pdf)
Owner's Manual (pdf)
