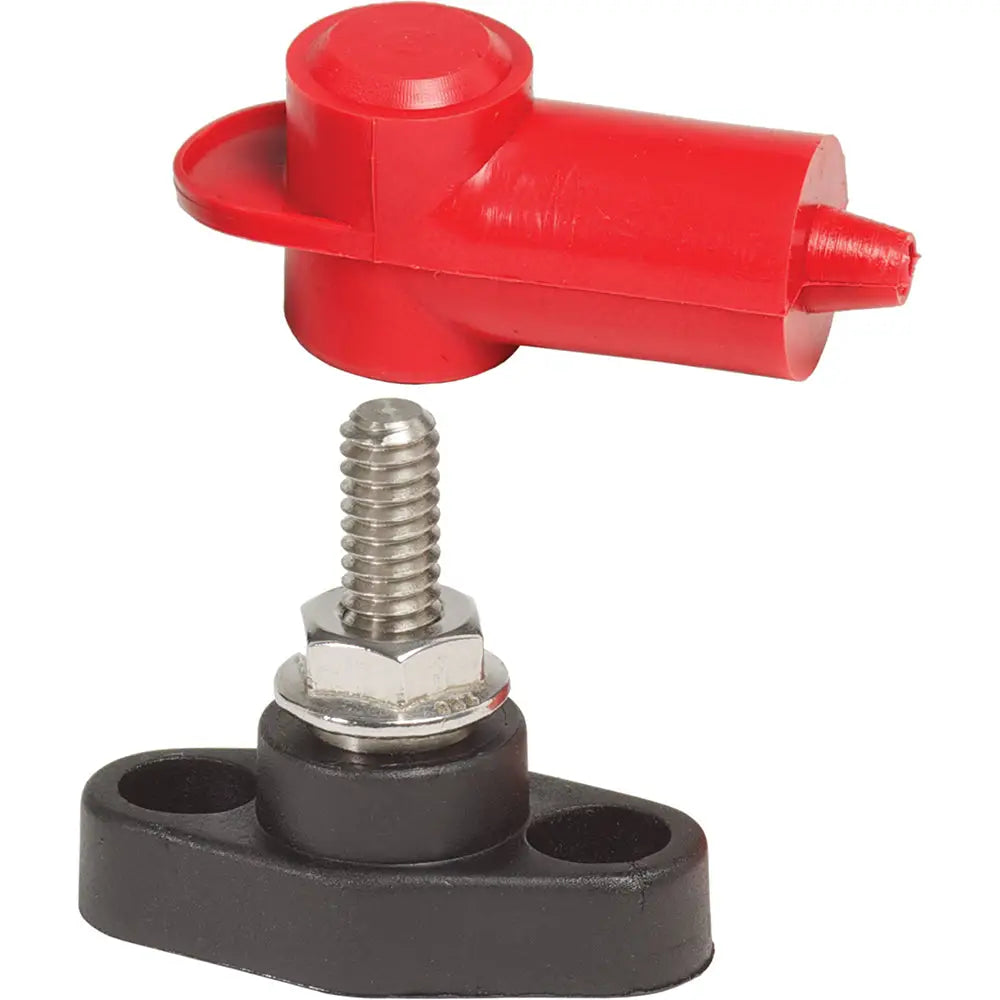

Blue Sea 2011 PowerPost Mini High Amperage Cable Connector - 1/4" Stud [2011]

The Blue Sea Systems Mini PowerPost uses a single stainless steel stud to join multiple large conductors in a compact marine electrical installation. Its 1/4"-20 x 3/4" stud accommodates matching ring terminals, while the reinforced PBT UL94 V-0 base provides insulation around the connection point. Rated for systems up to 48V DC, it suits common 12V, 24V, and 48V marine power applications.

• Single stainless steel stud terminates multiple large conductors at one organized connection point.
• 1/4"-20 x 3/4" stud accepts compatible 1/4-inch ring terminals for straightforward cable connections.
• Insulated reinforced thermoplastic base separates the terminal from the mounting surface and surrounding components.
• 48V DC maximum rating supports common marine and other low-voltage DC electrical systems.
• Compact Mini PowerPost format helps consolidate high-amperage connections in space-conscious installations.
• Recommended terminal torque is 70 in-lb (7.91 N·m) for properly secured connections.

• What is the Blue Sea 2011 PowerPost used for?
  It provides one insulated connection point for terminating multiple large, high-amperage DC conductors.
• What terminal size does it use?
  It uses a 1/4"-20 stud with a 3/4-inch stud length, so compatible ring terminals should match those dimensions.
• What voltage can it support?
  The listed maximum voltage is 48V DC.
• What is the base made from?
  The base is made from reinforced thermoplastic identified as PBT UL94 V-0.
• How tight should the connection be?
  The recommended torque is 70 in-lb, equivalent to 7.91 N·m.
