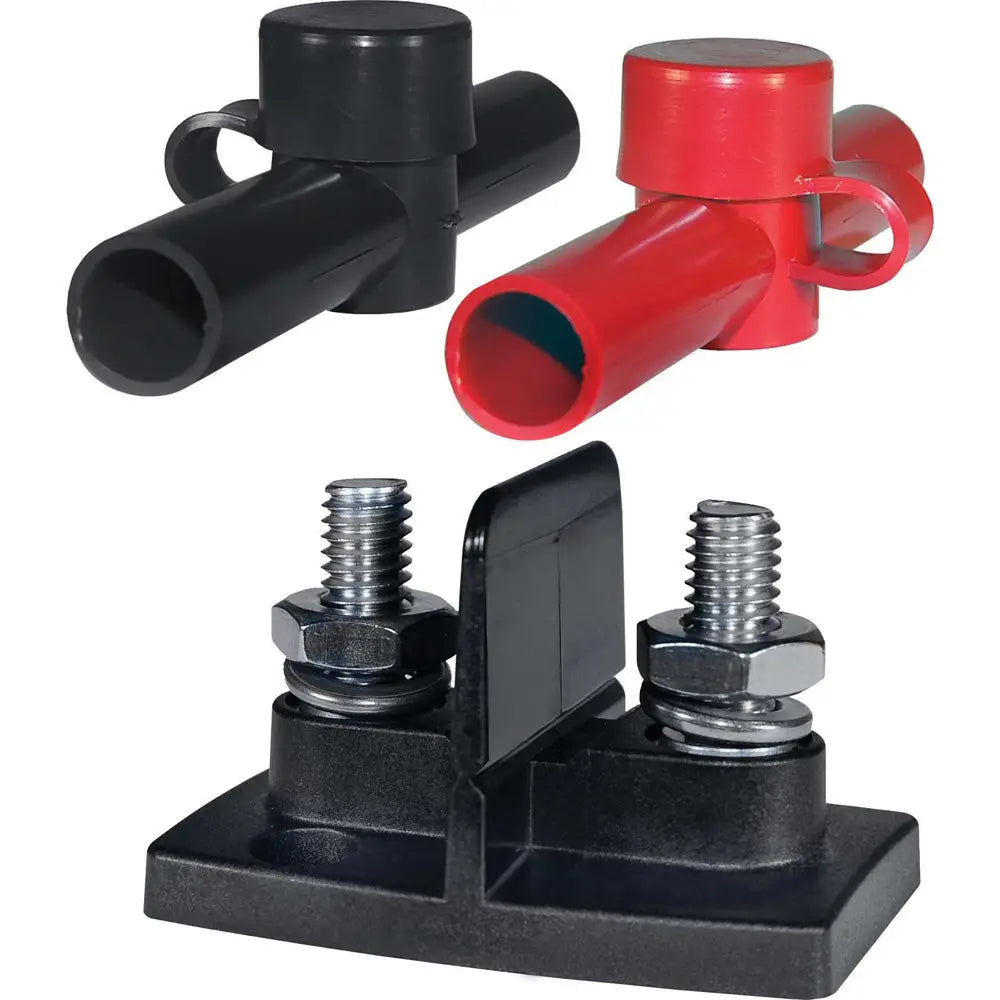

Blue Sea 2016 Dual PowerPost Cable Connectors - 2 X 5/16" [2016]

This two-post configuration uses matching 5/16"-18 studs for organized cable connections. The included black and red insulators help distinguish the two connection points and reduce accidental contact between terminals. With a maximum rating of 48V DC and surface mounting through a #10/M5 screw, it suits wiring installations that need an accessible, inspectable connection point.

• Two 5/16"-18 studs provide dedicated termination points for high-amp conductors.
• Black and red insulators included help identify the two connection points during installation and service.
• 48V DC maximum voltage supports a broad range of marine, RV, automotive, and other low-voltage electrical systems.
• #10 screw/M5 mounting provides a defined surface-mount installation method.
• 120 in-lb stud torque gives installers a specified tightening reference for secure terminal connections.
• 0.32 lb weight helps keep the connection assembly compact for equipment and vehicle installations.

• What is this connector used for?
  It provides a termination point for extending outboard harnesses and connecting other high-amp conductors.
• How many studs are included?
  The assembly has two 5/16"-18 studs.
• What insulators are included?
  One black insulator and one red insulator are included.
• What mounting hardware is specified?
  The mounting provision is sized for a #10 screw, also identified as M5.
• What is the maximum voltage?
  The listed maximum voltage is 48V DC.
