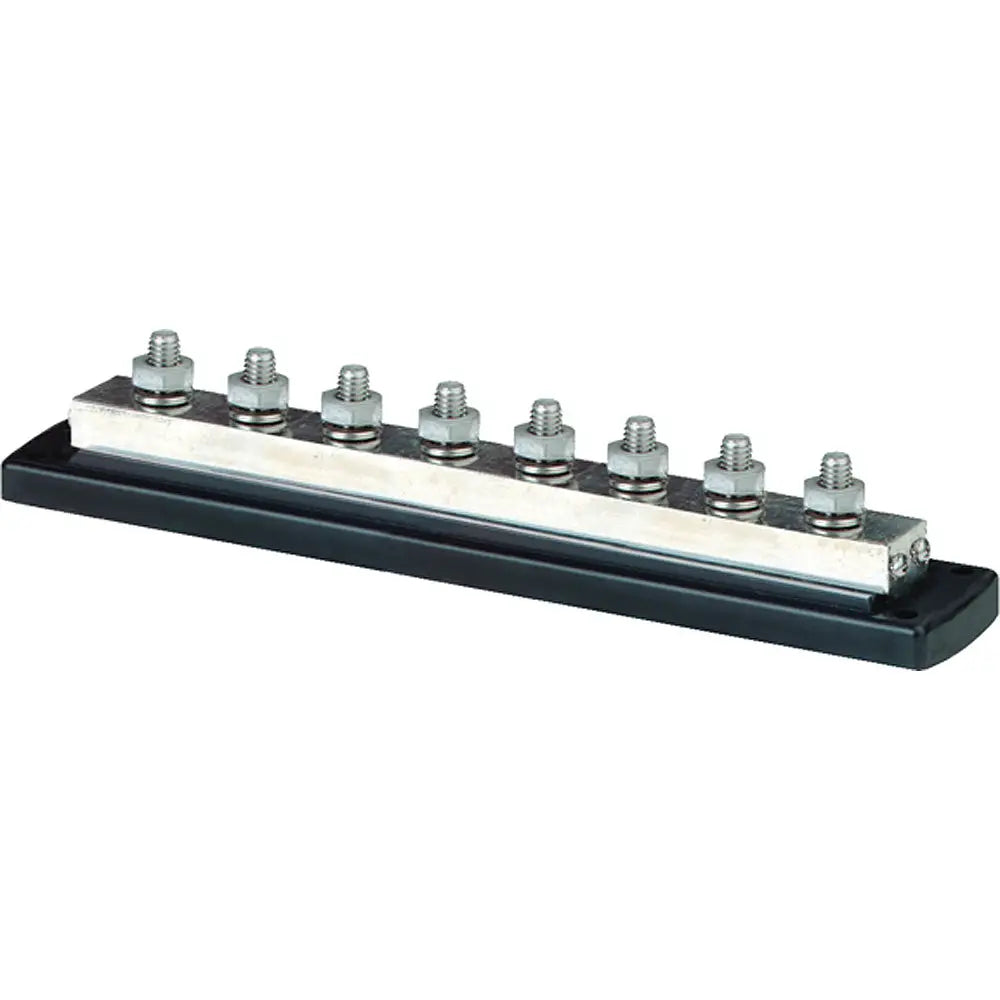

Blue Sea 2107 PowerBar 600AMP Cable Connector - 8 x 3/8" 16 Stud Terminal [2107]

The Blue Sea Systems 2107 PowerBar provides a central connection point for multiple marine electrical circuits. Its eight 3/8"-16 studs accommodate high-current cable connections, while the tin-plated copper bus supports efficient electrical distribution. Rated for systems up to 48V DC or 300V AC, it suits main power distribution and negative-return consolidation where multiple cables must be organized in one location.

• 600A DC continuous rating: Supports high-current marine power distribution.
• Eight 3/8"-16 terminal studs: Provides multiple connection points for larger cable terminals.
• Tin-plated copper bus: Provides a conductive distribution path with corrosion resistance suited to marine environments.
• 300V AC / 48V DC maximum voltage: Supports common marine electrical system configurations within the stated limits.
• Glass-reinforced thermoplastic base: Provides an electrically insulating mounting platform for the busbar assembly.
• 140 in-lb stud torque: Gives installers a specified tightening reference for the primary terminal connections.

• What is the Blue Sea 2107 used for?
  It is used to distribute high-current power or consolidate negative-return connections in marine electrical systems.
• How many primary cable connections does it support?
  The busbar has eight 3/8"-16 terminal studs.
• What voltage systems is it rated for?
  It is rated for up to 48V DC or 300V AC.
• What is its continuous current rating?
  The listed continuous rating is 600A DC and 545A AC.
• What tightening torque is specified for the terminal studs?
  The specified terminal stud torque is 140 in-lb, or 15.82 Nm.
