    Busbars, connectors, and insulators provide a compact common connection point for marine, RV, automotive, and other DC electrical systems. This 100A MiniBus accommodates five #8-32 screw terminals for organized power or ground distribution where installation space is limited.

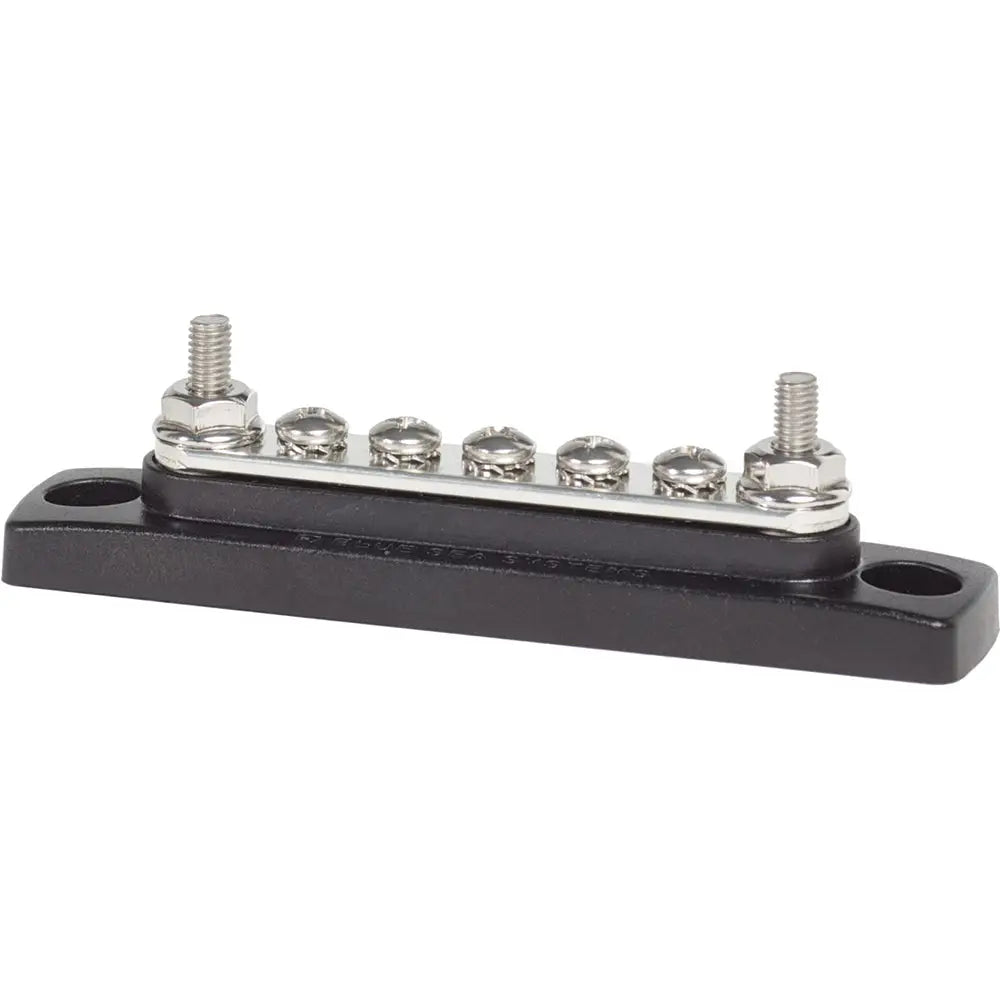

    The Blue Sea Systems 2304 uses a five-position common busbar to consolidate multiple electrical connections at a shared point. Its 100A continuous rating supports appropriately sized DC distribution applications, while the compact format suits electronics cabinets and under-dashboard installations. Tin-plated copper provides the conductive bus material, and the glass-reinforced thermoplastic base supports the terminal assembly. The unit includes two #10-32 studs in addition to the five #8-32 screw terminals.

    • Five #8-32 screw terminals provide multiple connection points from one common bus.
    • 100A continuous rating supports organized power or ground distribution in compatible electrical systems.
    • Tin-plated copper bus material provides a conductive connection path.
    • Two #10-32 studs provide primary connection points for larger ring-terminal connections.
    • Compact MiniBus format fits limited-space installations such as electronics cabinets and under dashboards.
    • UL 94-V0-rated, glass-reinforced thermoplastic base supports the busbar assembly.

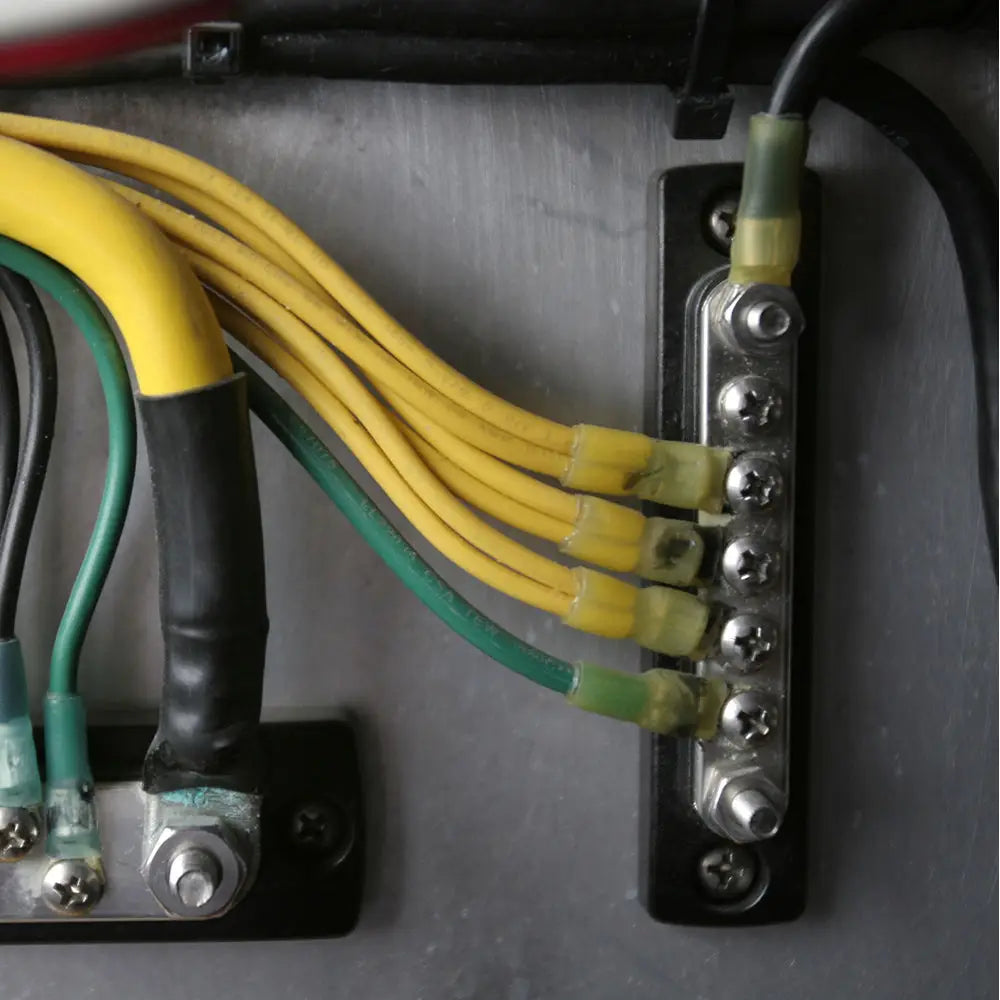

    Use the MiniBus as a shared positive or negative connection point when several circuits need to terminate neatly in one location. The five screw terminals allow individual branch connections, while the two studs can serve as main feed or bonding points when paired with correctly sized terminals and conductors.

    Its compact footprint makes it suitable for marine electrical panels, RV wiring, automotive accessory installations, electronics cabinets, and other mobile or stationary DC systems. The tin-plated copper bus helps provide a common conductive path, and the insulated base separates the bus from the mounting surface.

    Confirm the system voltage, conductor size, terminal compatibility, mounting clearance, and applicable installation requirements before use. This model is supplied as the busbar; a cover is available separately for compatible MiniBus installations.

    Specification Details
    Brand Blue Sea Systems
    Model 2304
    Product type Common 100A MiniBus busbar
    Configuration 5 screw terminals, 2 terminal studs
    Screw terminal #8-32
    Stud terminal #10-32
    Continuous rating 100A
    Maximum voltage 300V AC / 48V DC
    Bus material Tin-plated copper
    Base material UL 94-V0-rated glass-reinforced thermoplastic
    SKU CWR-13938
    UPC 632085023041
    • What is this busbar used for?
      It creates a common connection point for distributing power or ground connections in compatible marine, RV, automotive, and electronics applications.
    • How many screw terminals does it have?
      It has five #8-32 screw terminals, along with two #10-32 terminal studs.
    • What is its continuous rating?
      The 2304 is rated for 100A continuous service within a compatible installation.
    • What voltage ratings are specified?
      The listed maximum ratings are 300V AC and 48V DC.
    • Does it include a protective cover?
      No. This model is the busbar only; a compatible MiniBus cover is available separately.
