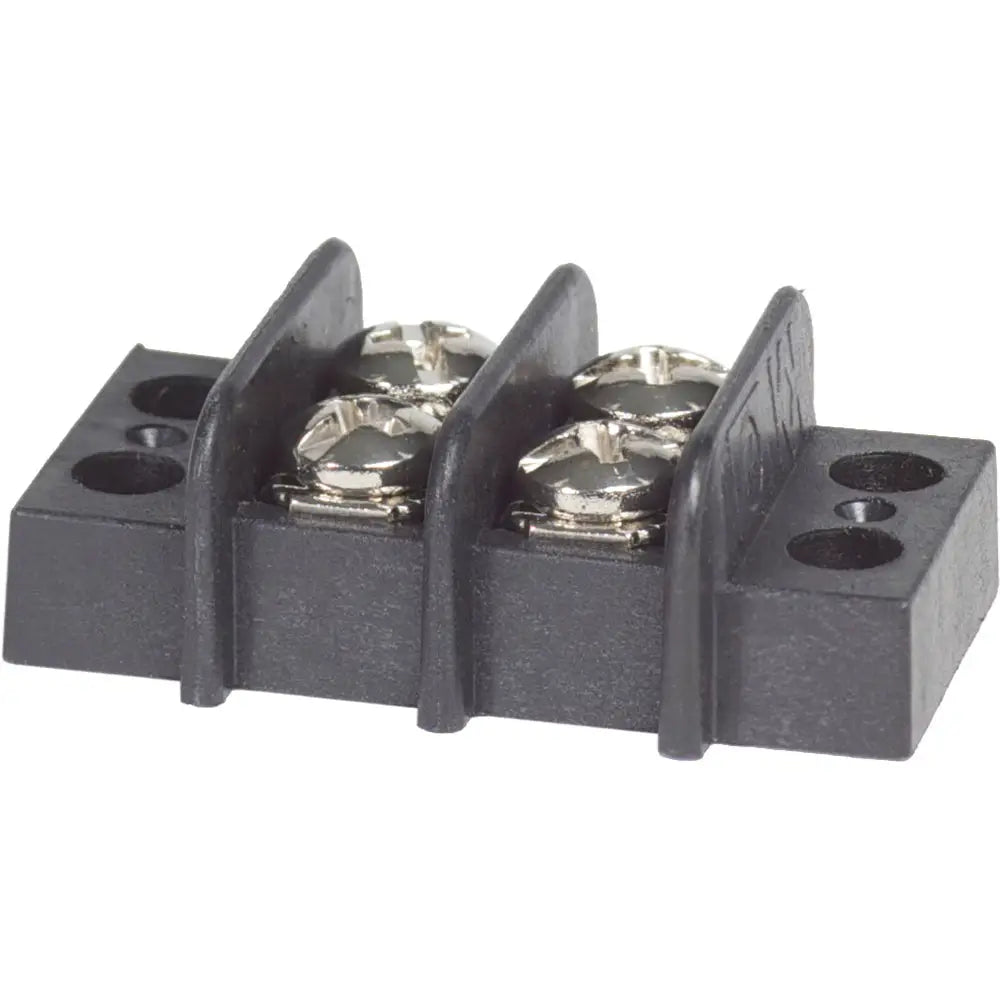

Blue Sea 2402 Terminal Black 20AMP - 2 Circuit [2402]

The Blue Sea Systems 2402 uses a screw-terminal layout with two independent circuits, each rated for 20A continuous service. Nickel-plated brass bus material supports reliable electrical connections, while the closed-back design helps prevent contact between energized components and the mounting surface. Use terminal jumpers to create a common circuit configuration for compatible wiring layouts.

• Two isolated circuits: Each screw pair functions as a separate circuit for cleaner electrical organization.
• 20A continuous rating: Supports circuit connections within the stated current capacity.
• Closed-back design: Insulates the electrical assembly from the mounting surface.
• Jumper-compatible layout: Allows compatible circuits to be joined into a common circuit.
• Nickel-plated brass bus: Provides a conductive terminal connection suited to marine, RV, and automotive electrical installations.
• Screw termination: Makes wire connections serviceable for installation and maintenance.

• What is this product used for?
  It organizes and terminates wiring for two separate electrical circuits in marine, RV, automotive, and vehicle-accessory installations.
• How many circuits does it have?
  It has two circuits, with each screw pair functioning as one isolated circuit.
• What is the continuous current rating?
  Each circuit is rated for 20A continuous service.
• Can the circuits be connected together?
  Yes. Compatible terminal jumpers can be used to create a common circuit arrangement.
• Does it insulate against the mounting surface?
  Yes. The closed-back design insulates the electrical components from the mounting surface.
