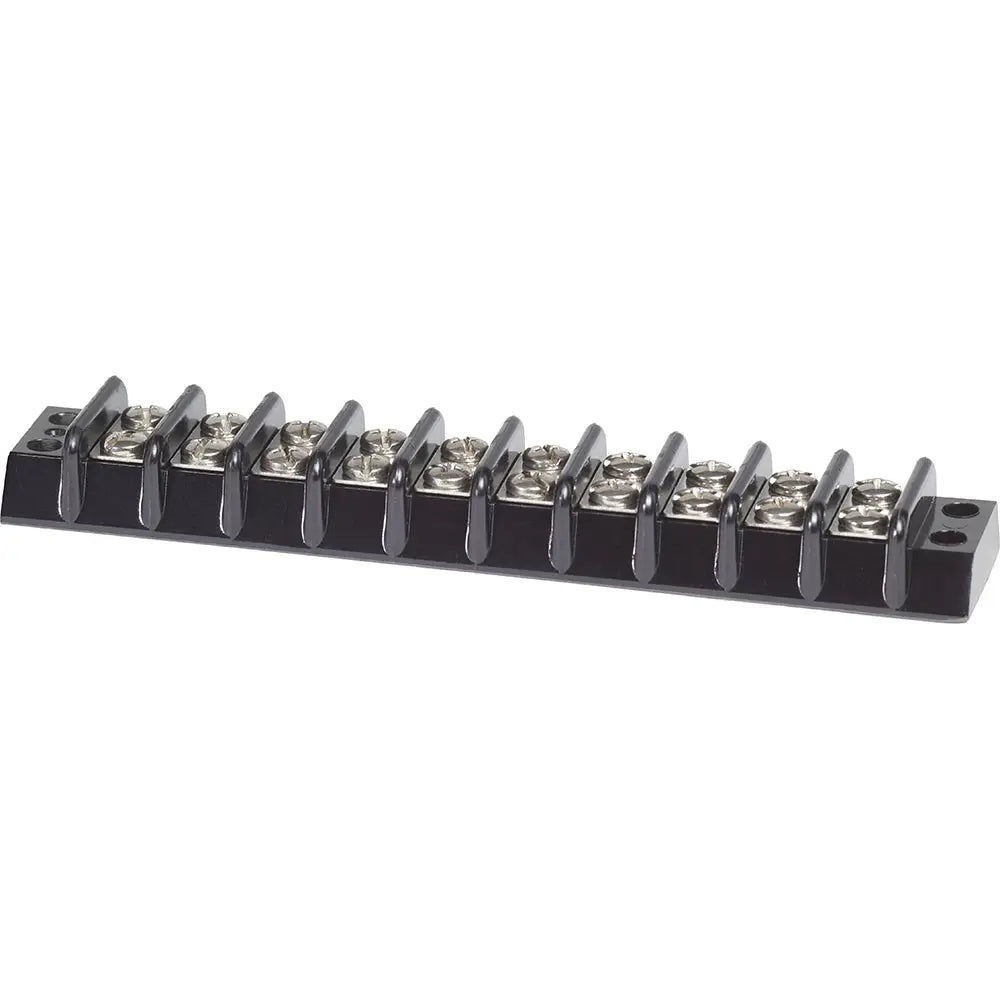

Blue Sea 2510 Terminal Block 30AMP - 10 Circuit [2510]

Regular price
$13.79
Regular price
$16.99
Sale price
$13.79
Shipping calculated at checkout.

CWR-13957

    Visa Mastercard American Express Discover PayPal Apple Pay Shop Pay
    Free Shipping Orders over $149*
    Secure Checkout SSL Encrypted
    Manufacturer Warranty Full Warranty Included

    Questions? Call, text or email us.

    925-222-LOTZ (5689)  ·  shop@lotzoutdoors.com

    Terminal block for organized 30A electrical distribution, providing 10 isolated circuits for marine, RV, and automotive wiring installations.

    The Blue Sea Systems 2510 uses a closed-back construction to insulate the power connections from the mounting surface. Each screw pair forms one isolated circuit, while optional jumpers can combine circuits when a common connection is needed. Its 30A continuous rating and 600V AC/DC maximum voltage support a range of electrical distribution applications.

    • 10 individual circuits keep separate wiring connections organized in one terminal block.
    • 30A continuous rating supports appropriately sized electrical distribution circuits.
    • Closed-back design insulates energized connections from the mounting surface.
    • Nickel-plated brass bus material provides conductive terminal pathways.
    • Stainless steel screws provide corrosion-resistant fastening for marine and vehicle installations.
    • Jumper-compatible layout allows selected circuits to be combined into common circuits.
    Use the 2510 to consolidate and organize multiple electrical connections in marine, RV, and automotive systems. The ten screw-pair circuits remain isolated during standard installation, helping separate individual branches and simplify wire routing. When a shared connection is required, compatible jumpers can link selected circuits without replacing the terminal block. The closed-back design helps prevent the energized connections from contacting the mounting surface, while the terminal layout keeps service access straightforward. Confirm wire sizing, circuit protection, voltage, and installation torque against the system requirements before installation.
    Brand Blue Sea Systems
    Model 2510
    Product type Terminal block
    Circuits 10
    Continuous rating 30A
    Maximum voltage 600V AC/DC
    Base material UL 94 V-0 polycarbonate
    Bus material Nickel-plated brass
    Mounting screw #10 / M5
    Terminal screws M4
    Wire terminal size #8 / M4
    Length 6.63 in (168.4 mm)
    Weight 0.33 lb (0.15 kg)
    SKU CWR-13957
    UPC 632085025106
    • What is the Blue Sea Systems 2510 used for?
      It organizes and distributes electrical connections across 10 terminal-block circuits in marine, RV, and automotive installations.
    • Are the circuits isolated?
      Yes. Each screw pair is one isolated circuit.
    • Can the circuits be combined?
      Yes. Compatible jumpers allow selected circuits to be connected into a common circuit.
    • What is the continuous current rating?
      The terminal block has a 30A continuous rating.
    • What voltage can it handle?
      The listed maximum voltage is 600V AC/DC. Always verify the complete electrical system and protection requirements before installation.
