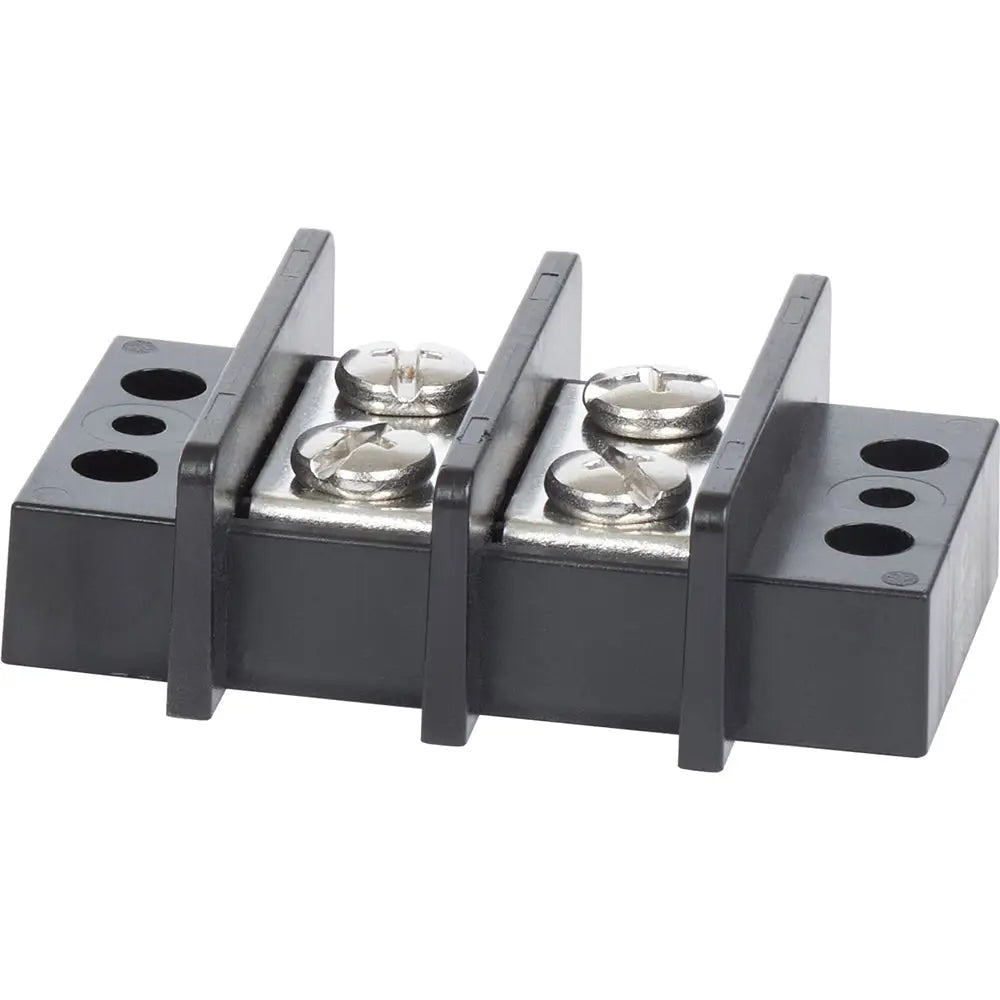

Blue Sea 2602 Terminal Block 65AMP - 2 Circuit [2602]

The Blue Sea Systems 2602 provides two isolated screw-pair circuits for marine and other electrical installations. Its closed back insulates the power connections from the mounting surface, while optional jumpers can combine circuits when a common connection is needed. Nickel-plated brass bus material and a thermoplastic base support organized ring-terminal wiring in compact power-distribution layouts.

• Two isolated circuits: Each screw pair operates as a separate circuit for clearer, more organized wiring.
• 65A continuous rating: Supports higher-current circuit distribution within its rated capacity.
• Closed-back construction: Insulates energized connections from the mounting surface.
• Optional jumper compatibility: Allows independent circuits to be combined into a common circuit when required.
• Nickel-plated brass bus: Provides a conductive bus material suited to marine electrical installations.
• Compact mounting format: The approximately 2.51-inch length fits neatly into organized electrical panels and wiring layouts.

• How many circuits does the 2602 have?
  It has two circuits, with each screw pair serving as one isolated circuit.
• Can the two circuits be connected together?
  Yes. A compatible terminal-block jumper can be used to create a common circuit.
• What is the current rating?
  The terminal block is rated for 65A continuous operation within the applicable installation requirements.
• Does the terminal block insulate the mounting surface?
  Yes. Its closed-back design separates the power connections from the mounting surface.
• Where is this terminal block typically used?
  It is suited to organized wiring in marine electrical panels, boat accessory circuits, and other electrical power-distribution installations.
