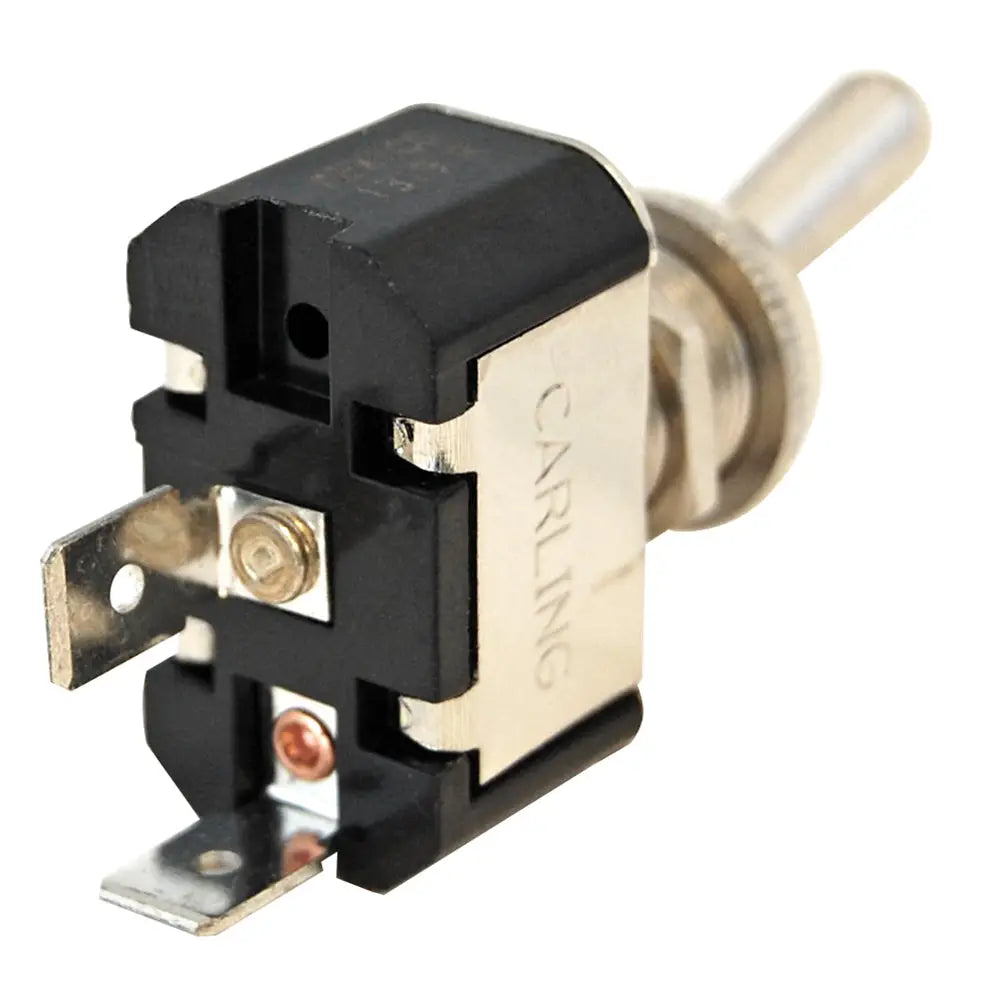

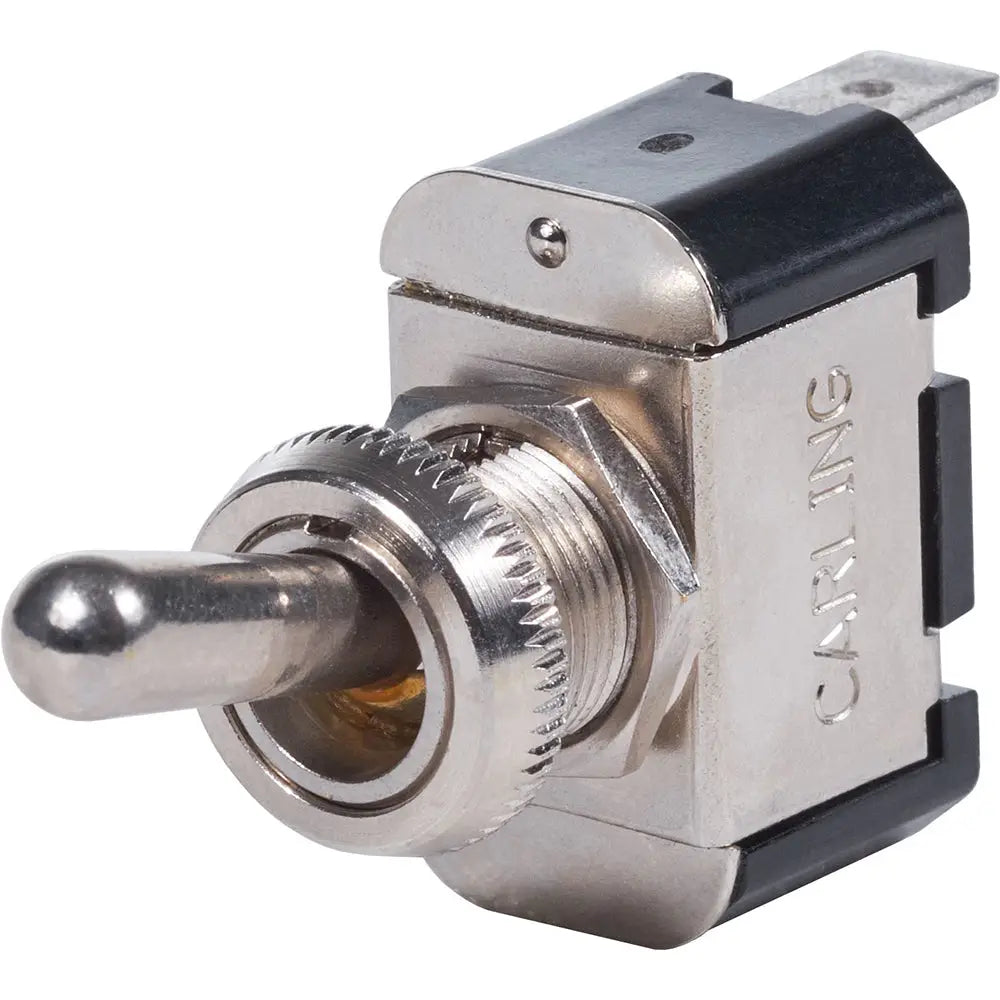

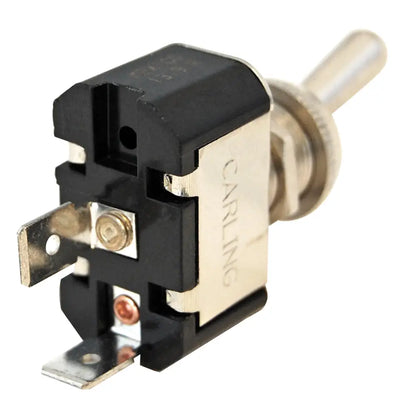

Blue Sea 4151 WeatherDeck Toggle Switches [4151]

The Blue Sea Systems 4151 uses an OFF-(ON) momentary action, so the circuit operates while the toggle is held and returns to OFF when released. Nickel-plated brass and phenolic construction resist corrosion in wet marine and vehicle environments. Designed for Blue Sea Systems WeatherDeck panels, the switch can achieve IP67 temporary-immersion protection for 30 minutes when installed with a compatible WeatherDeck toggle switch boot.

• SPST configuration: Controls a single circuit with straightforward single-pole, single-throw switching.
• OFF-(ON) momentary action: Activates the circuit while held, making it suitable for controls such as horns and windshield wipers.
• Nickel-plated brass and phenolic construction: Uses non-corrosive materials suited to marine and outdoor electrical panels.
• WeatherDeck panel compatibility: Provides a replacement or installation option for Blue Sea Systems WeatherDeck panels.
• Boot-supported IP67 protection: Reaches temporary-immersion protection when mounted with a WeatherDeck Toggle Switch Boot.
• Quick-connect terminals: Uses two 0.25-inch (6.35 mm) terminals for compatible crimp connections.

• What does SPST mean?
  SPST means single pole, single throw, allowing the switch to control one circuit.
• What does OFF-(ON) momentary mean?
  The switch returns to OFF when released and remains ON only while the toggle is held in the momentary position.
• What is the switch commonly used for?
  It is suitable for momentary controls such as marine horns and windshield wipers when the electrical ratings match the application.
• Is the switch waterproof by itself?
  IP67 temporary-immersion protection applies when the switch is mounted with a compatible WeatherDeck Toggle Switch Boot.
• What terminals does it use?
  The switch has two quick-connect tabs sized for 0.25-inch (6.35 mm) terminals.
