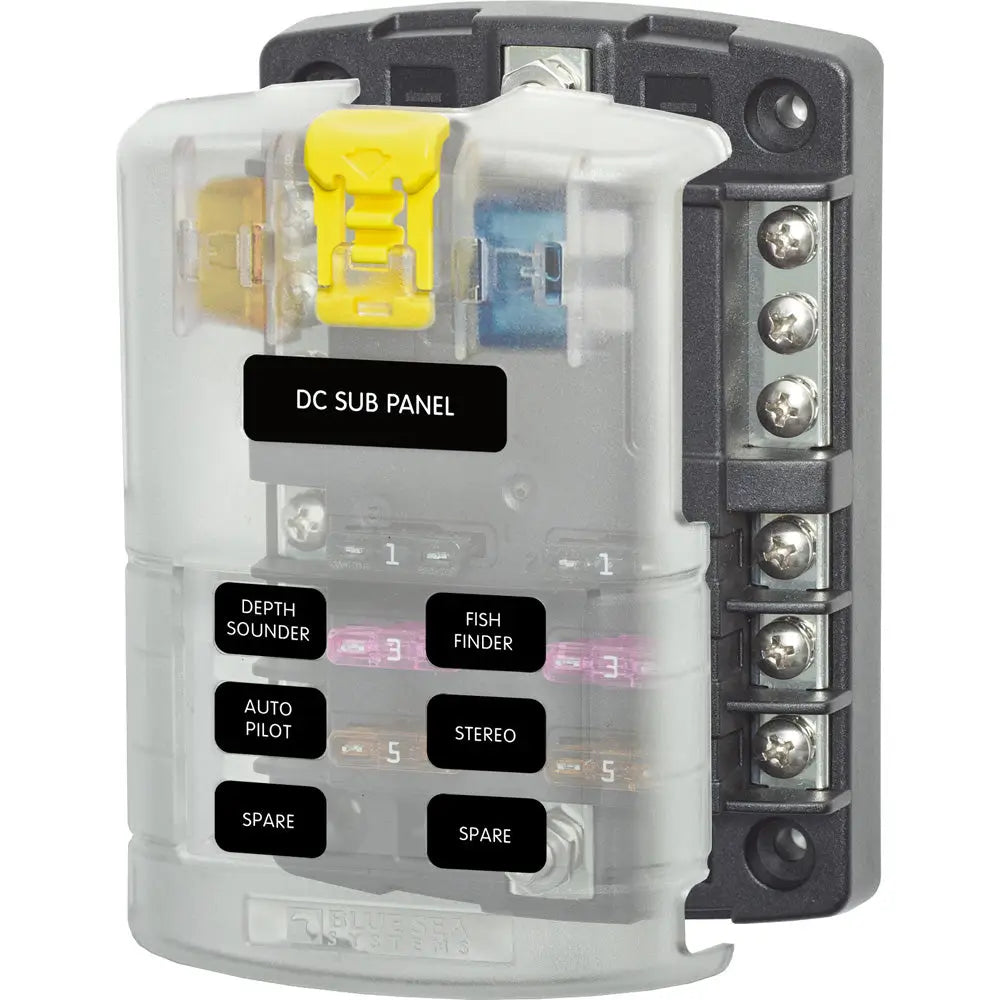

Blue Sea 5025 ST Blade Fuse Block w/Cover - 6 Circuit w/Negative Bus [5025]

Authorized Dealer
In Stock
Regular price
$49.79
Regular price
$59.99
Sale price
$49.79
Shipping calculated at checkout.

SKU: CWR-16507   UPC: 632085050252

Visa Mastercard American Express Discover PayPal Apple Pay Shop Pay
Free Shipping Orders over $149*
Secure Checkout SSL Encrypted
Manufacturer Warranty Full Warranty Included

Questions? Call, text or email us.

925-222-LOTZ (5689)  ·  shop@lotzoutdoors.com

Fuse distribution block for organizing and protecting up to six ATO or ATC DC circuits in marine, RV, and automotive electrical systems, with an integrated negative bus for simplified wiring.

The Blue Sea Systems 5025 ST Blade Fuse Block combines six individually fused circuits with a common negative bus in one covered panel. Tin-plated copper buses and fuse clips support up to 30 amperes per circuit, while the block accepts fast-acting ATO and ATC blade fuses. The clear insulating cover provides access to circuit identification labels and helps protect exposed connections.

  • Six-circuit configuration: Distributes power to multiple individual DC loads from one organized panel.
  • Integrated negative bus: Provides a common return point for cleaner, more centralized wiring.
  • ATO and ATC fuse compatibility: Accepts common fast-acting blade fuses for convenient circuit protection.
  • 30-ampere rating per circuit: Supports appropriately sized branch-circuit protection up to the stated circuit limit.
  • Clear insulating cover: Helps shield fuse connections and includes label recesses for circuit identification.
  • Write-on labels included: Makes it easier to identify connected circuits during installation and service.
Use the 5025 as a centralized DC fuse panel for boat, RV, automotive, and other 12- or 24-volt electrical installations. Each connected load receives its own ATO or ATC blade fuse, allowing individual circuits to be protected and serviced without disturbing the rest of the panel. The integrated negative bus keeps corresponding return connections together, reducing the need for a separate nearby negative distribution point. Tin-plated copper buses and fuse clips provide the conductive path for the six circuits, while the clear cover helps insulate the fuse area and keeps circuit labeling visible. The block is rated for up to 100 amperes per block and 30 amperes per circuit at a maximum of 32V DC; select fuse sizes and wiring according to the connected equipment and installation requirements.
Brand Blue Sea Systems
Model 5025 ST
Product Type Blade fuse block
Circuits 6
Fuse Type ATO/ATC fast-acting blade fuses
Negative Bus Included
Maximum Amperage 100A per block; 30A per circuit
Maximum Voltage 32V DC
Bus Material Tin-plated copper
Mounting #8 screw (M4)
SKU CWR-16507
UPC 632085050252
  • What fuse types does this block accept?
    It accepts ATO and ATC fast-acting blade fuses.
  • How many circuits does the 5025 support?
    It supports six individually fused circuits.
  • Does it include a negative bus?
    Yes. The 5025 includes an integrated negative bus for circuit return connections.
  • What are its electrical limits?
    The maximum rating is 30 amperes per circuit, 100 amperes per block, and 32V DC.
  • Is a cover included?
    Yes. It includes a clear insulating cover with label recesses, along with write-on circuit labels.
