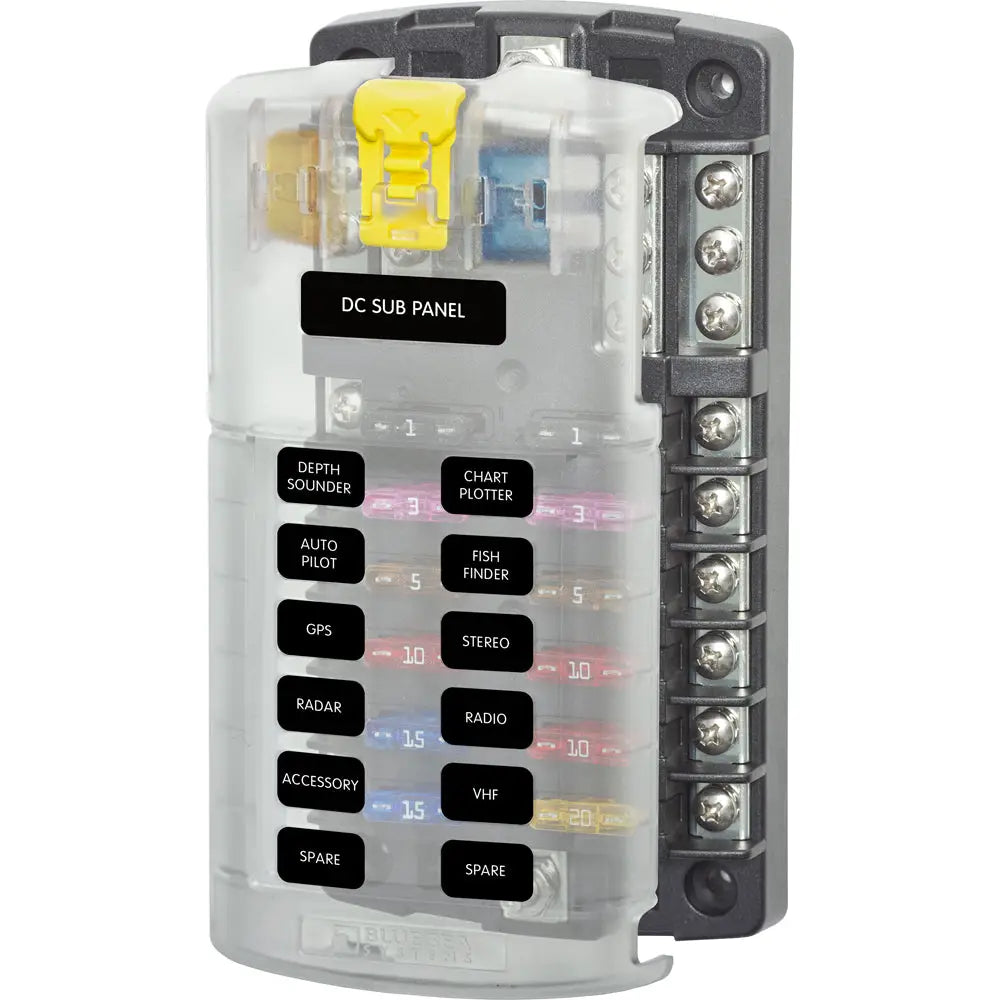

Blue Sea 5026 ST Blade Fuse Block w/Cover - 12 Circuit w/Negative Bus [5026]

Authorized Dealer
In Stock
Regular price
$63.79
Regular price
$73.99
Sale price
$63.79
Shipping calculated at checkout.

SKU: CWR-16508   UPC: 632085050269

Visa Mastercard American Express Discover PayPal Apple Pay Shop Pay
Free Shipping Orders over $149*
Secure Checkout SSL Encrypted
Manufacturer Warranty Full Warranty Included

Questions? Call, text or email us.

925-222-LOTZ (5689)  ·  shop@lotzoutdoors.com

Circuit protection and distribution for marine, RV, and automotive electrical systems, with 12 fused circuits and an integrated negative bus to simplify organized wiring.

The Blue Sea Systems 5026 ST Blade Fuse Block provides a centralized connection point for up to 12 ATO or ATC fast-acting blade fuses. Tin-plated copper buses and fuse clips support up to 30 amps per circuit, while the block is rated for up to 100 amps overall. Its clear insulating cover helps protect connections and provides label recesses for circuit identification.

  • 12 fused circuits consolidate multiple electrical loads in one organized panel.
  • Accepts ATO and ATC fast-acting blade fuses for common marine, RV, and automotive applications.
  • Integrated negative bus provides a shared return connection without requiring a separate negative busbar.
  • Tin-plated copper buses and fuse clips support up to 30 amps per circuit.
  • Clear insulating cover satisfies ABYC/USCG insulation requirements and includes label recesses.
  • Twenty write-on circuit labels help identify connected equipment during installation and service.
Use the 5026 to distribute protected power to accessory circuits on boats, recreational vehicles, and automotive electrical systems. The positive bus feeds the 12 fuse positions, while the integrated negative bus provides a centralized return path for connected loads. Each circuit accepts a standard ATO or ATC fast-acting blade fuse, allowing individual equipment circuits to be fused separately. The covered design helps shield the fuse area and supports clearer circuit identification through the included write-on labels. The block is rated for 32V DC maximum, 30 amps per circuit, and 100 amps per block; select fuses and wiring according to the connected equipment and installation requirements.
Specification Details
Brand Blue Sea Systems
Model 5026
Product Type ST blade fuse block with cover
Circuits 12
Fuse Compatibility ATO and ATC fast-acting blade fuses
Maximum Amperage 30A per circuit; 100A per block
Maximum Voltage 32V DC
Negative Bus #10-32 stud
Mounting #8 screw (M4)
Weight 0.75 lb (0.34 kg)
SKU CWR-16508
UPC 632085050269
  • What fuse types does this block accept?
    It accepts ATO and ATC fast-acting blade fuses.
  • How many circuits does the 5026 support?
    The fuse block provides 12 fused circuits.
  • What is the current rating?
    Each circuit is rated up to 30 amps, with a maximum block rating of 100 amps.
  • Does it include a negative bus?
    Yes. An integrated negative bus with a #10-32 stud provides a common return connection.
  • Are fuses included?
    Fuses are not listed as included; the product includes 20 write-on circuit labels.
