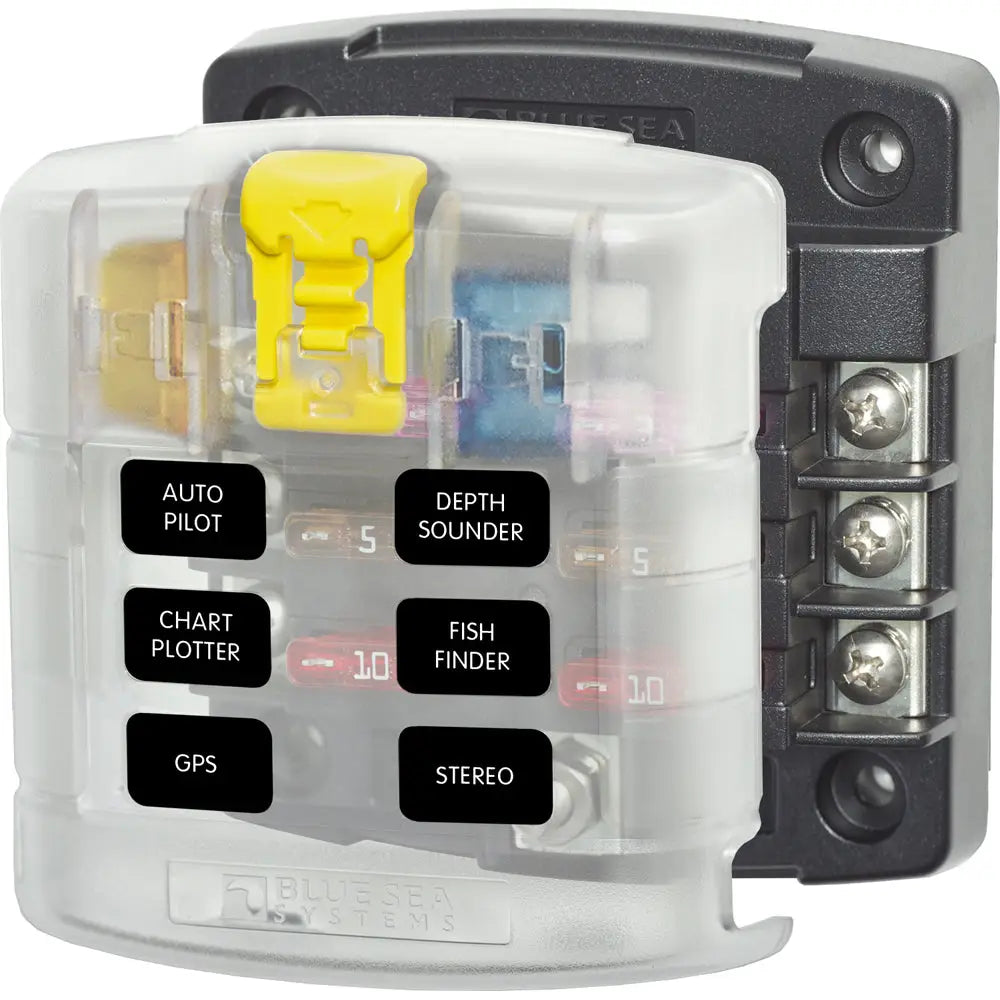

Blue Sea 5028 ST Blade Fuse Block w/ Cover - 6 Circuit without Negative Bus [5028]

Regular price
$43.79
Regular price
$51.99
Sale price
$43.79
Shipping calculated at checkout.

CWR-20429

    Visa Mastercard American Express Discover PayPal Apple Pay Shop Pay
    Free Shipping Orders over $149*
    Secure Checkout SSL Encrypted
    Manufacturer Warranty Full Warranty Included

    Questions? Call, text or email us.

    925-222-LOTZ (5689)  ·  shop@lotzoutdoors.com

    Fuse blocks consolidate and protect up to six individual 12–32V DC branch circuits in marine, RV, and automotive electrical systems, while the clear cover helps insulate energized components and keeps circuit identification visible.

    This six-circuit ST Blade fuse block uses a common positive distribution bus and does not include a negative bus. Tin-plated copper buses and fuse clips support up to 30A per circuit and 100A per block. It accepts fast-acting ATO and ATC blade fuses, with 20 write-on labels included for straightforward circuit identification.

    • Six individual circuits organize multiple branch connections in one compact fuse block.
    • Accepts ATO and ATC fast-acting blade fuses for compatibility with common automotive, RV, and marine fuse formats.
    • Tin-plated copper buses and fuse clips provide a 30A rating per circuit for distributed DC power protection.
    • Clear insulating cover satisfies ABYC/USCG insulation requirements and helps prevent accidental contact with conductive parts.
    • Label recesses and 20 included write-on labels make connected circuits easier to identify during installation and service.
    • Positive #10-32 distribution stud and #8-32 circuit terminals support organized screw-terminal wiring.
    Install the Blue Sea Systems 5028 where several low-voltage DC accessories need individual fuse protection from a shared positive feed. Its six-circuit layout suits common boat, RV, and automotive applications such as lighting, pumps, electronics, and auxiliary accessories. The block accepts standard ATO and ATC fast-acting blade fuses from 1A to 30A; fuses are sold separately. A maximum block rating of 100A helps accommodate multiple protected circuits within the limits of the wiring and selected fuses. Because this model has no negative bus, negative returns must be terminated through a separate grounding or negative distribution point. The clear cover provides access through a push-button latch while keeping circuit labels visible, and the mounting pattern uses #8 screws or M4 fasteners.
    Brand Blue Sea Systems
    Model 5028
    Product Type ST blade fuse block
    Configuration 6 circuits; without negative bus; with cover
    Fuse Type ATO and ATC fast-acting blade fuses
    Maximum Rating 30A per circuit; 100A per block
    Maximum Voltage 32V DC
    Terminals #10-32 positive stud; #8-32 circuit screws
    Mounting #8 screws or M4 fasteners
    Weight 0.42 lb (0.19 kg)
    SKU CWR-20429
    UPC 632085050283
    • Does this fuse block include a negative bus?
      No. The 5028 is configured with six fused circuits and no negative bus.
    • Which fuses does it accept?
      It accepts ATO and ATC fast-acting blade fuses rated from 1A to 30A. Fuses are sold separately.
    • What is the maximum electrical rating?
      The maximum rating is 30A per circuit, 100A per block, and 32V DC maximum voltage.
    • Is the cover included?
      Yes. The clear insulating cover is included and has label recesses for circuit identification.
    • Where can it be used?
      It is suitable for organizing fused low-voltage DC circuits in boats, RVs, and automotive electrical systems when installed with appropriately sized wiring and fuses.
