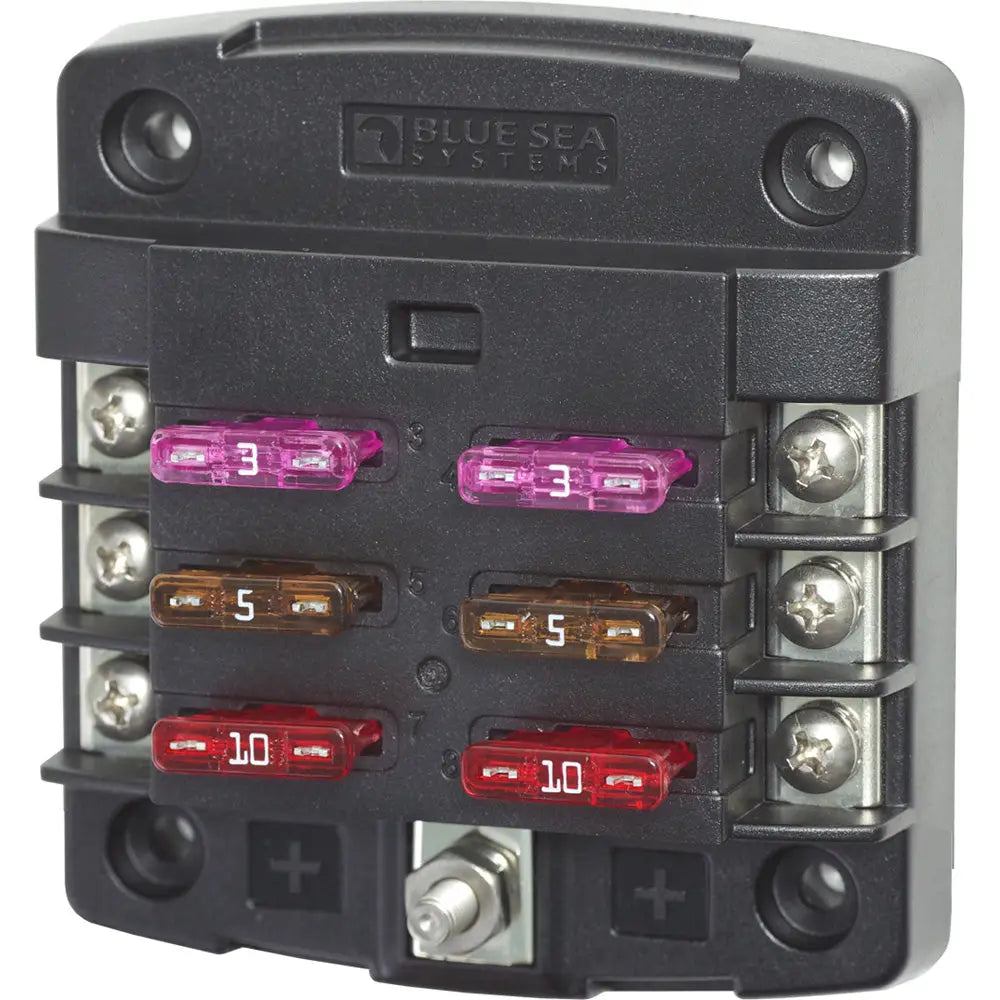

Blue Sea 5033 ST Blade Fuse Block w/out Cover - 6 Circuit w/out Negative Bus [5033]

The ST Blade Fuse Block uses tin-plated copper buses and fuse clips rated for up to 30 amperes per circuit. Its positive distribution bus provides a common feed for the six circuits, while the open, coverless format keeps installed fuses visible and accessible. The block accepts ring or snap-fork terminals and is designed for screw-terminal marine electrical installations. Fuses are sold separately.

• Six-circuit configuration organizes multiple DC branch circuits in one location.
• Accepts ATO and ATC fast-acting blade fuses for common marine fuse requirements.
• Tin-plated copper buses and fuse clips support conductivity and help resist corrosion in marine environments.
• Up to 30 amperes per circuit provides protection for appropriately sized branch circuits.
• Positive distribution bus with a #10-32 stud simplifies the main power connection.
• Coverless construction keeps fuses accessible for inspection and replacement.

• What fuse types does this block accept?
  It accepts ATO and ATC fast-acting blade fuses.
• How many circuits does the 5033 support?
  It supports six branch circuits.
• Does this model include a cover?
  No. The 5033 is supplied without a cover.
• Does it include a negative bus?
  No. This model has a positive distribution bus and does not include a negative bus.
• Are fuses included?
  No. ATO or ATC fuses must be selected and purchased separately to match each circuit’s wiring and load.
