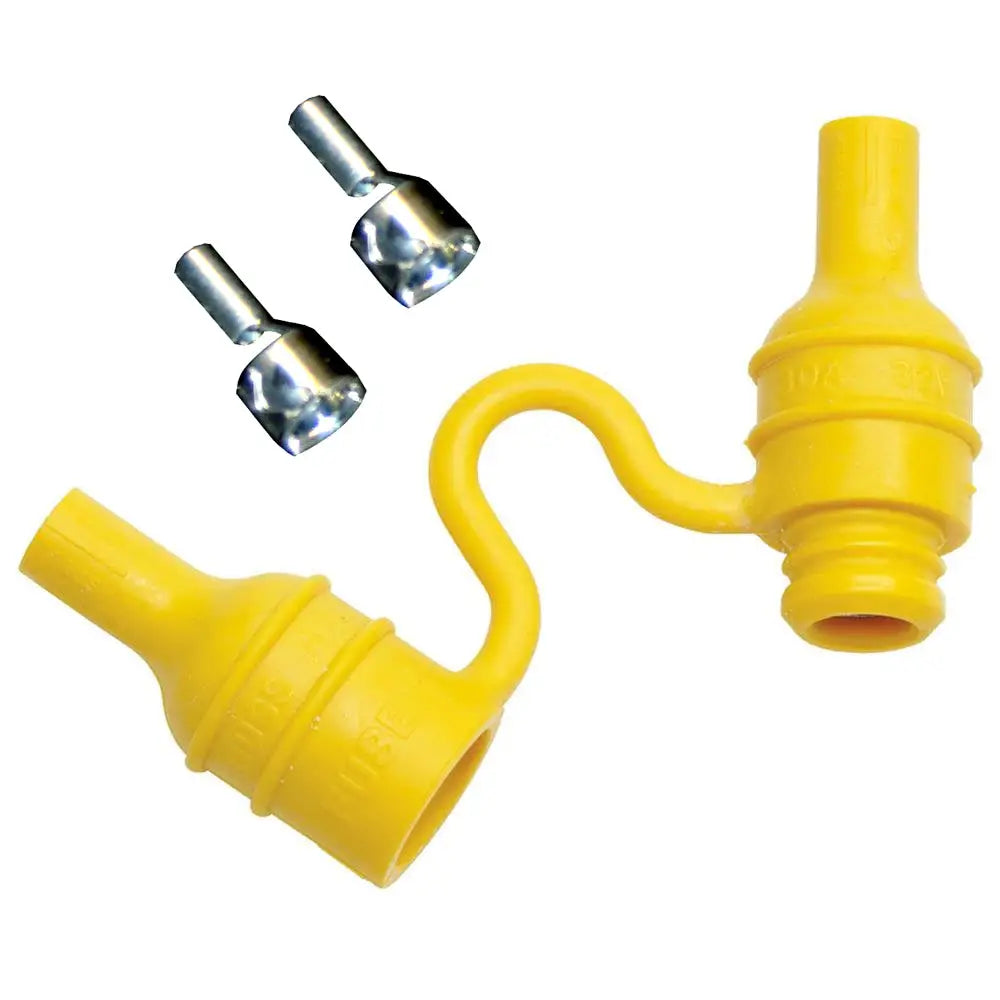

Blue Sea 5061 Waterproof Inline Fuse Holder AGC/MDL [5061]

Authorized Dealer

In Stock

Regular price: $12.79
Regular price: ~~$14.99~~
Sale price: $12.79

Shipping calculated at checkout.

SKU: CWR-40582 UPC: 632085050610

Free Shipping Orders over $149.99

Secure Checkout SSL Encrypted

Manufacturer Warranty Full Warranty Included

Questions? Call, text or email us.

925-222-LOTZ (5689) · shop@lotzoutdoors.com

Waterproof in-line fuse holder for AGC and MDL glass fuses, providing a protected connection point for marine, RV, automotive, and other 12-volt electrical circuits.

The Blue Sea Systems 5061 accepts 12–18 AWG wire and supports fuse ratings up to 30A. Its in-line format integrates directly into a circuit, while the waterproof housing helps protect the fuse connection in exposed electrical installations. Use it with a compatible AGC or MDL fuse, sold separately.

Accepts AGC and MDL glass fuses for compatibility with common automotive and marine fuse types.
Supports 12–18 AWG wire to accommodate a range of small-gauge circuit wiring.
Rated for a maximum 30A fuse to provide overcurrent protection for appropriately sized circuits.
Waterproof in-line housing helps shield the fuse connection from moisture in exposed installations.
Fuse sold separately, allowing the circuit-appropriate fuse rating to be selected independently.

Install the 5061 in line with the circuit that requires fuse protection, using a compatible AGC or MDL glass fuse and appropriately sized 12–18 AWG wire. This configuration is useful for adding protection to wiring runs in boats, RVs, automobiles, and other vehicle electrical systems where an in-line holder is more practical than a panel-mounted fuse block. The waterproof housing helps protect the fuse area from moisture during typical exposed-use conditions. Select a fuse no higher than the holder’s 30A maximum and match the fuse rating to the circuit and wiring requirements. The fuse is not included.

Specification	Details
Brand	Blue Sea Systems
Model	5061
Product Type	Waterproof in-line fuse holder
Fuse Type	AGC/MDL
Wire Range	12–18 AWG
Maximum Fuse Amperage	30A
Fuse Included	No
UPC	632085050610
Box Dimensions	1" H × 2" W × 5" L
Box Weight	0.05 lb

What fuse does this holder use?
It accepts AGC and MDL glass fuses.
What wire sizes are compatible?
It accepts 12–18 AWG wire.
What is the maximum fuse rating?
The holder supports a maximum fuse amperage of 30A.
Is a fuse included?
No. The AGC or MDL fuse must be purchased separately.
Where can it be used?
It is suited to in-line circuit protection in marine, RV, automotive, and similar vehicle electrical applications.
