• Blue Sea 5115 Fuse A3T (Class T) 175A [5115]

Blue Sea 5115 Fuse A3T (Class T) 175A [5115]

Authorized Dealer
In Stock
$64.79
$82.99
$64.79
Shipping calculated at checkout.

SKU: CWR-19022   UPC: 632085051150

  • 19 items left in stock
Visa Mastercard American Express Discover PayPal Apple Pay Shop Pay
Free Shipping Orders over $149.99
Secure Checkout SSL Encrypted
Manufacturer Warranty Full Warranty Included

Questions? Call, text or email us.

925-222-LOTZ (5689)  ·  shop@lotzoutdoors.com

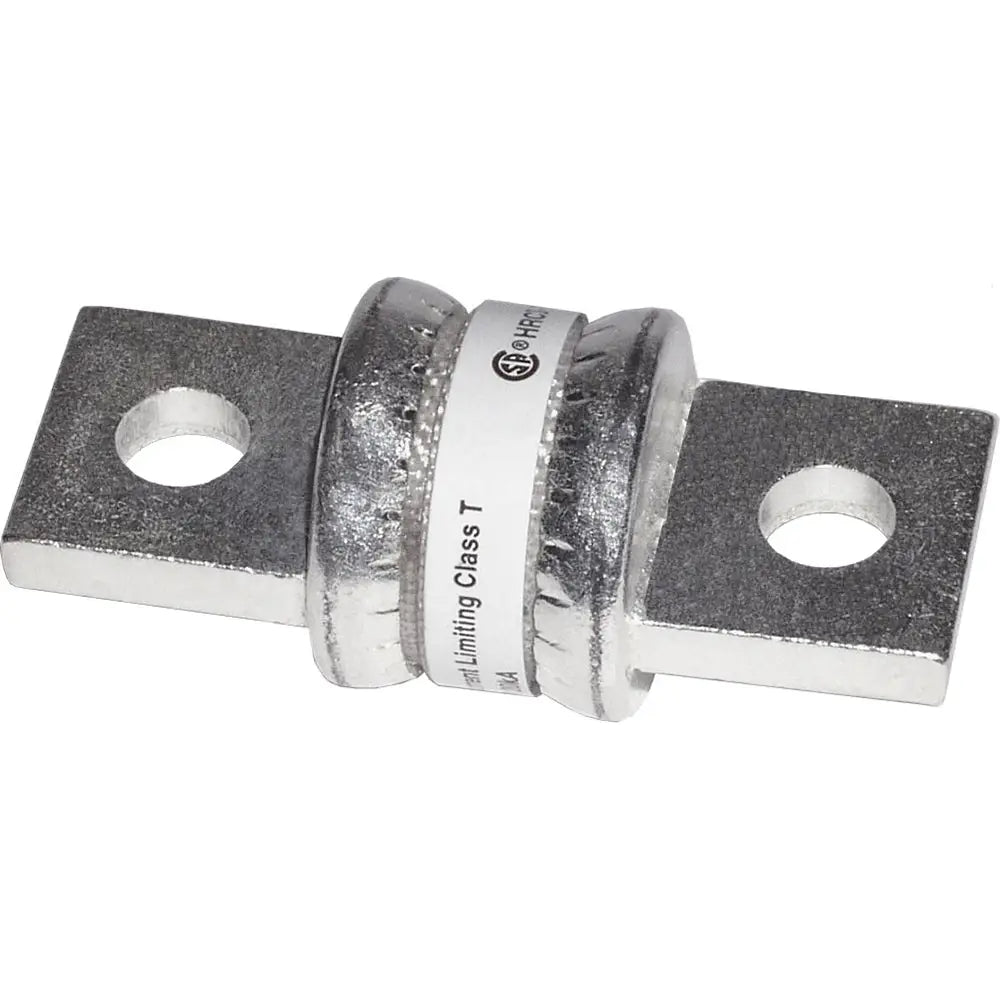

Class T fuse for high-current DC circuit protection, the Blue Sea Systems 5115 provides 175A protection with an extremely fast short-circuit response for marine electrical systems, inverters, and large battery banks.

This stud-mount A3T fuse is rated at 175A and provides 20,000A interrupt capacity for demanding DC protection applications. It supports systems up to 125V DC and is intended for use with compatible Class T fuse blocks. The fuse is UL listed to standard 248-15 and DC tested to UL standard 198L.

  • 175A Class T configuration provides dedicated high-current circuit protection.
  • Extremely fast short-circuit response helps limit fault current quickly.
  • 20,000A interrupt capacity supports high-current battery and inverter applications.
  • 125V DC maximum voltage rating suits specified marine and renewable-energy power systems.
  • Compatible with the Blue Sea Systems 5007100 Class T fuse block for 110–200A fuses.
  • UL listed to 248-15 and DC tested to 198L for recognized electrical standards.
This Class T fuse is designed for installation in a compatible fuse block as part of a high-current DC distribution system. Typical applications include main battery protection, inverter circuits, inverter/chargers, and marine electrical power systems where rapid fault interruption is required. Its 175A rating allows the fuse to protect appropriately sized conductors and connected equipment when selected according to the system design. The 20,000A interrupt capacity is suited to battery banks capable of delivering substantial short-circuit current, including systems using lithium-ion or TPPL batteries. Use the 5007100 fuse block for the 110–200A Class T size range; larger Class T fuse blocks are not interchangeable. The fuse itself is not ignition protected and should be installed according to applicable marine electrical and safety requirements.
Brand Blue Sea Systems
Model 5115
Product Type Fuse
Fuse Type Class T / A3T
Amperage 175A
Maximum Voltage 125V DC
Interrupt Capacity 20,000A
SKU CWR-19022
UPC 632085051150
Box Dimensions 2"H x 4"W x 6"L
Box Weight 0.2 lb
  • What is this fuse used for?
    It provides high-current DC circuit protection for applications such as marine battery systems, inverters, inverter/chargers, and other power-distribution equipment.
  • What is the fuse rating?
    This model is rated at 175A with a maximum voltage rating of 125V DC.
  • Which fuse block fits this fuse?
    It fits the Blue Sea Systems 5007100 Class T fuse block designed for 110–200A fuses.
  • What is the interrupt capacity?
    The fuse has a 20,000A interrupt capacity for high-current short-circuit protection.
  • Is the fuse ignition protected?
    The fuse itself is not ignition protected; use it only in an installation that meets the applicable marine electrical and safety requirements.
