Blue Sea 5116 200A Class T Fuse [5116]

Authorized Dealer

In Stock

Regular price: $64.79
Regular price: ~~$82.99~~
Sale price: $64.79

Shipping calculated at checkout.

SKU: CWR-19023 UPC: 632085051167

Free Shipping Orders over $149.99

Secure Checkout SSL Encrypted

Manufacturer Warranty Full Warranty Included

Questions? Call, text or email us.

925-222-LOTZ (5689) · shop@lotzoutdoors.com

Class T fuse protection for marine, RV, and automotive battery systems, with a 200A rating and extremely fast short-circuit response.

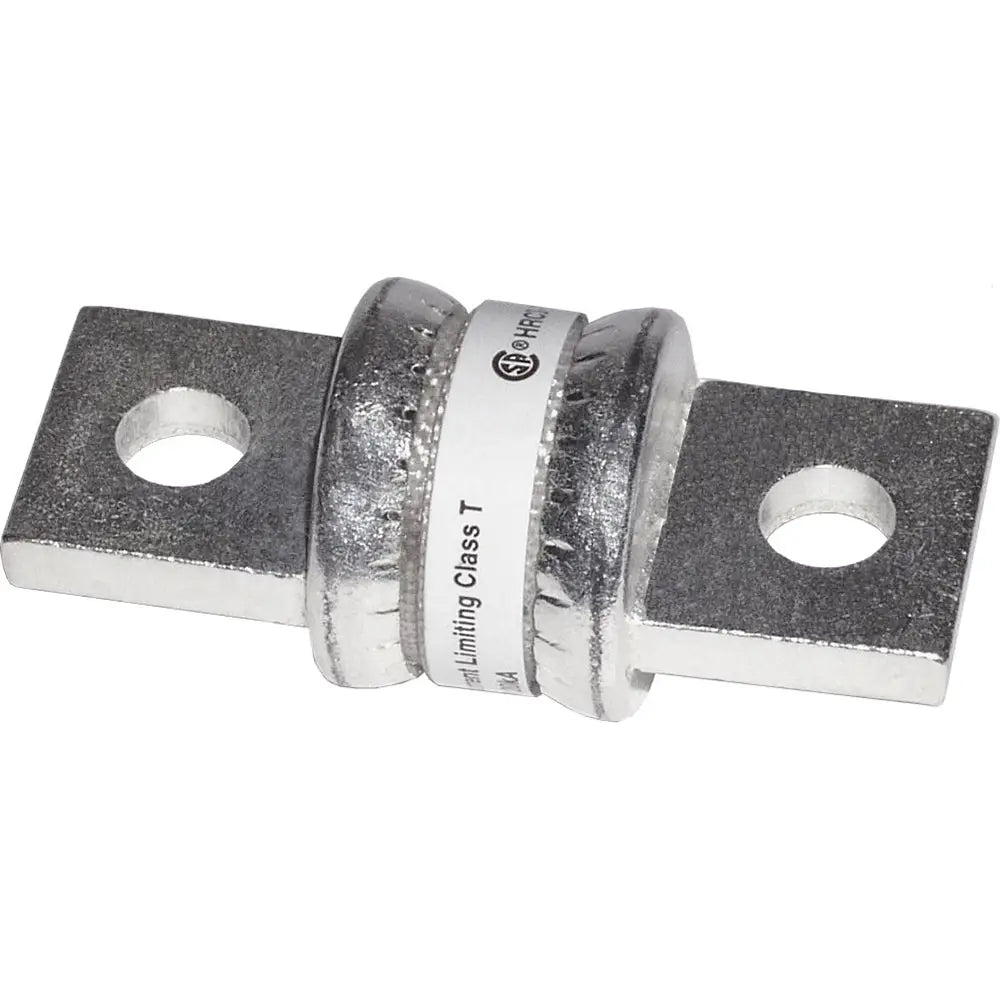

The Blue Sea Systems 5116 is a 200A Class T fuse for protecting high-current DC circuits such as inverter and battery-bank connections. Its 20,000A interrupt capacity helps interrupt severe short-circuit currents, while the Class T design provides rapid circuit protection. The fuse is UL listed to standard 248-15 and DC tested to UL standard 198L.

200A amperage rating: Provides circuit protection for compatible high-current DC applications.
Class T construction: Supports rapid interruption of short-circuit conditions.
20,000A interrupt capacity: Handles high available fault current in large battery-bank systems.
UL listed to 248-15: Meets the stated fuse standard for added installation confidence.
DC tested to UL 198L: Validates the fuse for its specified direct-current testing standard.
Compatible fuse block: The 110A–200A size range is designed for use with the Blue Sea Systems 5007100 Class T fuse block.

Use this Class T fuse to protect high-current DC circuits in boats, RVs, automotive electrical systems, and battery installations. It is suited to applications where a fast response to short circuits is needed, including inverter and large battery-bank connections.

The 200A rating supports appropriately sized circuits, while the 20,000A interrupt capacity is intended for systems capable of delivering substantial fault current. Install it in a compatible Class T fuse holder and select the holder, conductor size, and circuit rating according to the equipment manufacturer's requirements.

This fuse is the 110A–200A Class T size and is compatible with the Blue Sea Systems 5007100 fuse block. Verify system voltage, wiring, available fault current, and fuse-holder compatibility before installation.

Brand	Blue Sea Systems
Model	5116
Product Type	Class T fuse
Amperage	200A
Interrupt Capacity	20,000A AIC
Certifications/Testing	UL listed to 248-15; DC tested to UL 198L
SKU	CWR-19023
UPC	632085051167
Box Dimensions	1" H x 2" W x 5" L
Box Weight	0.65 lb

What is the amperage of this fuse?
It is rated at 200 amps.
What type of fuse is the Blue Sea 5116?
It is a Class T fuse for high-current DC circuit protection.
Which fuse block fits this fuse?
It is designed for the Blue Sea Systems 5007100 Class T fuse block for 110A–200A fuses.
What is its interrupt capacity?
The stated interrupt capacity is 20,000 amps.
Where can it be used?
Typical applications include compatible marine, RV, automotive, inverter, and battery-bank electrical systems.
